2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description
8903LG30V04

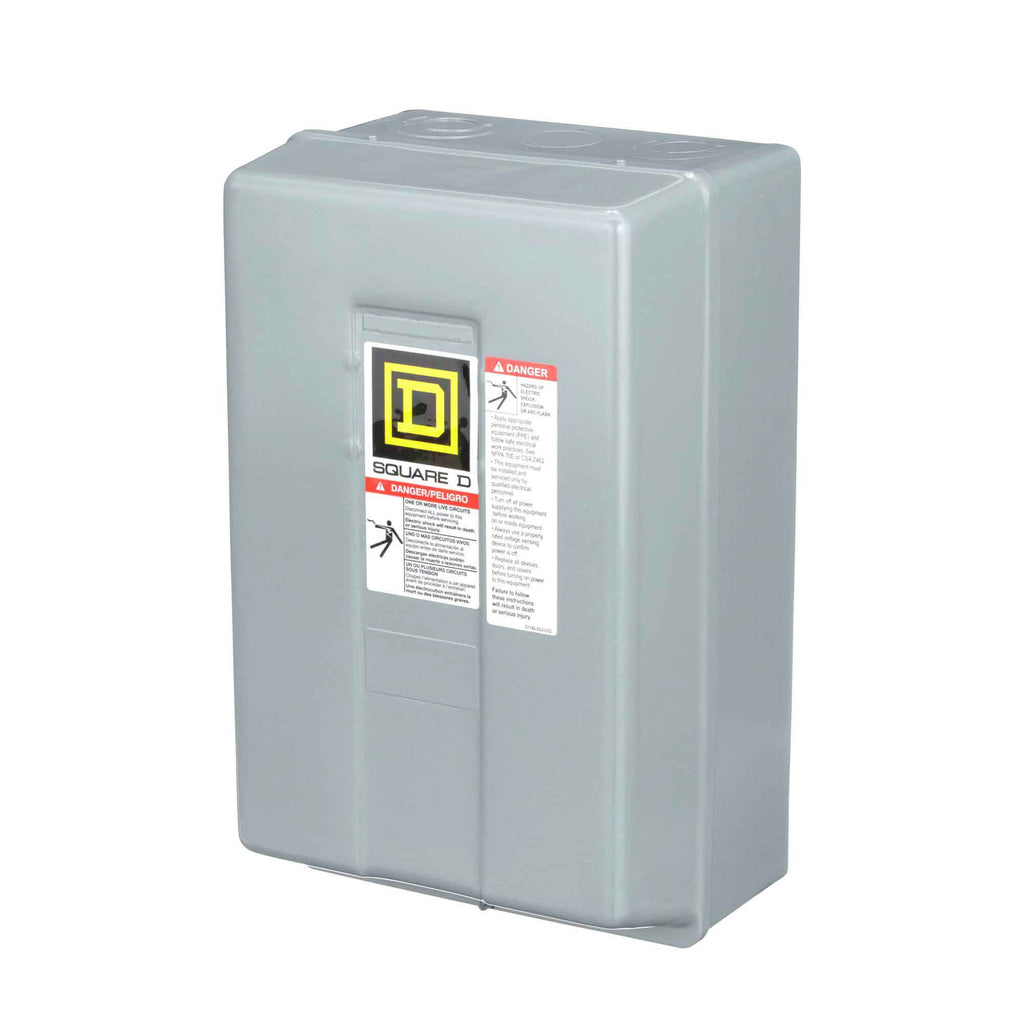

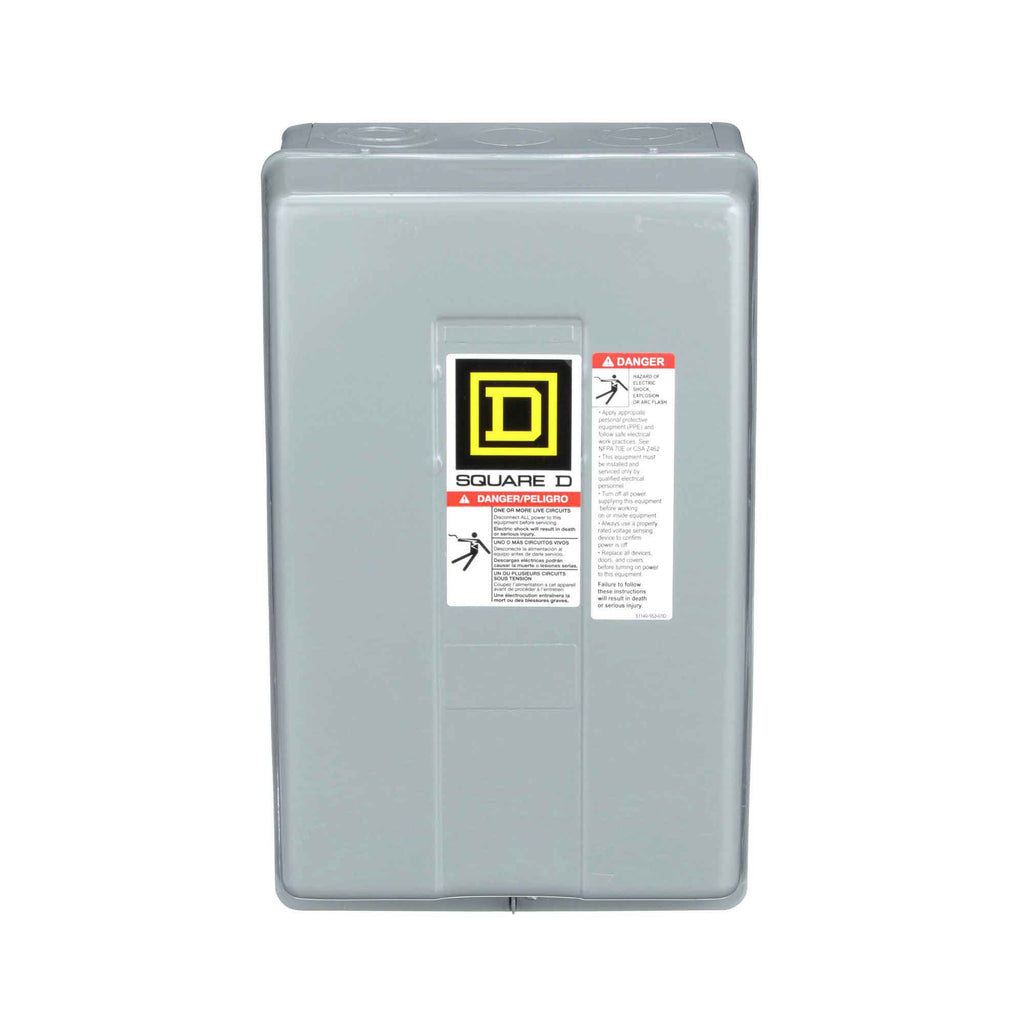

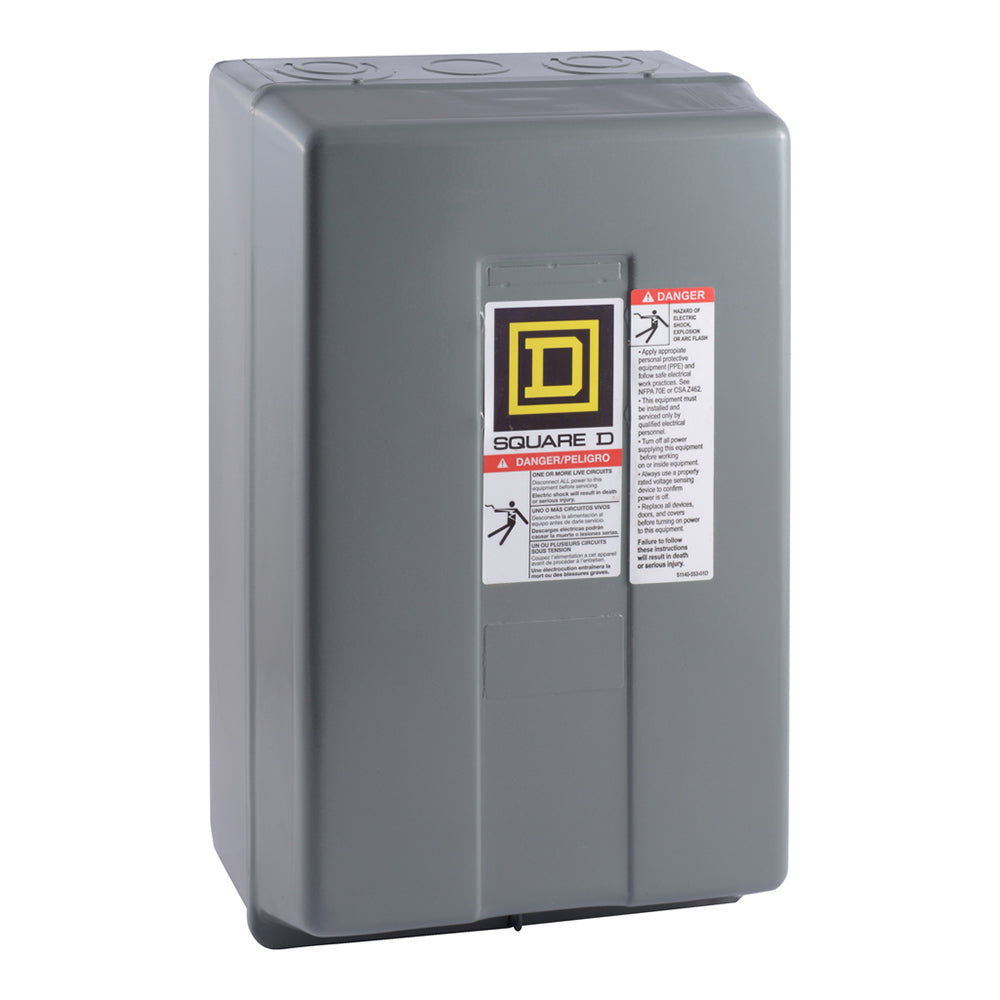

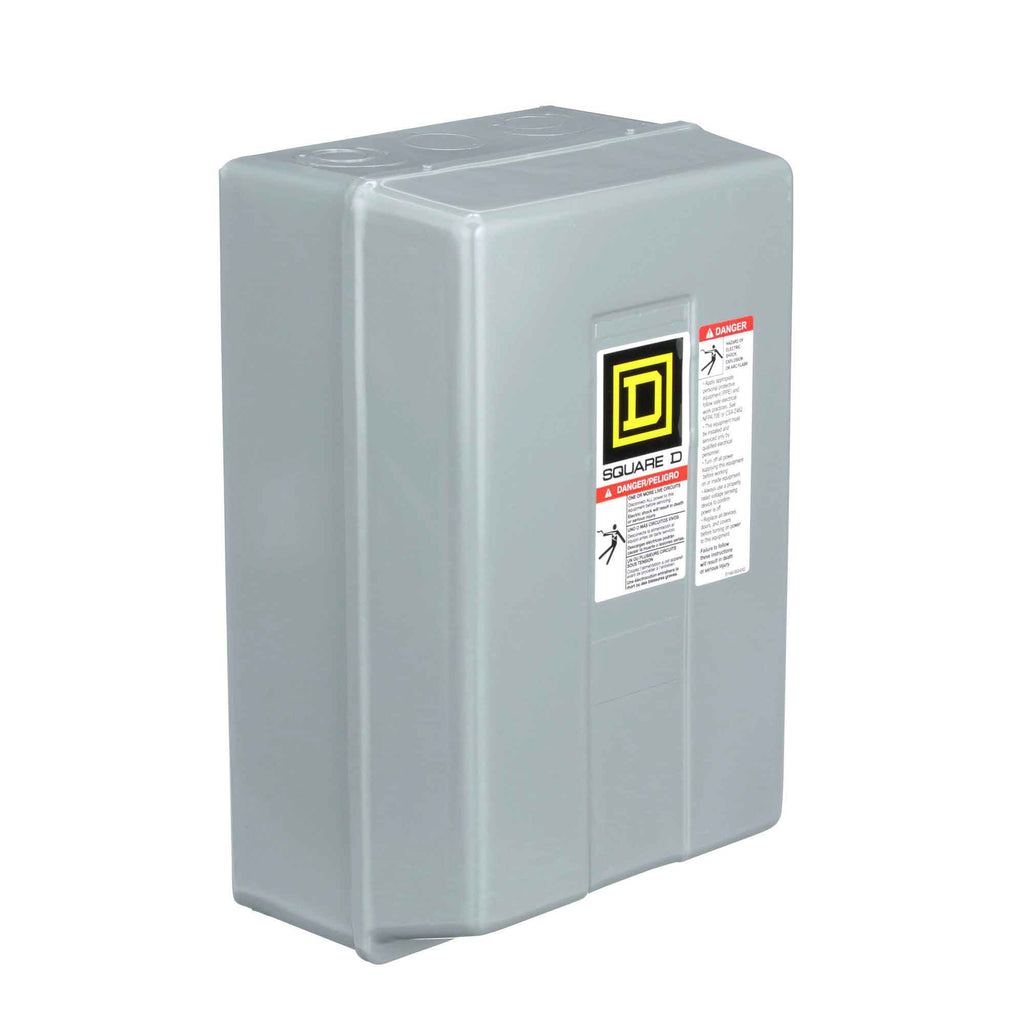

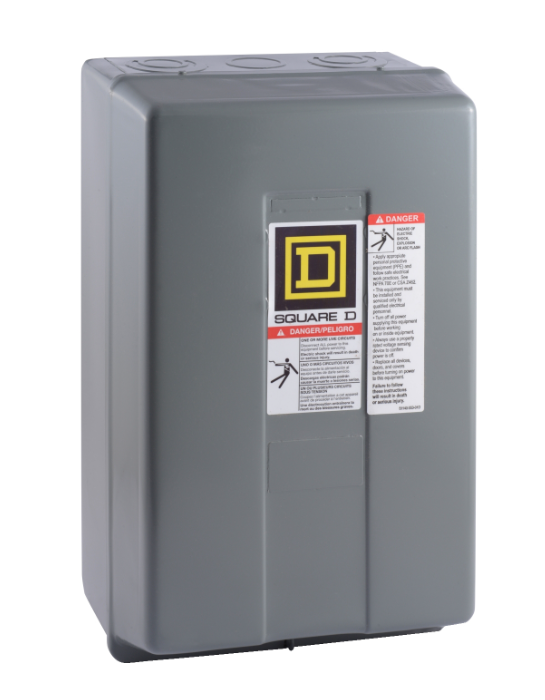

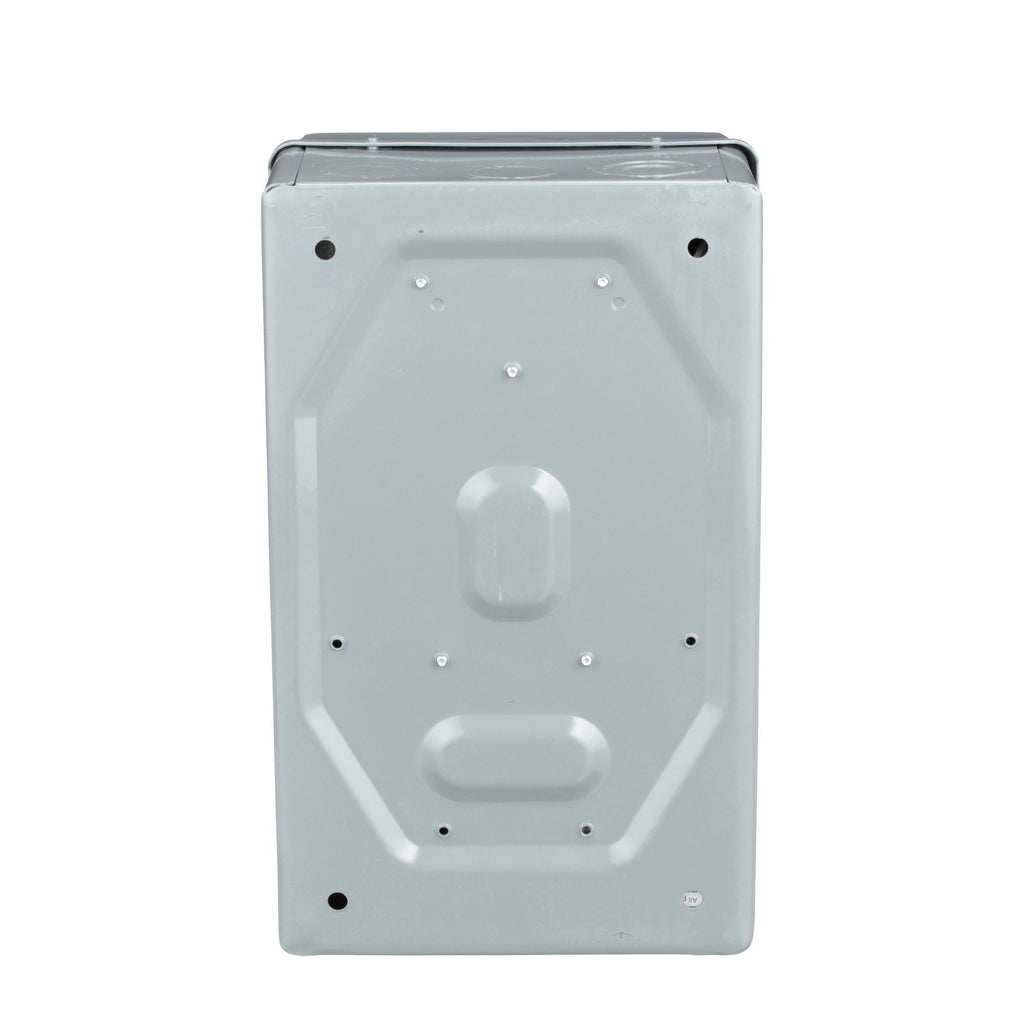

8903LG30V04 is a 3-pole, 30 amp, 600 volt electrically held lighting contactor from Square D, designed for motor control applications.This Class 8903, Type L contactor features a 277V coil and is enclosed in a NEMA 1 rated enclosure. It supports 3-phase operation with screw clamp terminals for secure electrical connections. The contactor is suitable for lighting control circuits requiring reliable switching of fluorescent and tungsten loads.
- Manufacturer: Square D
- Part Number: 8903LG30V04
- Amperage: 30A
- Voltage: 600VAC
- Coil Voltage: 277VAC
- Poles: 3
- Type: Electrically Held Lighting Contactor
- Enclosure: NEMA 1
- Phase: 3-Phase
- Connection: Screw Clamp Terminals
- Family: Class 8903
- Dimensions: Approx. 6.02 x 7.8 x 12.68 inches
Additional Information
This Electrically Held Multipole Lighting Contactor includes a 277 VAC coil.
Specifications
- Part Number: 8903LG30V04
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8903
- Type : L
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 277
- Full Load Amps : 30
- Frequency : 60 Hz
Product Data
- UPC : 785901625667
- GTIN : 00785901625667
- Country of Origin : Mexico
- Dimensions : 12.7 in (322 mm) x 7.8 in (198 mm) x 6.02 in (153 mm) (Height x Width x Depth)
- Weight : 9.689
- Certification : UL Listed; CSA
