Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description
8903LG30V02

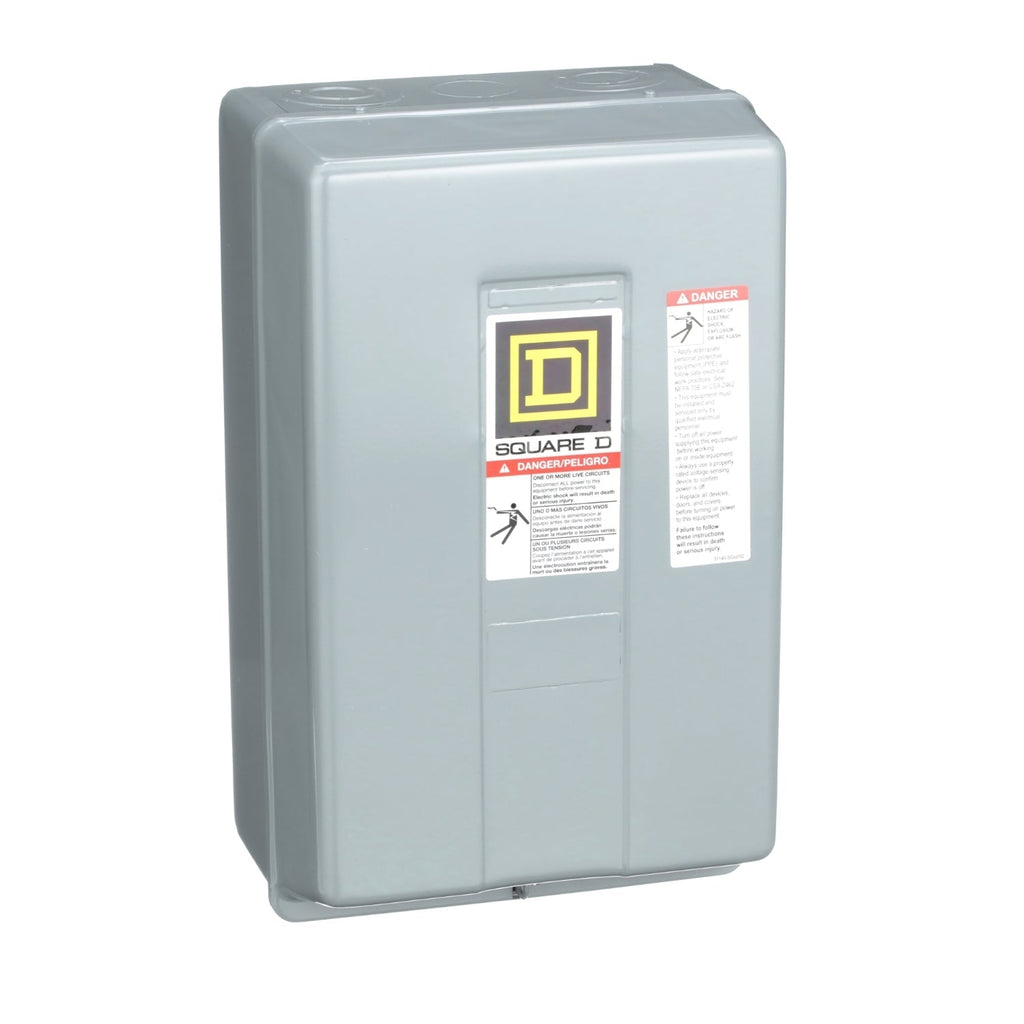

8903LG30V02 is a Square D electrically held lighting contactor designed for motor control applications.This 3-pole contactor features a 30 Amp current rating and supports up to 600 VAC voltage. It operates with a 110/120 VAC coil at 50/60 Hz and is housed in a NEMA 1 enclosure. The contactor has 3 normally open (3 NO) contacts, making it suitable for lighting and motor control circuits requiring reliable switching.
- Manufacturer: Square D
- Part Number: 8903LG30V02
- Amperage: 30 Amps
- Voltage Rating: 600 VAC
- Coil Voltage: 110/120 VAC, 50/60 Hz
- Poles: 3
- Contact Configuration: 3 Normally Open (3 NO)
- Mounting Type: NEMA 1 Enclosure
- Type: Electrically Held Lighting Contactor
- Frame/Series: 8903
Additional Information
This Electrically Held Multipole Lighting Contactor includes a 110 VAC coil.
Specifications
- Part Number: 8903LG30V02
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8903
- Type : L
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 120
- Full Load Amps : 30
- Coil Voltage Minimum : 110
- Frequency : 50/60 Hz
Product Data
- UPC : 785901851301
- GTIN : 00785901851301
- Country of Origin : Mexico
- Dimensions : 12.7 in (322 mm) x 7.8 in (198 mm) x 6.02 in (153 mm) (Height x Width x Depth)
- Weight : 9.57
- Certification : UL Listed; CSA
