Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description
8903LG20V04

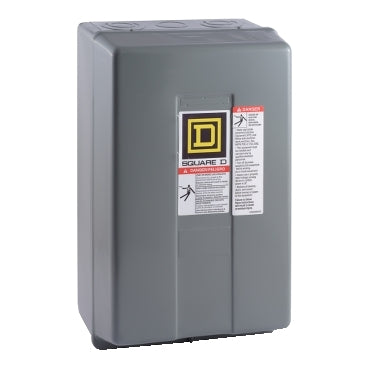

8903LG20V04 is a Square D 2-pole, electrically held lighting contactor designed for reliable switching of lighting loads.
This contactor features a rugged NEMA 1 painted sheet steel enclosure, field-convertible contacts, and an interchangeable 277VAC 60Hz coil. It is UL Listed and CSA Certified, with a design optimized for easy maintenance and long service life.
-
Key Specifications
- Amperage: 30A fluorescent, 20A tungsten
- Voltage: 600VAC
- Poles: 2
- Mounting Type: Surface
- Interrupt Rating: Not specified
- Series/Frame: 8903L
- Trip Unit: Not applicable
- Certifications: UL Listed, CSA Certified
- Coil Voltage: 277VAC 60Hz (interchangeable, other voltages available)
- Enclosure: NEMA 1
- Contact Configuration: 2NO (field convertible to NC)
- Dimensions: 12.69" H x 7.81" W x 6.03" D
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Additional Information
This Electrically Held Multipole Lighting Contactor includes a 277 VAC coil.
Specifications
- Part Number: 8903LG20V04
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8903
- Type : L
- Voltage : 600
- Amperage : 30
- Phase : 1
- Poles : 2
- Coil Voltage Maximum : 277
- Full Load Amps : 30
- Frequency : 60 Hz
Product Data
- UPC : 785901625643
- GTIN : 00785901625643
- Country of Origin : Mexico
- Dimensions : 12.7 in (322 mm) x 7.8 in (198 mm) x 6.02 in (153 mm) (Height x Width x Depth)
- Weight : 9.709
- Certification : UL Listed; CSA
