8903LG1200V04 - Schneider Electric / Square D 12-Pole Lighting Contactor 30 A 600 V Coil 277 V AC

8903LG1200V04

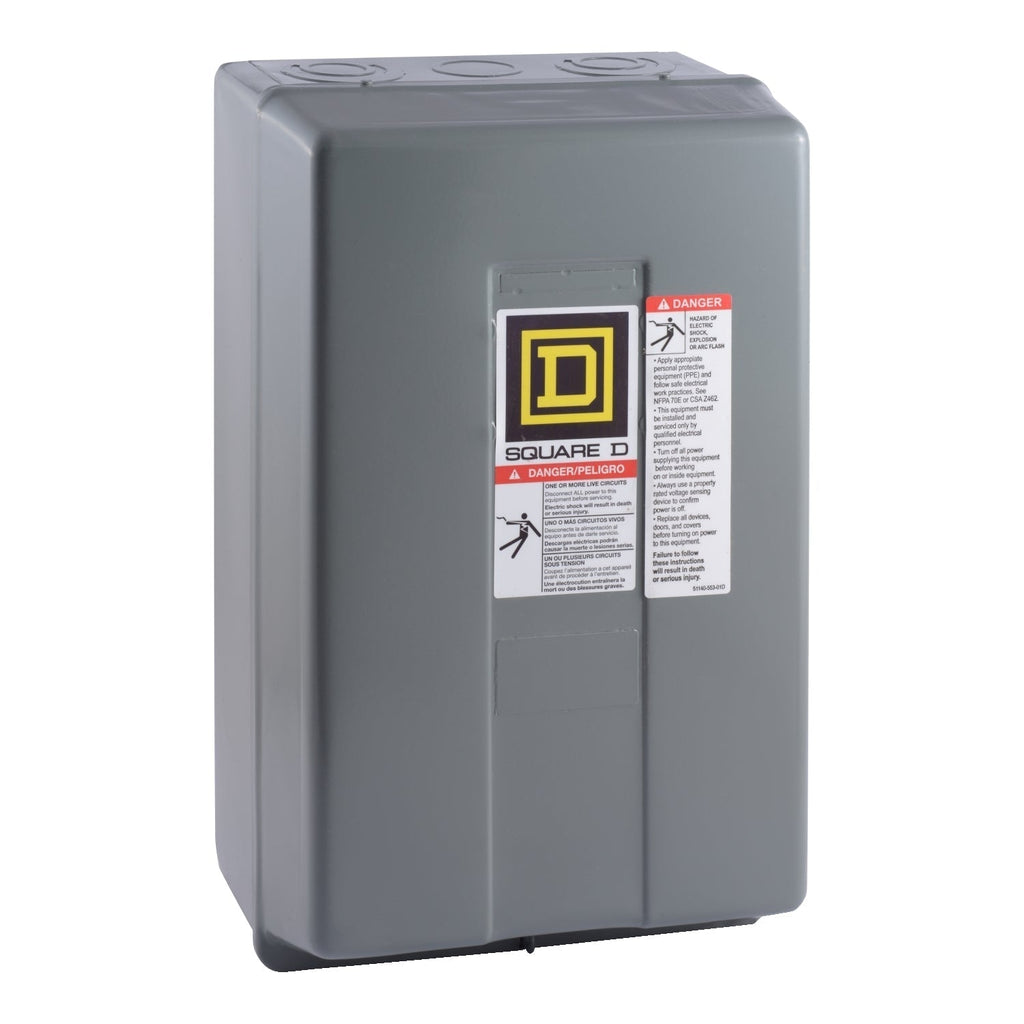

8903LG1200V04 is a multipole lighting contactor from the Schneider Electric (Square D) 8903L series, electrically held, rated for 12 poles (12 NO contacts) and a nominal load of 30 A with a maximum switching voltage of 600 V. The unit includes a 277 V AC coil (60 Hz) and is housed in a NEMA 1 painted steel enclosure. This contactor is designed for lighting control applications, allowing conversion of the contacts from normally-open to normally-closed in the field, and supports up to 30 A for fluorescent loads and 20 A for tungsten loads. The model is UL listed and CSA certified.

• Part Number: 8903LG1200V04
• Manufacturer: Schneider Electric (Square D)
• Series / Family: 8903L multipole lighting contactors (Type L)
• Contact Configuration: 12 poles (12 NO)
• Current Rating: 30 A fluorescent / 20 A tungsten
• Voltage Rating (Switching): Up to 600 V AC
• Coil Voltage: 277 V AC, 60 Hz
• Enclosure Type: NEMA 1 painted sheet steel
• Mounting / Terminals: Surface mount; screw-clamp terminals
• Dimensions (HxWxD): ~12.68 in (322 mm) x 7.80 in (198 mm) x 6.02 in (153 mm)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Electrically Held Multipole Lighting Contactor includes a 277 VAC coil.

Specifications

• Part Number: 8903LG1200V04
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8903
• Type : L
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 12
• Coil Voltage Maximum : 277
• Full Load Amps : 30
• Frequency : 60 Hz

Product Data

• UPC : 785901116837
• GTIN : 00785901116837
• Country of Origin : Mexico
• Dimensions : 12.7 in (322 mm) x 7.8 in (198 mm) x 6.02 in (153 mm) (Height x Width x Depth)
• Weight : 11.18
• Certification : UL Listed; CSA
