Description
8903LG1000V04

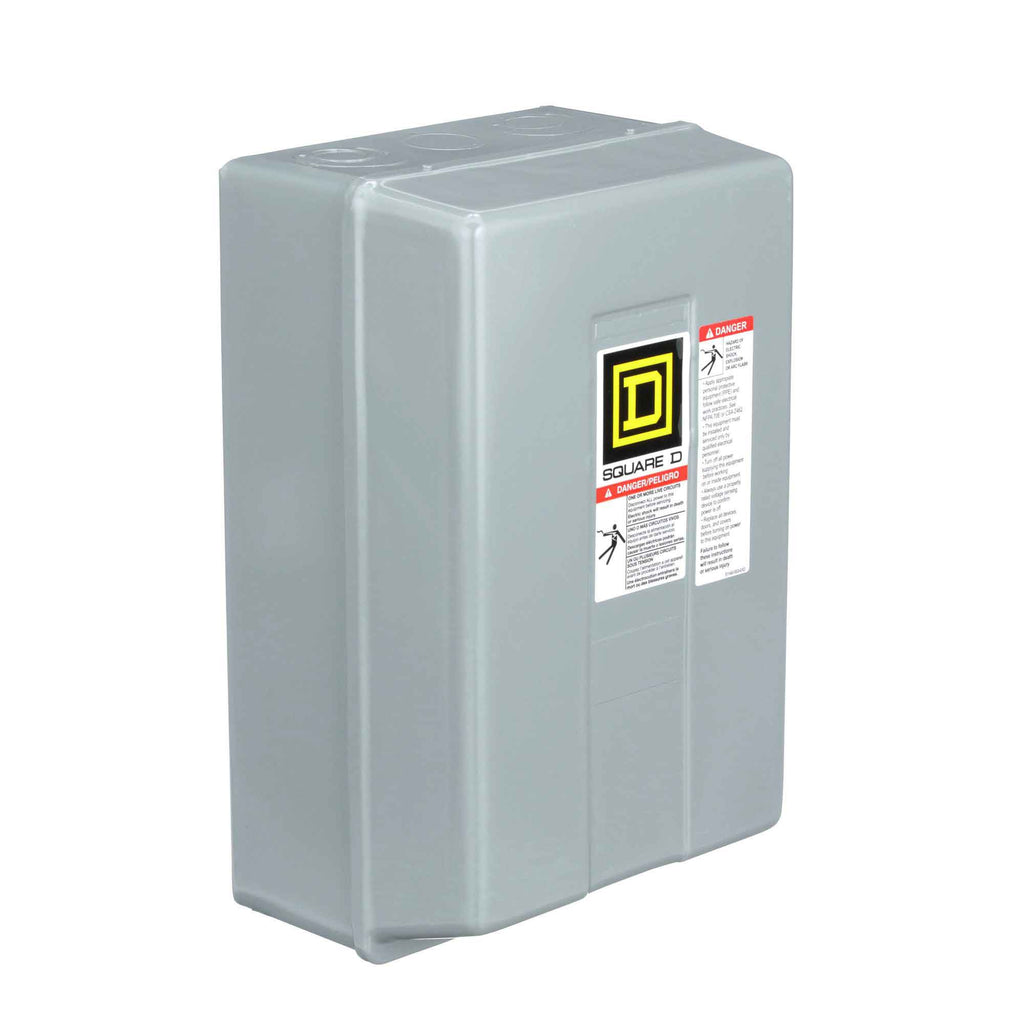

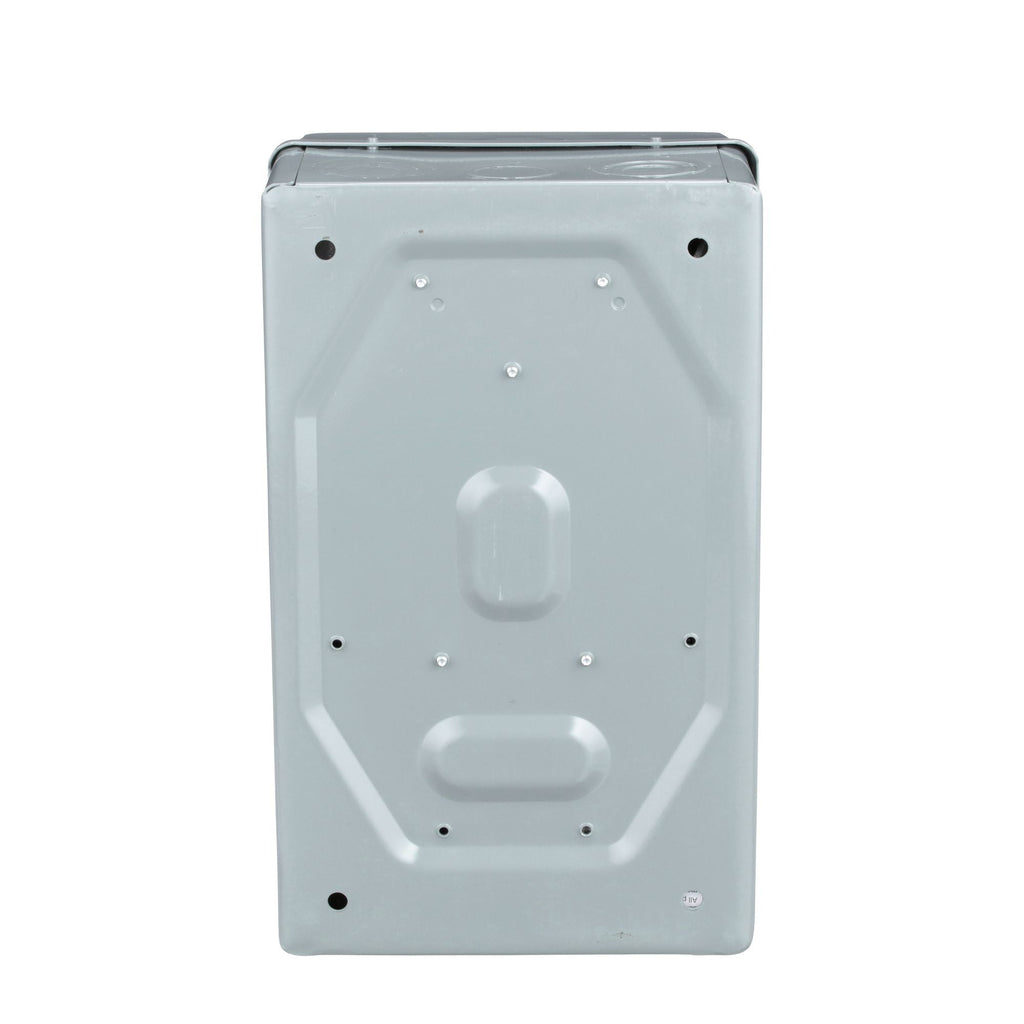

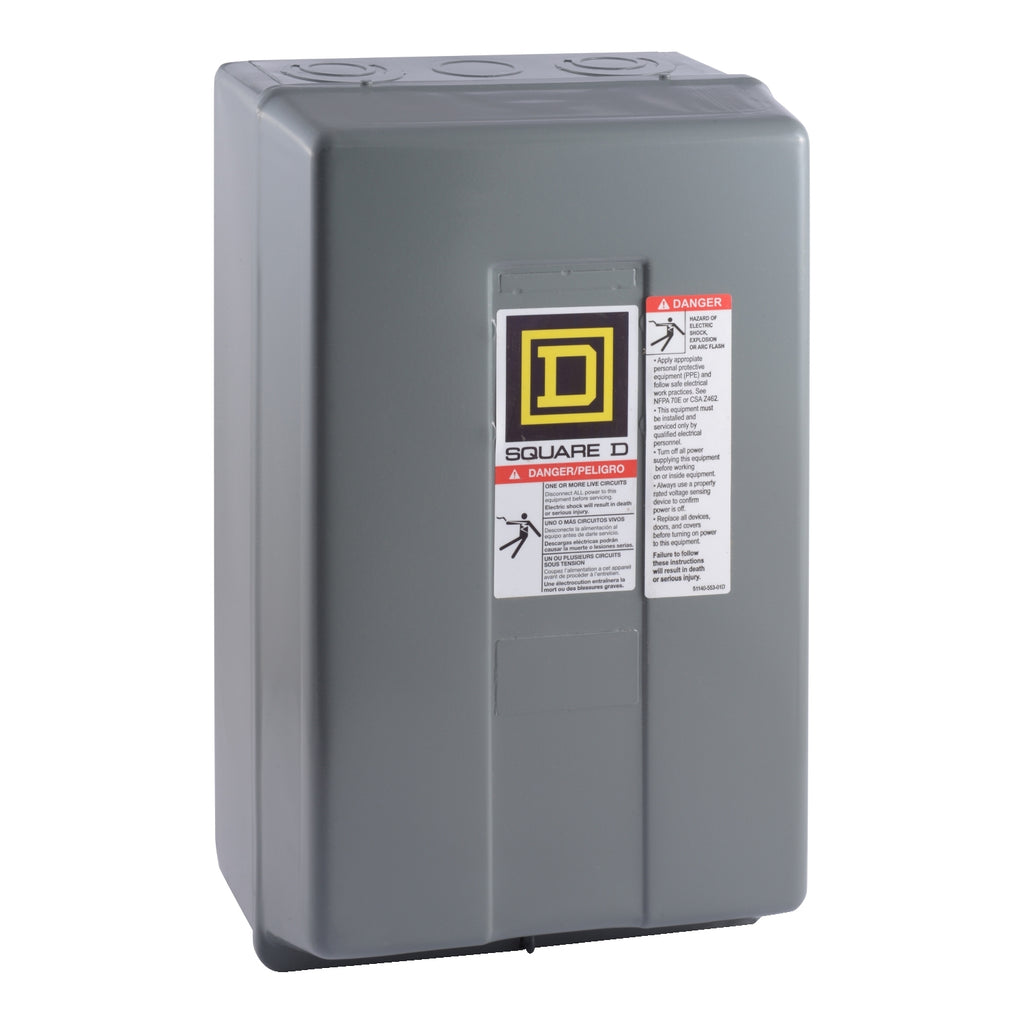

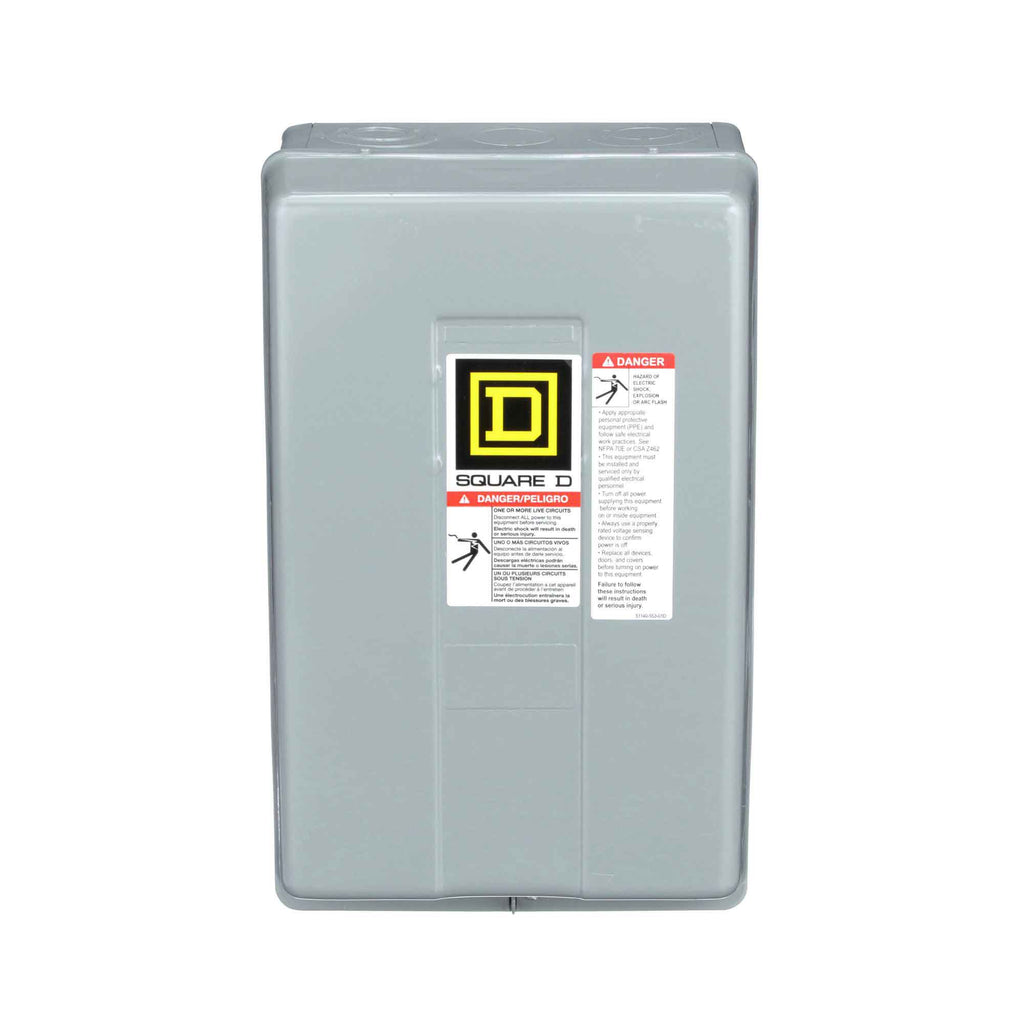

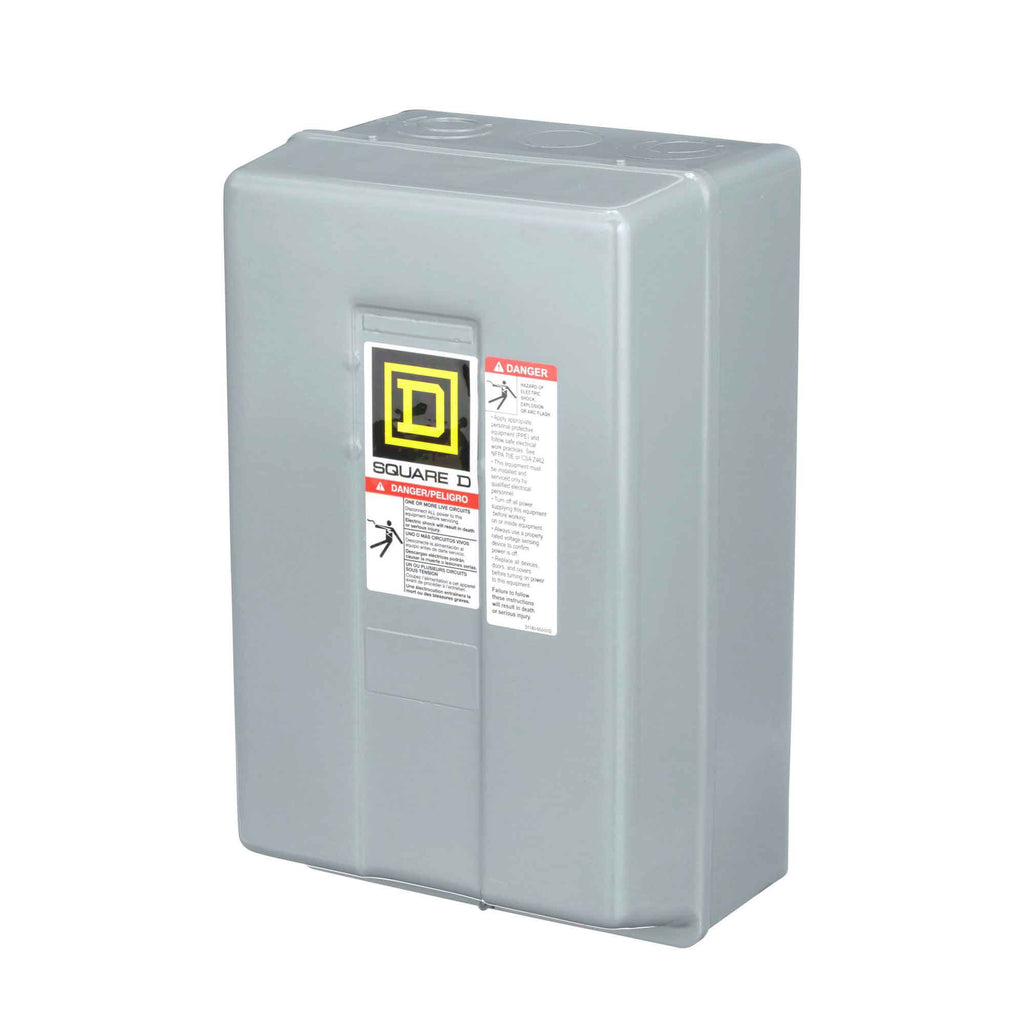

8903LG1000V04 is a Square D Class 8903 electrically held lighting contactor designed for reliable multipole control in commercial and industrial applications. This contactor features a 10-pole configuration, 30A current rating, and 600VAC voltage rating, making it suitable for demanding lighting and motor control circuits. The 8903LG1000V04 includes a 277VAC coil at 60Hz, screw clamp connections, and a NEMA 1 enclosure constructed from painted sheet steel. It is electrically held, UL and CSA listed, and RoHS compliant for safety and environmental standards. The contactor is ideal for use in lighting control panels and other applications requiring robust, multipole switching.
- Part Number: 8903LG1000V04
- Manufacturer: Square D
- Series/Frame: 8903L
- Amperage: 30A
- Voltage: 600VAC
- Poles: 10
- Coil Voltage: 277VAC at 60Hz
- Mounting Type: Screw Clamp
- Enclosure: NEMA 1, Painted Sheet Steel
- Contact Configuration: 8 NO
- Certifications: UL, CSA, RoHS
- Application: Lighting Control
Additional Information
This Electrically Held Multipole Lighting Contactor includes a 277 VAC coil.
Specifications
- Part Number: 8903LG1000V04
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8903
- Type : L
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 10
- Coil Voltage Maximum : 277
- Full Load Amps : 30
- Frequency : 60 Hz
Product Data
- UPC : 785901485988
- GTIN : 00785901485988
- Country of Origin : Mexico
- Dimensions : 12.7 in (322 mm) x 7.8 in (198 mm) x 6.02 in (153 mm) (Height x Width x Depth)
- Weight : 10.829
- Certification : UL Listed; CSA
