Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Control Part And Accessory
Description
8903L1L

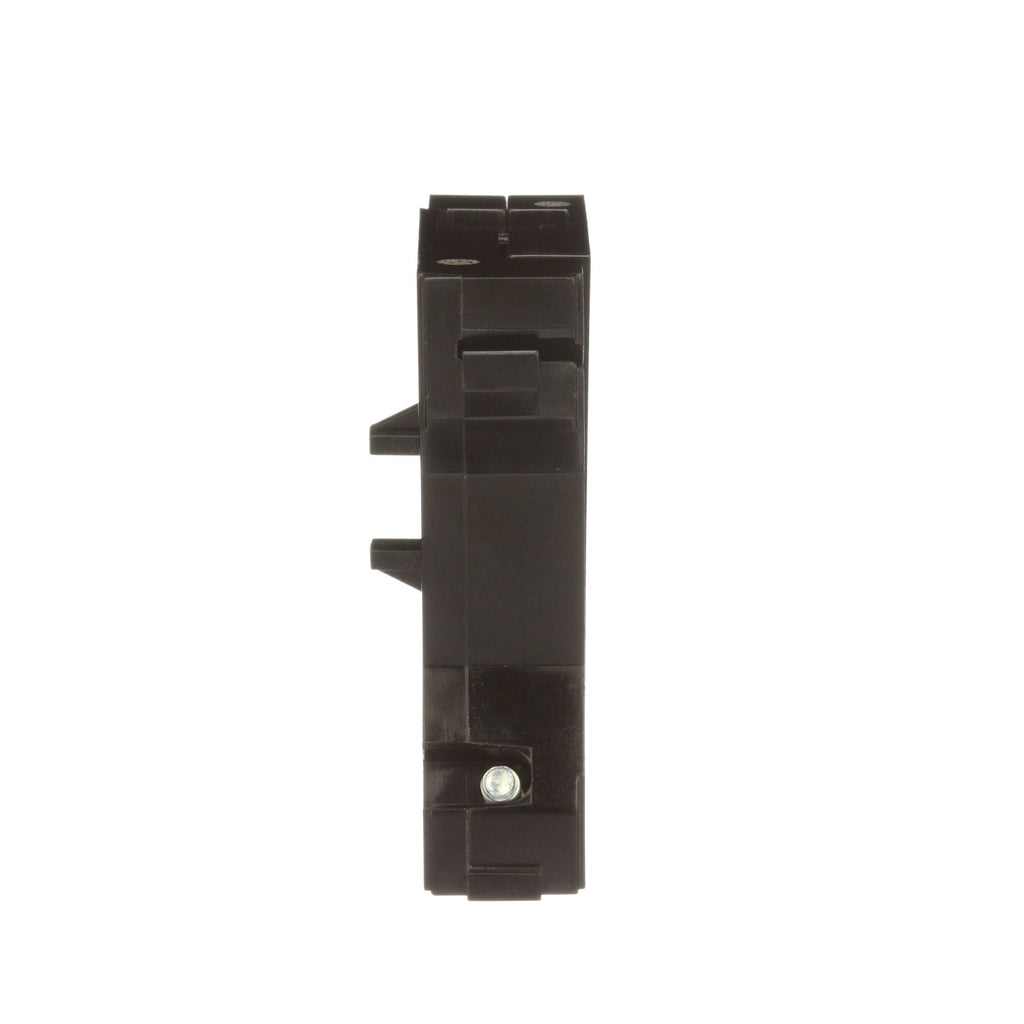

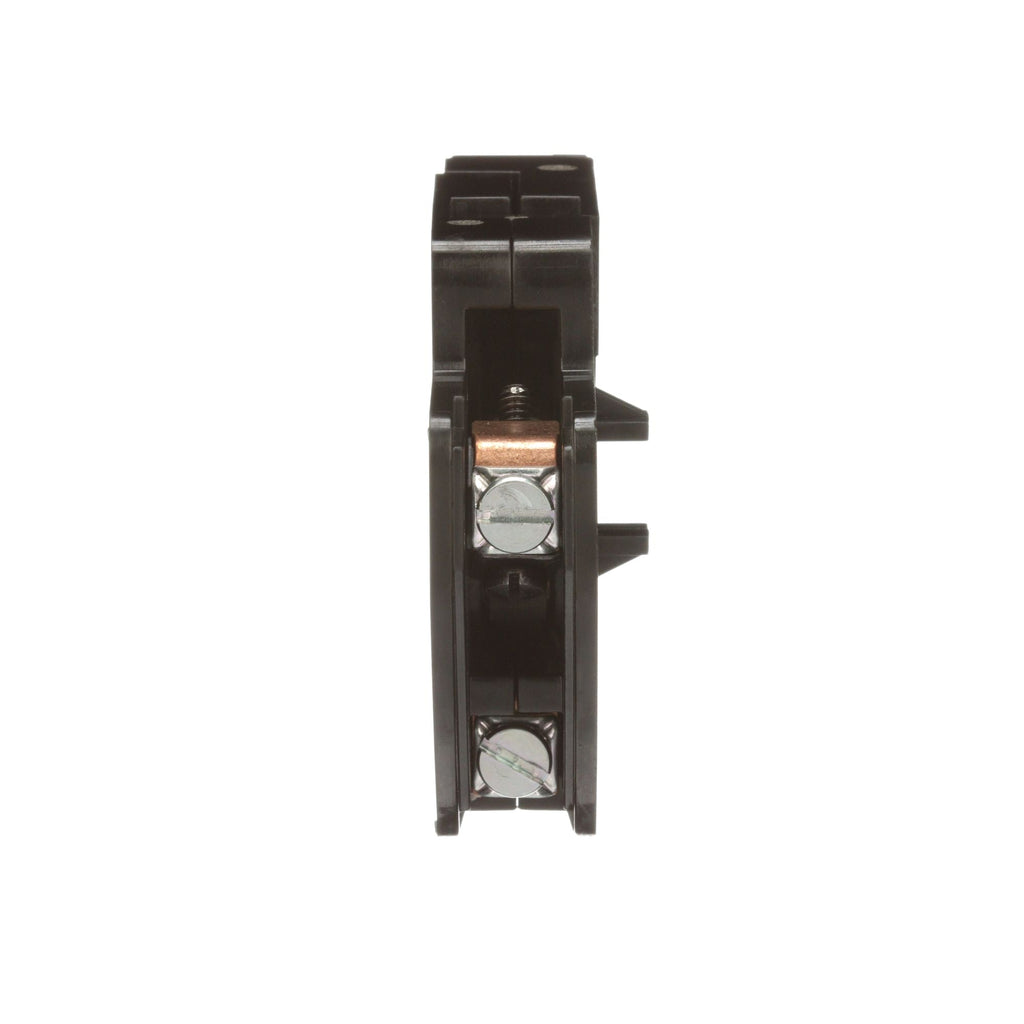

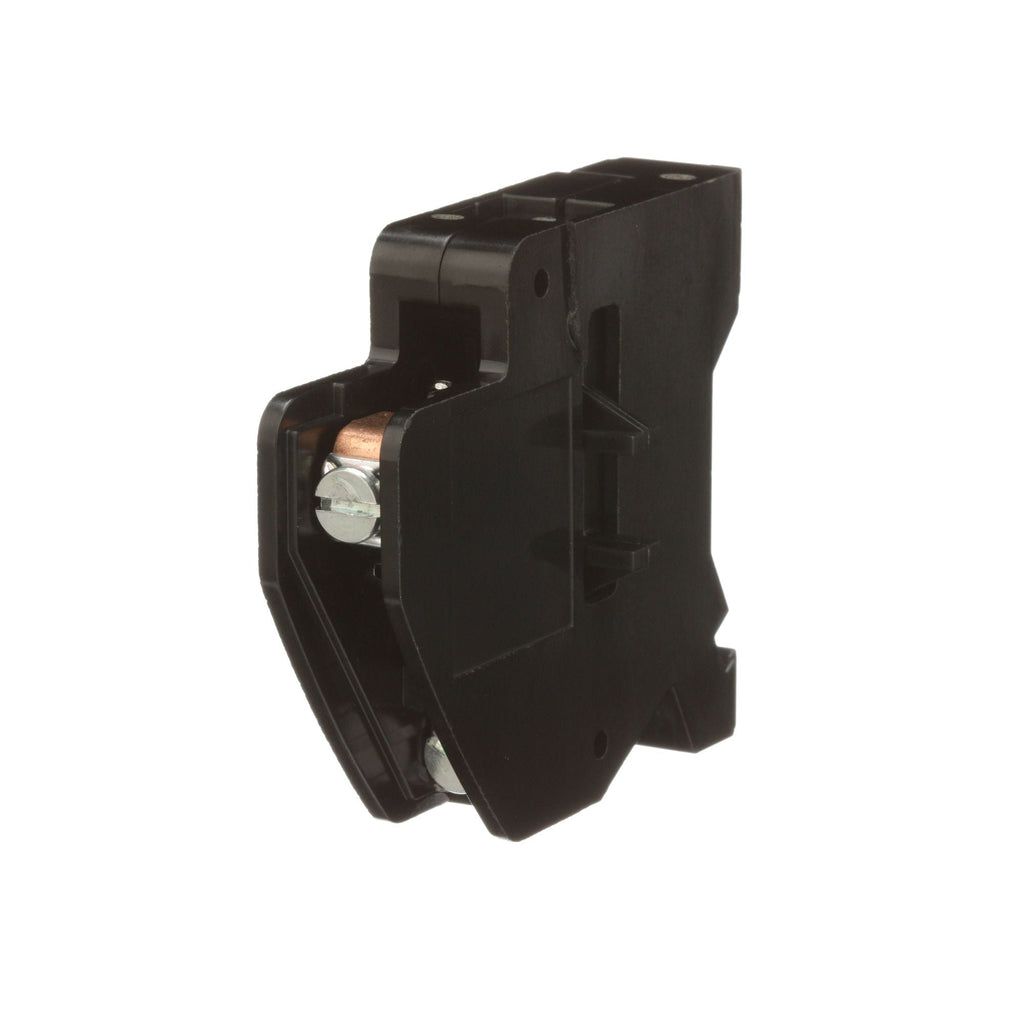

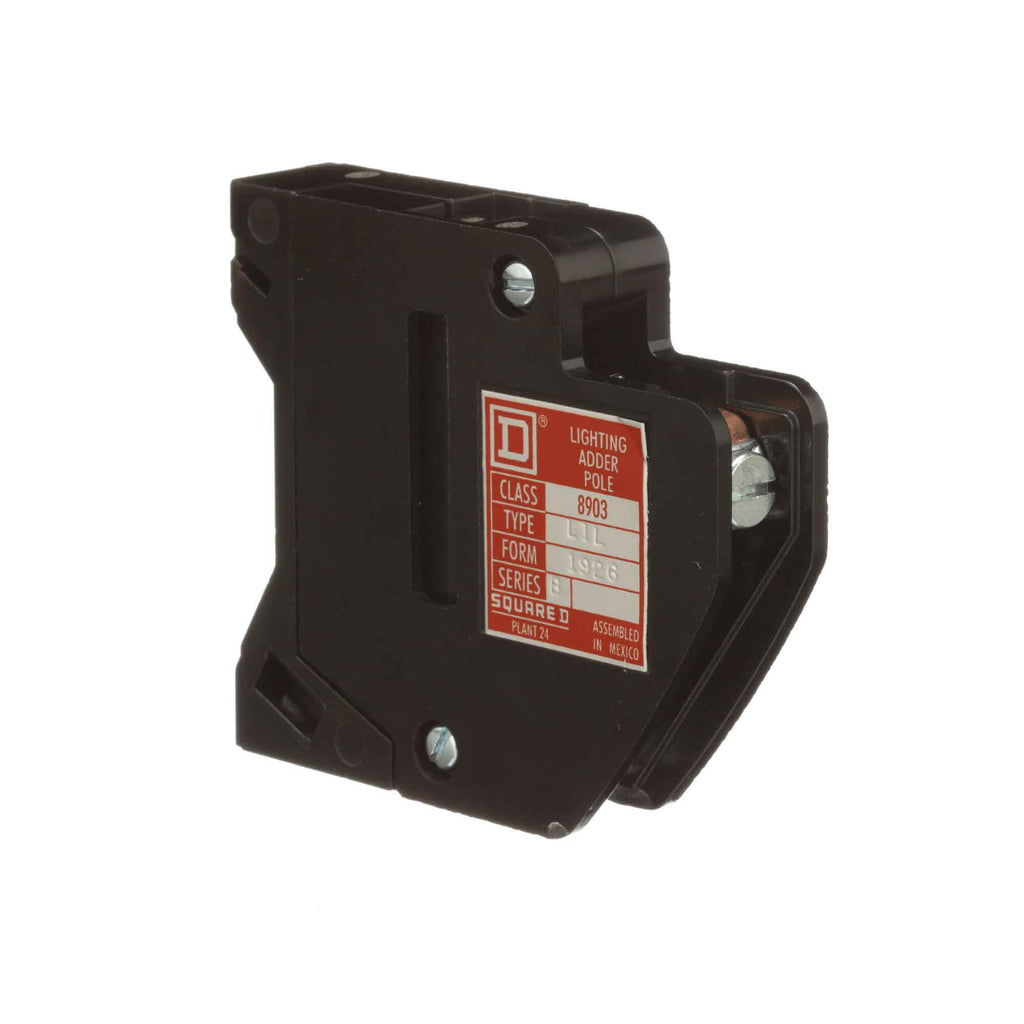

8903L1L is a Square D Class 8903 motor control accessory designed as a 1-pole lighting contactor power pole with a 30 amp rating.This power pole features a single normally open contact capable of switching up to 30A fluorescent and 20A tungsten lighting loads at 600 volts maximum. It is a left side mount, screw clamp type designed to add power poles to 6-pole or greater lighting contactors in the Class 8903 series.
- Manufacturer: Square D
- Part Number: 8903L1L
- Category: Motor Control Accessory
- Type: Lighting Contactor Power Pole Adder
- Number of Poles: 1 Pole
- Contact Rating: 30A at 600V max
- Contact Configuration: Normally Open (field convertible)
- Mounting Type: Left Side Mount
- Connection Type: Screw Clamp
- Series/Frame: Class 8903
- Application: Lighting Loads (fluorescent and tungsten)
- Operating Temperature: Up to 40°C
Specifications
- Part Number: 8903L1L
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Control Part And Accessory
- Section : Misc. Kit
- Family : Class 8903
- Type : 8903
Product Data
- UPC : 785901620228
- GTIN : 00785901620228
- Dimensions : 3.03 in (77 mm) x 2.5 in (64 mm) x 1.0 in (25 mm) (Height x Width x Depth)
- Weight : 0.31
- Certification : UL listed - CSA
