8736SDO2V02S - Square D NEMA Size 2 Reversing Magnetic Motor Starter, 45A, 600V, 3 Pole, Open, 120V Coil, Melting Alloy Overload, Series 8736

8736SDO2V02S

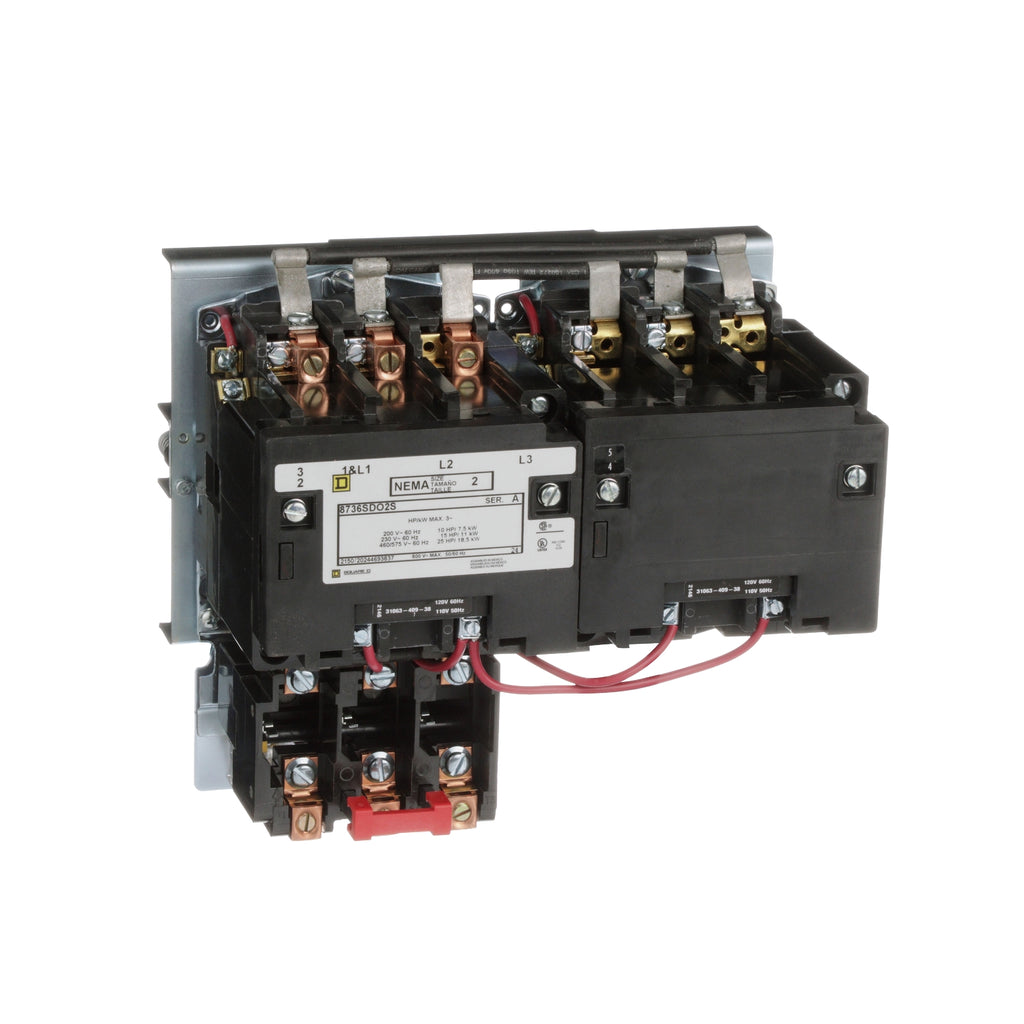

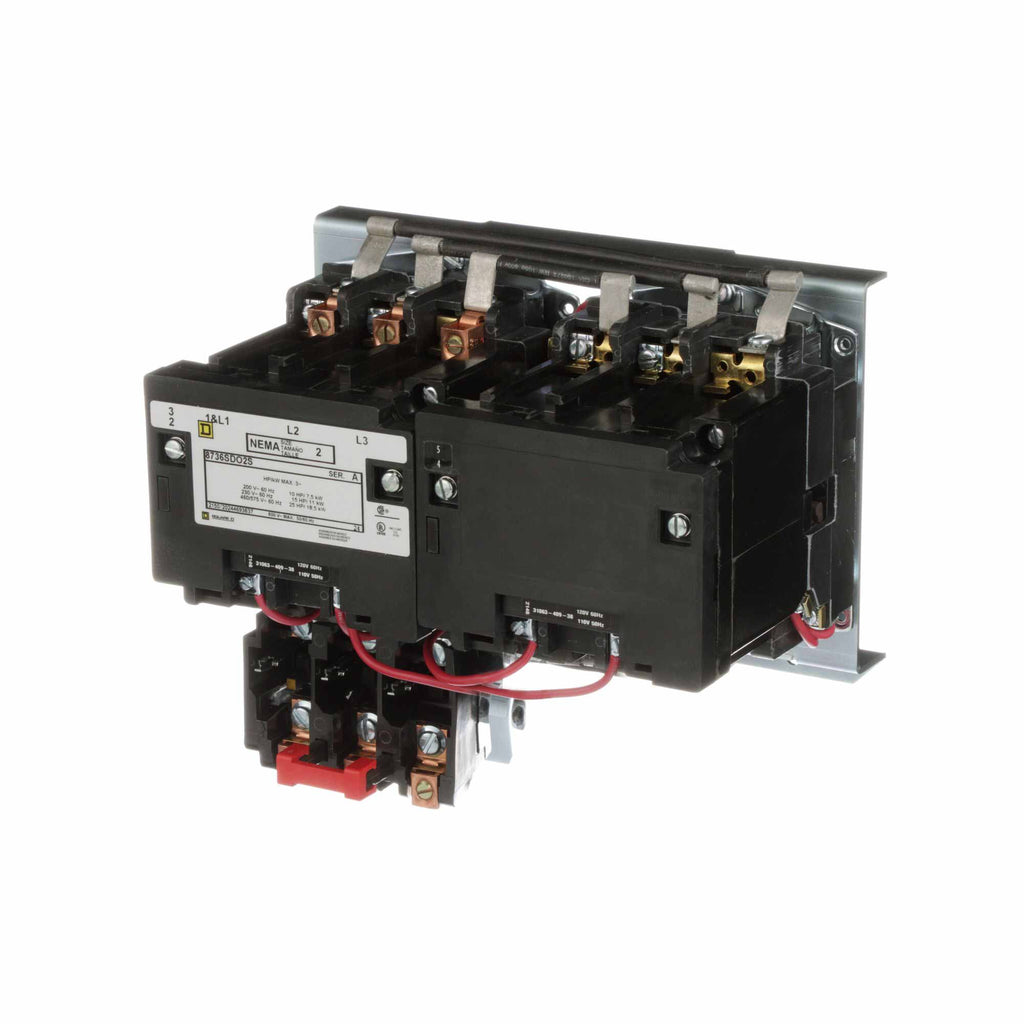

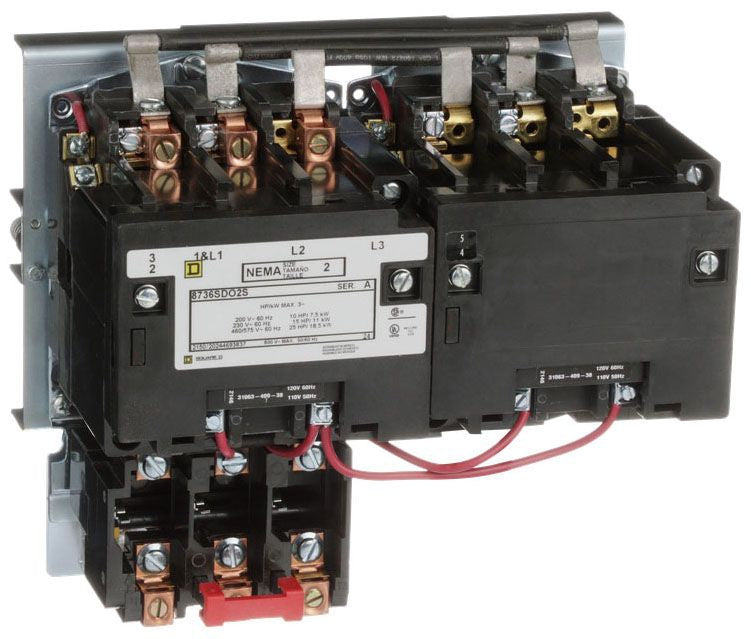

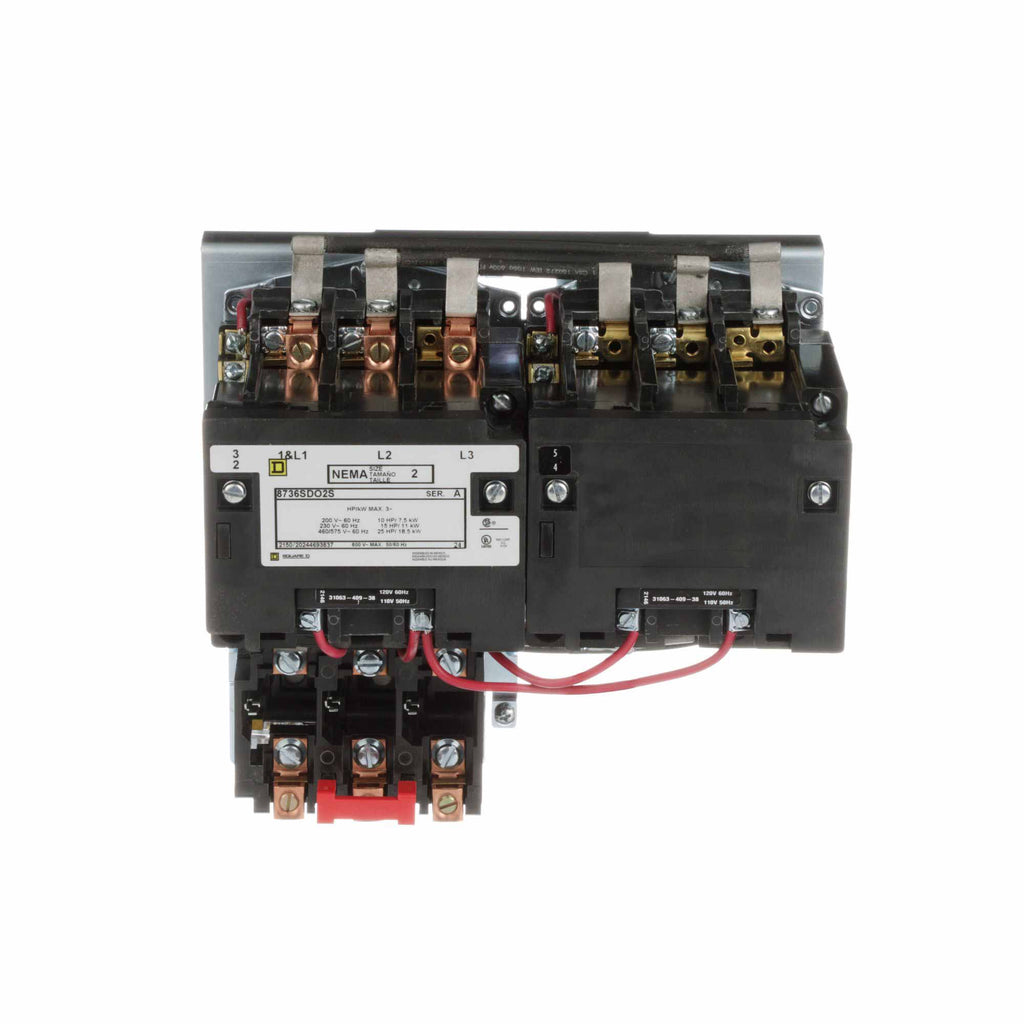

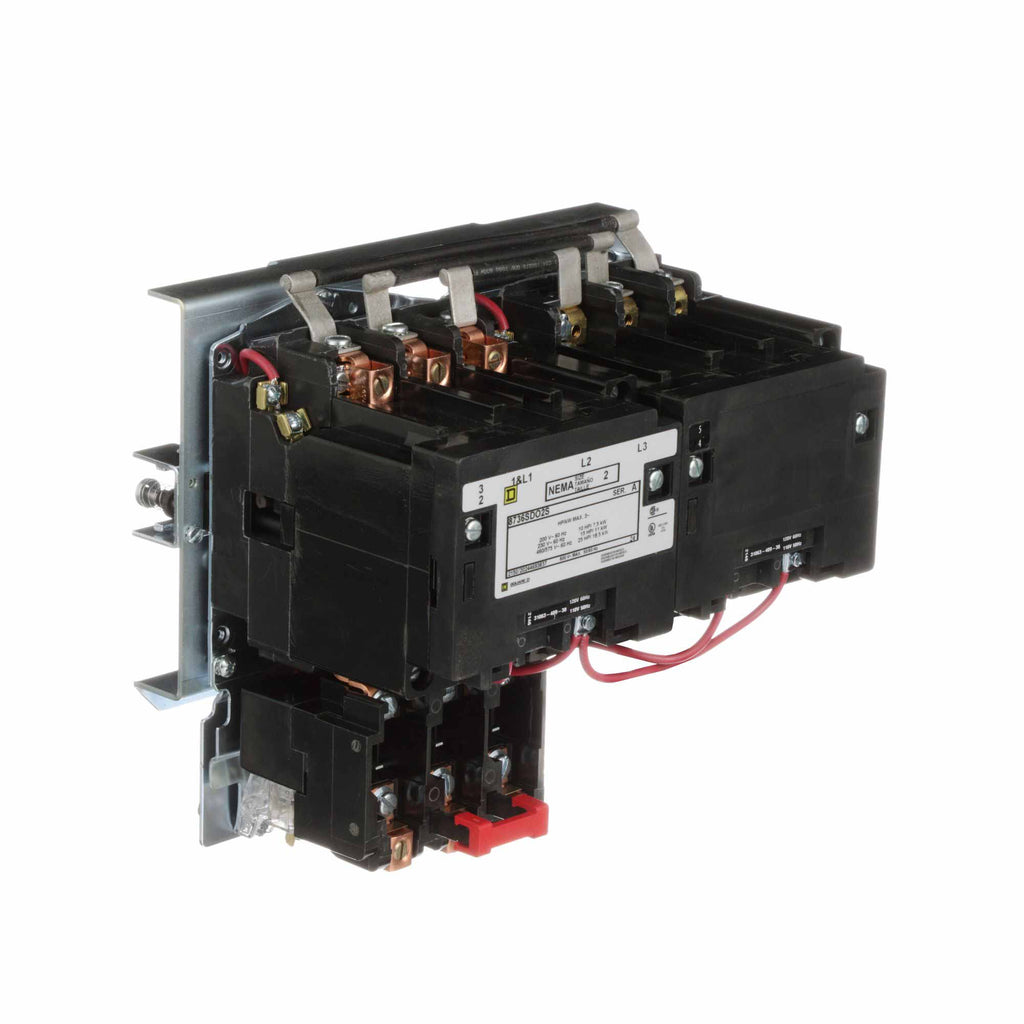

8736SDO2V02S is a Square D NEMA Size 2, 3-pole, open reversing magnetic motor starter designed for robust motor control applications.

This starter features a 45A contact rating, 600V maximum voltage, and a 120V AC coil. It is engineered for three-phase systems and offers reversing capability without auxiliary contacts. The unit includes a melting alloy overload relay for reliable motor protection and is part of the Square D 8736 series. The open-style mounting is suitable for panel or enclosure installation, and the starter is rated for 50/60 Hz operation.

Key Specifications
• Part Number: 8736SDO2V02S
• Manufacturer: Square D
• Amperage: 45A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: Open
• Interrupt Rating: 5 kA at 600V AC (with circuit breaker or fuse)
• Series/Frame: 8736
• Trip Unit: Melting alloy overload
• Certifications: NEMA rated
• Coil Voltage: 120V AC
• Frequency: 50/60 Hz
• Reversing Capability: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8736SDO2V02S
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 8736
• Type : SDO
• Voltage : 600
• Amperage : 45
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 10 hp HP @ 3 Phase - 240V 15 hp HP @ 3 Phase - 480V 25 hp
• Aux Contacts : No Auxiliary Contacts
• Coil Voltage Maximum : 110 VAC
• Coil Voltage Minimum : 110
• Nema Rating : 2
• Nema Starter Size : 2

Product Data

• UPC : 785901884330
• GTIN : 00785901884330
• Country of Origin : Mexico
• Dimensions : 8.50 in (215.90 mm) x 9.00 in (228.60 mm) x 6.03 in (153.16 mm) (Height x Width x Depth)
• Weight : 15.809
• Certification : CSA, UL Listed
