Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Starter
Description

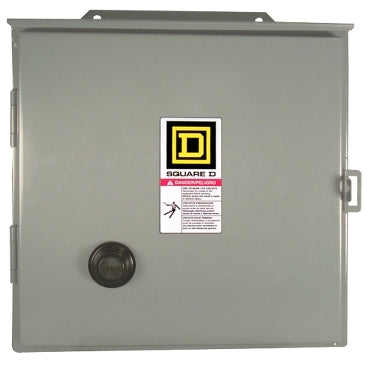

8736SCA4V02S
8736SCA4V02S is a NEMA Type S reversing motor starter designed for reliable control of three-phase AC motors. This Square D starter features a 120VAC coil and is rated for 27 amperes, making it suitable for a wide range of industrial and commercial motor applications. This 3 pole NEMA Size 1 reversing starter is built for horizontal mounting and offers a robust solution for full voltage starting and stopping of AC squirrel cage motors. The unit is equipped with a melting alloy thermal overload relay for enhanced motor protection. It is designed for use in environments requiring NEMA 1 enclosures and is compatible with standard NEMA mounting configurations.
- Part Number: 8736SCA4V02S
- Manufacturer: Square D
- Series: NEMA Type S
- Frame Size: NEMA Size 1
- Amperage: 27A
- Coil Voltage: 120VAC
- Poles: 3
- Phase: 3
- Mounting Type: Horizontal
- Overload Type: Melting Alloy Thermal
- Enclosure Type: NEMA 1
- Motor HP: 10 HP @ 575VAC, 7.5 HP @ 200/230VAC
Specifications
- Part Number: 8736SCA4V02S
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Class 8736
- Type : SCA
- Voltage : 600
- Amperage : 27
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 110
- Nema Rating : 1
- Enclosure : 12
Product Data
- UPC : 785901755654
- GTIN : 00785901755654
- Dimensions : 13.75 in (349.25 mm) x 11.88 in (301.75 mm) x 7.75 in (196.85 mm) (Height x Width x Depth)
- Weight : 19.61
- Certification : UL, CSA, NEMA
