8736SAO16V02S - Square D 9A 600VAC 3-Pole Reversing Motor Starter NEMA 00 Open Type S

8736SAO16V02S

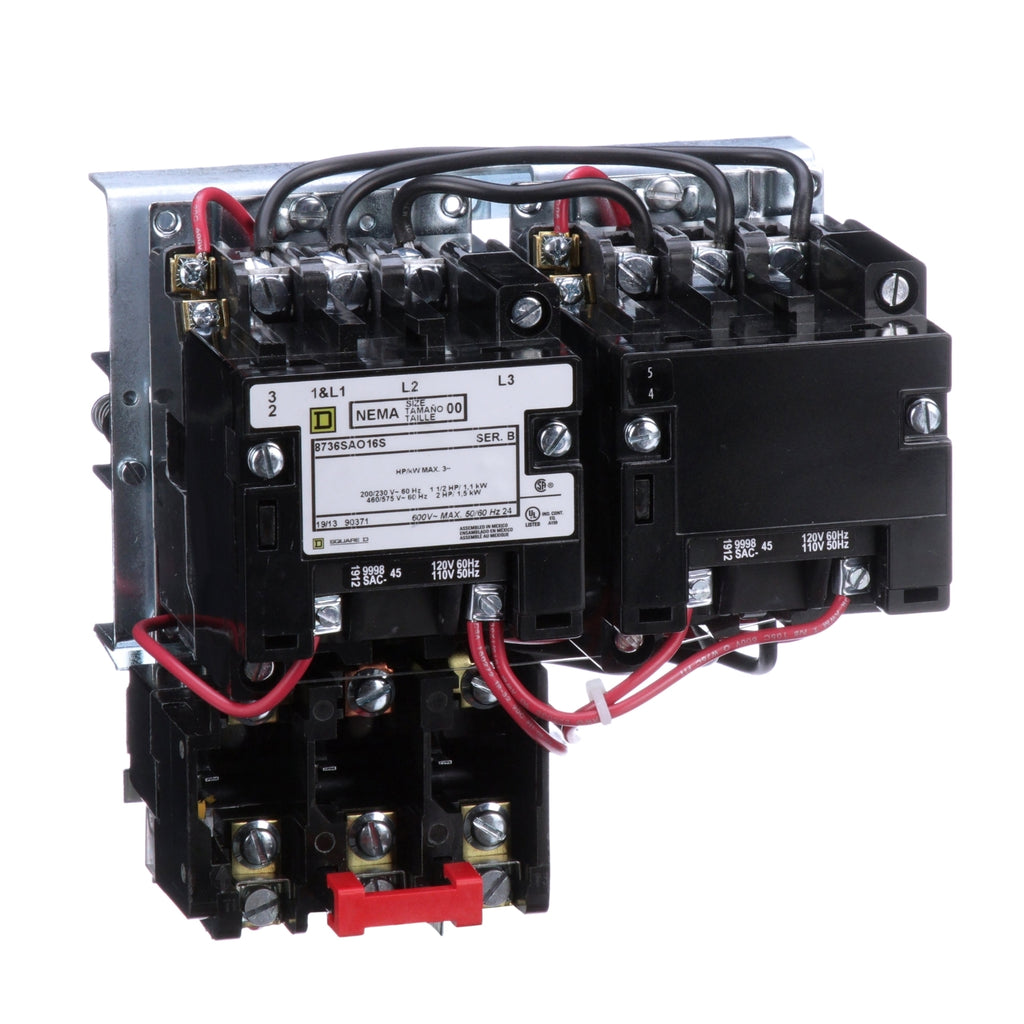

8736SAO16V02S is a Square D reversing motor starter designed for 3-phase motor control with a 9 amp rating and 600 VAC voltage capacity.This NEMA 00 Size S motor starter features a 3-pole configuration with a thermal melting alloy overload relay and a coil voltage of 110/120 VAC at 50/60 Hz. It is an open enclosure type suitable for horizontal mounting and supports motor power ratings up to 2 HP at 460/575 VAC. The starter is UL and CSA certified and manufactured by Schneider Electric.

Key Specifications
• Amperage Rating: 9 A
• Voltage Rating: 600 VAC maximum
• Number of Poles: 3
• Coil Voltage: 110 to 120 VAC, 50/60 Hz
• Enclosure Type: NEMA 00 (Open)
• Mounting Type: Horizontal
• Overload Relay: Thermal Melting Alloy
• Action: Reversing
• Motor Power: 1.5 HP at 200/230 VAC, 2 HP at 460/575 VAC
• Certifications: UL, CSA
• Manufacturer: Schneider Electric (Square D brand)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8736SAO16V02S
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor starter controls
• Voltage : 600 600
• Amperage : 9 Amp
• Coil Voltage Maximum : 110 VAC
• Coil Voltage Minimum : 110
• Nema Starter Size : 0
• Frequency : 60 Hz

Product Data

• UPC : 785901903710
• GTIN : 00785901903710
• Country of Origin : Mexico
• Dimensions : 6.91 in (175.51 mm) x 7.13 in (181.10 mm) x 5.31 in (134.87 mm) (Height x Width x Depth)
• Weight : 4.35
• Certification : CSA, UL Listed
