8702SBO4V06 - Square D NEMA Size 0 Reversing Contactor 18A 3 Pole 480VAC Coil Open Style

8702SBO4V06

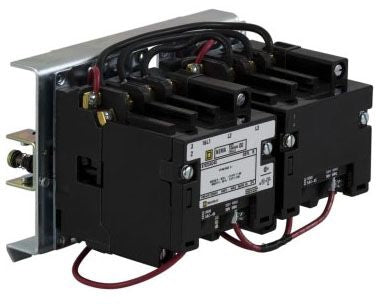

8702SBO4V06 is a Square D NEMA Size 0 reversing magnetic contactor designed for motor control applications.This contactor features a 3-pole configuration with an 18 ampere rating at 600 VAC and supports up to 5 HP at 575 VAC for three-phase motors. It operates with a 440/480 VAC coil at 50/60 Hz and is an open style, horizontal mounting device suitable for reversing motor control. The unit is rated for up to 100 kA interrupt capacity and is part of the Model 6 motor control series.

Key Specifications
• Manufacturer: Square D
• Part Number: 8702SBO4V06
• Type: NEMA Size 0 Reversing Contactor
• Amperage: 18 A at 600 VAC
• Poles: 3 Pole
• Voltage: 440/480 VAC Coil, 3 Phase
• Horsepower: 5 HP at 575 VAC
• Mounting: Horizontal, Open Style
• Interrupt Rating: Up to 100 kA
• Series/Frame: Model 6
• Frequency: 50/60 Hz
• Application: Motor Control, Reversing
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: 8702SBO4V06
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Voltage : 600
• Amperage : 18
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Draw-Out
• Functions : LIGA - Long-Time, Instantaneous and Ground Fault Alarm
• Coil Voltage Maximum : 480
• Coil Voltage Minimum : 440
• Protection : Solid State



Product Data

• UPC : 785901724216
• Country of Origin : Mexico
• Dimensions : 5.00 in (127.00 mm) x 7.13 in (181.10 mm) x 5.31 in (134.87 mm) (Height x Width x Depth)
• Weight : 11.001
