Product Info
- Manufacturer:Schneider Electric
Description
8538SDG34V02S

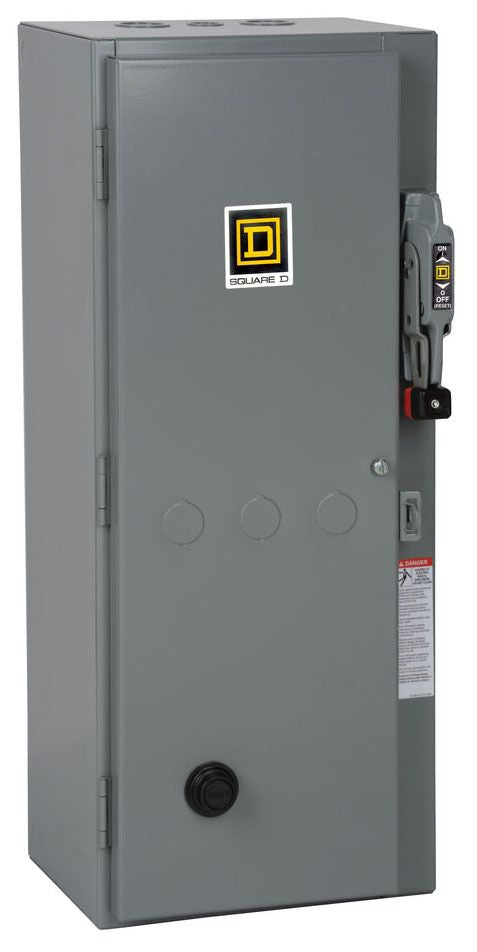

8538SDG34V02S is a Square D NEMA Combination Magnetic Starter, Type S, designed for industrial motor control applications.This starter features a 45 ampere rating with a 600 VAC voltage rating and supports 3 poles. It is non-reversing with a thermal melting alloy reset type and a coil voltage of 110/120 VAC. The unit is rated for 25 horsepower at 460/575 VAC and includes a NEMA 1 enclosure made of durable sheet steel. It operates at 50/60 Hz frequency and is suitable for three-phase power systems. The starter uses box lug connections and is designed for ambient temperatures from 32 to 104 degrees Fahrenheit.
- Amperage: 45 A
- Voltage Rating: 600 VAC
- Number of Poles: 3
- Coil Voltage: 110/120 VAC
- Horsepower Rating: 25 HP at 460/575 VAC
- Enclosure Type: NEMA 1
- Reset Type: Thermal Melting Alloy
- Frequency: 50/60 Hz
- Phase: 3-phase
- Connection Type: Box Lug
- Series: 8538
- Type: Type S Non-Reversing
Specifications
- Part Number: 8538SDG34V02S
- Manufacturer : Schneider Electric
- Brand : Square D
Product Data
- UPC : 78590132549
- GTIN : 00785901325499
- Country of Origin : Mexico
- Weight : 41.35
