Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Starter
Description
8538SDG11V02S

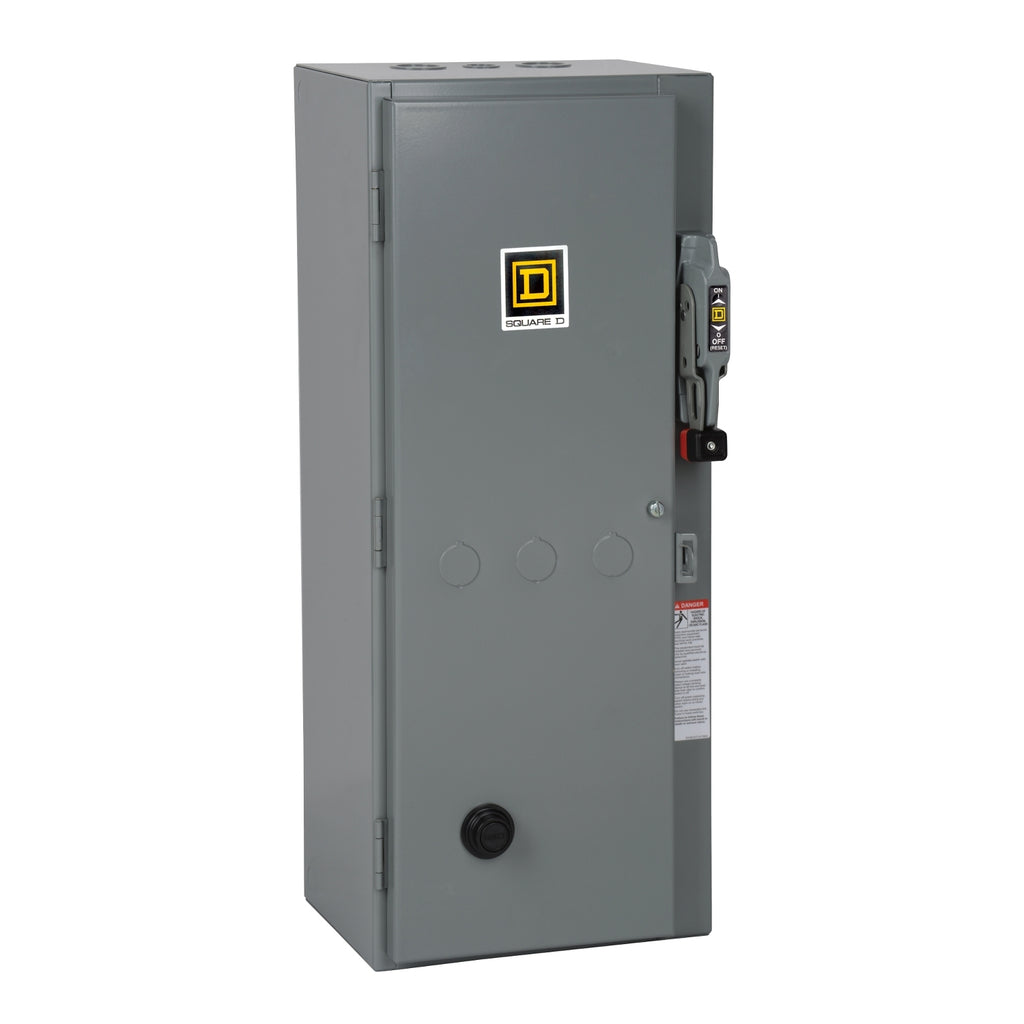

8538SDG11V02S is a Square D non-reversing motor starter designed for industrial motor control applications.
This combination starter features a NEMA Size 2 frame, surface mounting, and a separate control circuit. It is suitable for general purpose use and includes a disconnect switch. The starter is rated for motors up to 10 HP at 200V, 15 HP at 230V, and 25 HP at 460/575V, with a maximum voltage rating under 1000VAC.
-
Key Specifications
- Part Number: 8538SDG11V02S
- Manufacturer: Square D
- Category: Motor Control / Starter
- Amperage: 45A
- Voltage: 600VAC (under 1000VAC)
- Poles: 3
- Mounting Type: Surface
- Interrupt Rating: Not specified
- Series/Frame: NEMA Size 2
- Trip Unit: Not specified
- Certifications: Not specified
- Coil Voltage: 120VAC (60Hz) / 110VAC (50Hz)
- Horsepower: 10 HP @ 200V, 15 HP @ 230V, 25 HP @ 460/575V
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 8538SDG11V02S
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Starter
- Voltage : 690
- Amperage : 3200
- Phase : 3
- Poles : 4
- AIC rating : 50kA@415V
- Connection : Bolt-On
- Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
- Protection : Solid State
Product Data
- GTIN : 785901515449
- Weight : 40.73
