Product Info
- Manufacturer:Schneider Electric
Description
8538SCW22V02S

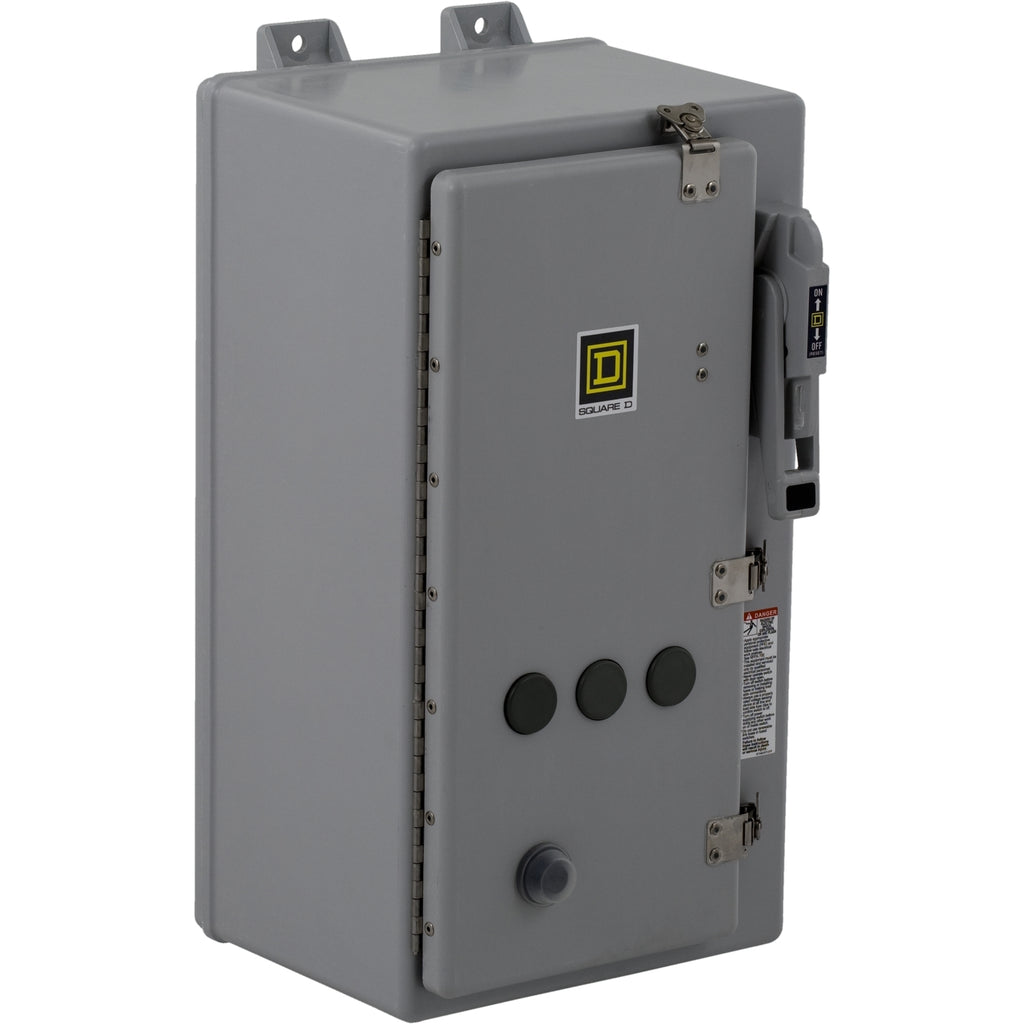

8538SCW22V02S is a Square D NEMA 4X combination motor starter with a 30 amp fusible disconnect and 3 poles designed for reliable motor control.This starter is rated for 600 VAC maximum voltage and supports 5 horsepower at 200/230 VAC three-phase motors. It features a Size 1 frame, melting alloy overload relays, and a 120 VAC coil voltage. The enclosure is NEMA 4X rated, providing protection against corrosion and water ingress for demanding environments.
- Manufacturer: Square D
- Part Number: 8538SCW22V02S
- Amperage: 30 Amps
- Voltage Rating: 600 VAC max
- Poles: 3 Pole
- Horsepower Rating: 5 HP at 200/230 VAC, 3 phase
- Enclosure Type: NEMA 4X
- Overload Type: Melting Alloy
- Coil Voltage: 120 VAC
- Size/Frame: Size 1
- Disconnect Type: Fusible
- Standards: UL Listed, NEMA Compliant
Specifications
- Part Number: 8538SCW22V02S
- Manufacturer : Schneider Electric
- Brand : Square D
Product Data
- Country of Origin : Mexico
- Dimensions : 26.94 in (684.28 mm) x 13.72 in (348.49 mm) x 11.4 in (289.6 mm) (Height x Width x Depth)
- Weight : 45.001
