Product Info
- Manufacturer:Square D
Description

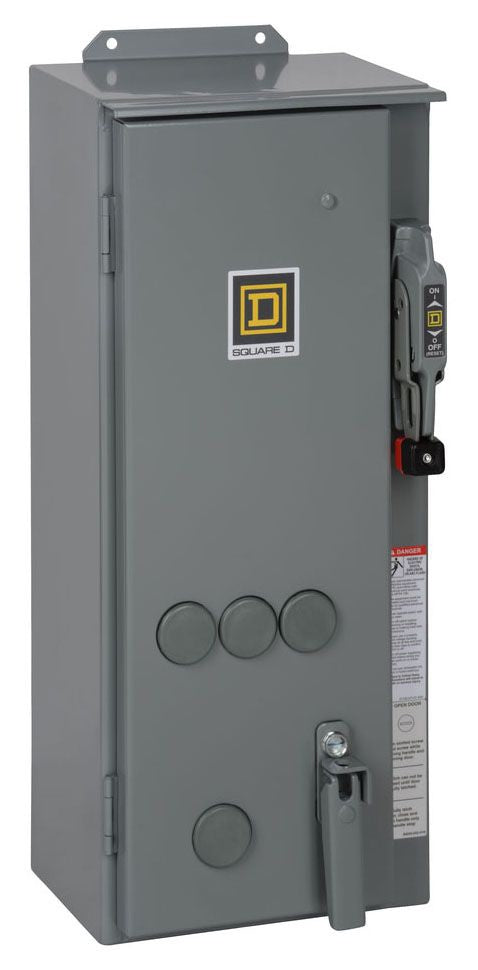

8538SCA44V02S
8538SCA44V02S is a Square D Type S Combination Starter designed for motor control applications.This NEMA 12 rated combination starter features a 30A fusible disconnect with a 27A current rating, suitable for 600V AC three-phase power. It supports up to 10 horsepower at 460/575 VAC and includes a 3-pole non-reversing configuration with a 120VAC coil. The starter is Size 1 and uses melting alloy fuses for short circuit protection.
- Type S Combination Starter
- 30 Amp Fusible Disconnect
- 27 Amp Current Rating
- 600 Volt AC, 3-Phase
- 10 HP at 460/575 VAC
- 3 Poles, Non-Reversing
- 120 VAC Coil Voltage
- NEMA 12 Enclosure
- Size 1 Frame
- Melting Alloy Fuses
- Meets NEMA Standards
Additional Information
Non-Reversing
Specifications
- Part Number: 8538SCA44V02S
- Manufacturer : Schneider Electric
- Brand : Square D
- Amperage : 27 Amp
- Aux Contacts : Without
- Coil Voltage Maximum : 110 VAC
- Nema Rating : NEMA 12
- Nema Starter Size : 1
Product Data
- UPC : 78590102106
- GTIN : 00785901021063
- Country of Origin : Mexico
- Dimensions : 24.0 in (609.6 mm) x 8.34 in (211.84 mm) x 9.5 in (241.3 mm) (Height x Width x Depth)
- Weight : 32.851 lb
