Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor starter controls
Description
8538SBG11V02S

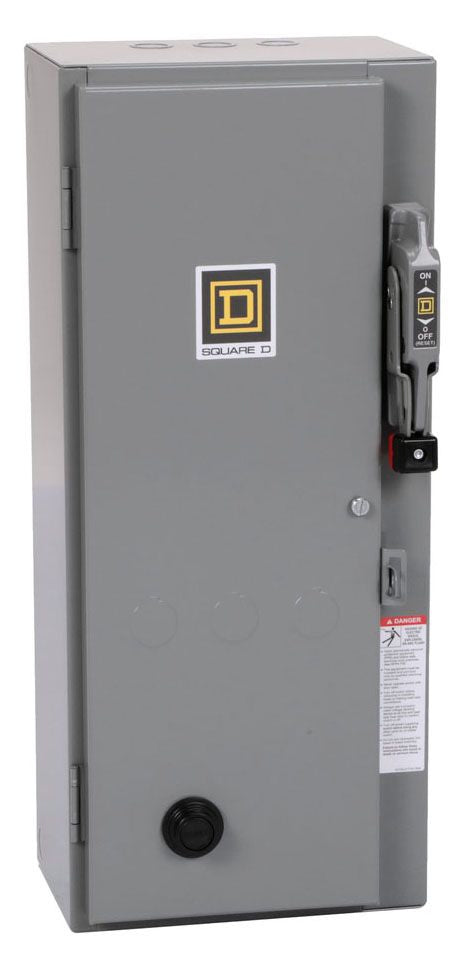

8538SBG11V02S is a Square D non-reversing motor starter designed for reliable motor control applications.This NEMA Size 0 combination magnetic starter features an 18 ampere rating with a 120 VAC coil voltage at 60 Hz. It supports 3 poles and is rated for 3 HP at 200/230 VAC and 5 HP at 460/575 VAC polyphase motors. The enclosure is NEMA 1 type, providing general-purpose protection. The starter includes thermal overload protection with a thermal melting alloy trip unit and is built for easy servicing by replacing contacts and coils. It is suitable for industrial environments requiring seismic-rated construction and flexible installation.
- Key Specifications
- Amperage Rating: 18 A
- Coil Voltage: 110 VAC at 50 Hz, 120 VAC at 60 Hz
- Poles: 3
- Horsepower: 3 HP at 200/230 VAC, 5 HP at 460/575 VAC
- Enclosure Type: NEMA 1
- Size/Frame: NEMA Size 0
- Trip Unit: Thermal Melting Alloy
- Action: Non-Reversing
- Mounting: Combination Magnetic Starter
- Seismic Rated: Yes
- Operating Temperature Range: 32 to 104 °F
- Part Number: 8538SBG11V02S
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor starter controls
- Family : 8538
- Voltage : 600 600
- Aux Contacts : Without
- Coil Voltage Maximum : 110 VAC
- Nema Starter Size : 0
- UPC : 785901744542
- GTIN : 785901744542
- Country of Origin : Mexico
- Dimensions : 22.5 in H x 9.5 in W x 8.34 in D 9.5 in W x 8.34 in D x 22.5 in H
- Weight : 34.2 lb
Additional Information
Non-Reversing
