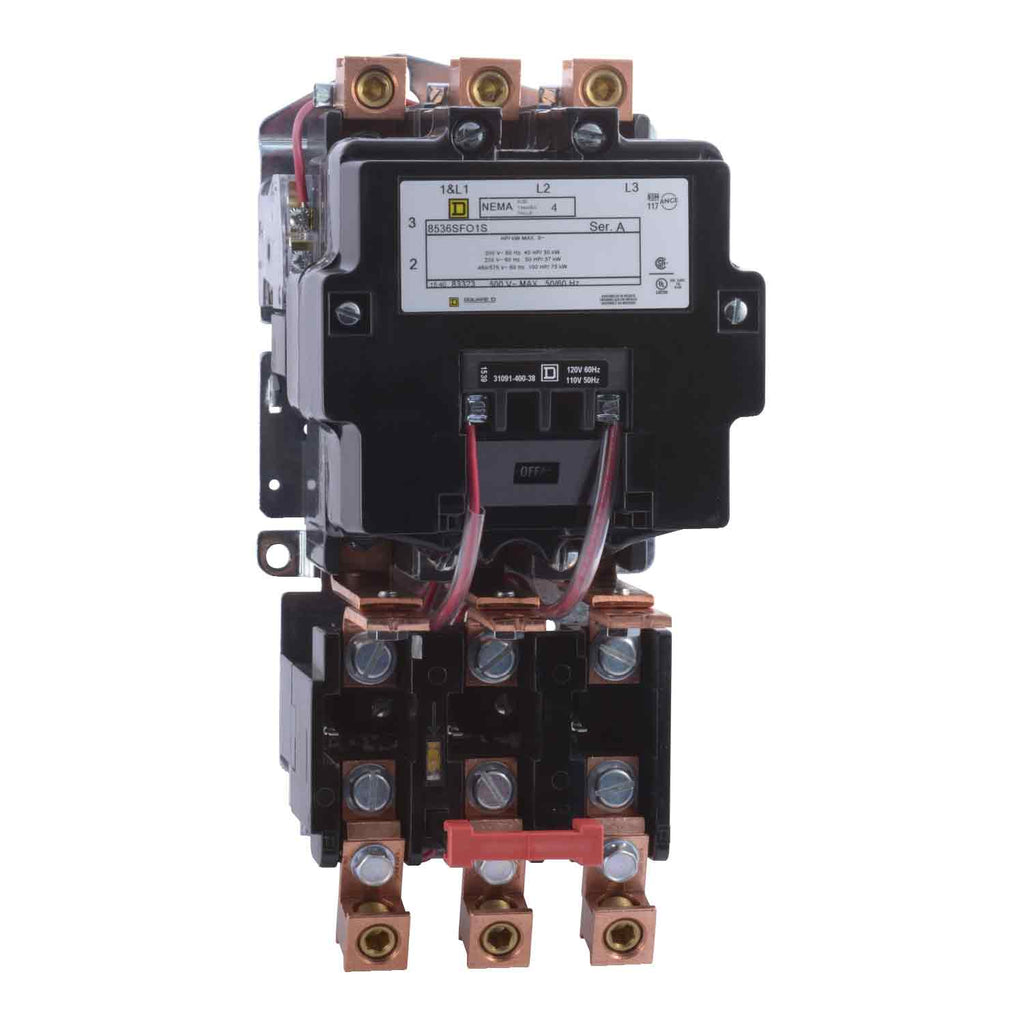

8536SFO1V06 - Square D 135A 600V 3 Pole NEMA Size 4 Motor Starter Non-Reversing

8536SFO1V06

8536SFO1V06 is a Square D Class 8536 motor starter designed for industrial motor control applications.This motor starter features a 135 ampere rating, 3 poles, and supports 3-phase voltage up to 600V. It is a non-reversing type with a NEMA Size 4 frame and an open enclosure. The starter coil voltage is 480 VAC, suitable for 60 Hz operation. It supports horsepower ratings up to 100 HP at 460 VAC and 50 HP at 240 VAC. The device includes melting alloy thermal overload relays with Class 20 thermal protection and is UL Listed and CSA Certified.

Key Specifications
• Amperage: 135A
• Voltage: 600V max
• Poles: 3
• Phase: 3-phase
• Horsepower: 100 HP @ 460 VAC, 50 HP @ 240 VAC
• Coil Voltage: 480 VAC (60 Hz)
• Frame Size: NEMA Size 4
• Type: Non-reversing
• Enclosure: Open type
• Overload Relay: Melting alloy thermal, Class 20
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8536SFO1V06
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 8536
• Type : SFO
• Voltage : 600
• Amperage : 135
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 40 hp HP @ 3 Phase - 240V 50 hp HP @ 3 Phase - 480V 100 hp
• Configuration : Nonreversing
• Aux Contacts : No Auxiliary Contacts
• Coil Voltage Maximum : 480 VAC
• Coil Voltage Minimum : 440
• Nema Rating : 4
• Nema Starter Size : 4

Product Data

• UPC : 785901832539
• GTIN : 00785901832539
• Country of Origin : Mexico
• Dimensions : 12.88 in (327.15 mm) x 6.00 in (152.40 mm) x 6.50 in (165.10 mm) (Height x Width x Depth)
• Weight : 21.25
• Certification : CSA, UL Listed
