8536SFO1V03H30 - Square D 135A 3 Pole NEMA Motor Starter 240VAC Coil Open Enclosure

Save $3,878.00
SKU: 8536SFO1V03H30-New
Condition: New
Price:
$0.00 $3,878.00
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

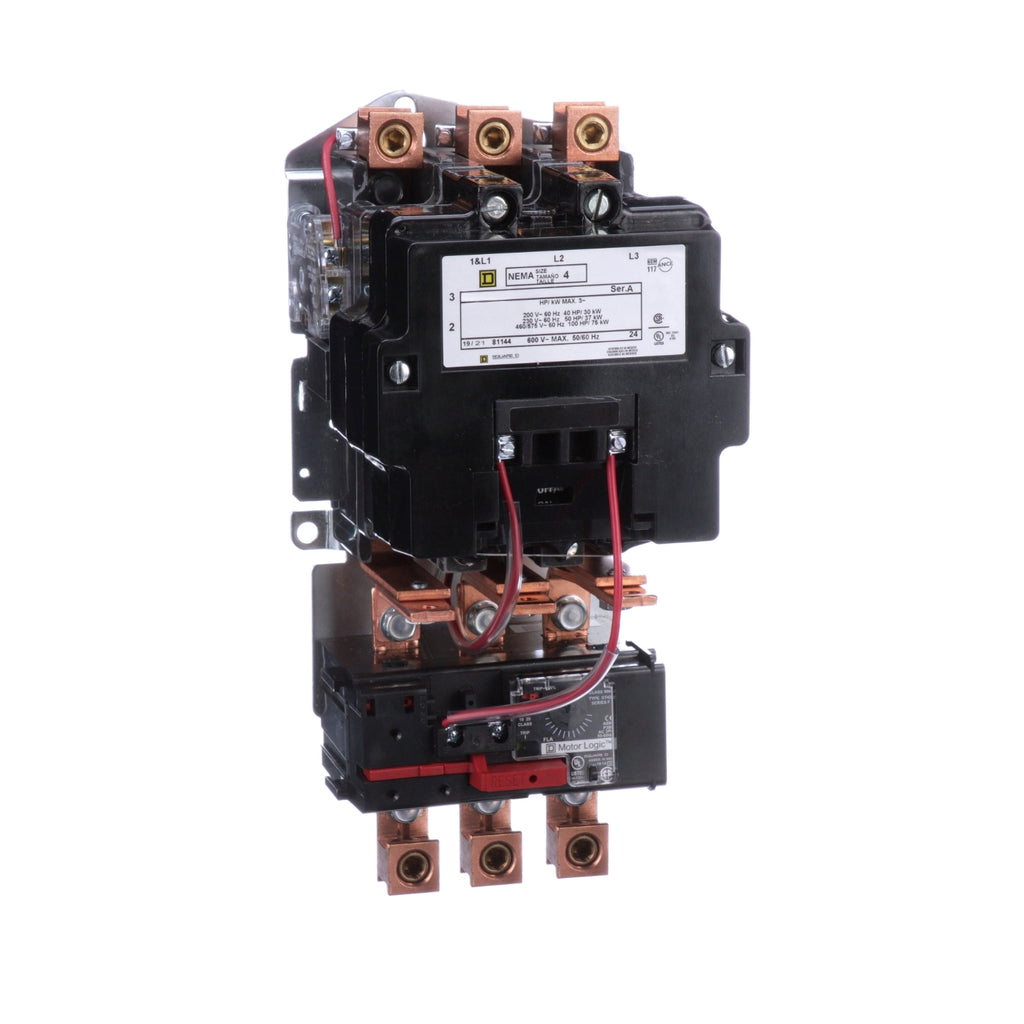

8536SFO1V03H30 Square D Class 8536 Motor Starter 3 phase 6V 135 AmpA 220V coil - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
8536SFO1V03H30 Square D Class 8536 Motor Starter 3 phase 6V 135 AmpA 220V coil - Essential Electric Supply

Description

8536SFO1V03H30


8536SFO1V03H30 is a Square D Class 8536 Type S NEMA motor starter designed for reliable control of three-phase AC motors. This non-reversing starter features a 240VAC coil, open enclosure, and is rated for 135 amps with a maximum voltage of 600VAC. It is suitable for industrial and commercial applications requiring robust motor control. The 8536SFO1V03H30 starter is built with a solid-state Motor Logic overload relay for precise protection and long service life. It supports customizable configurations and is engineered for easy installation, wiring, and maintenance. The open enclosure allows for flexible mounting and integration into various control panels.
  • Manufacturer: Square D
  • Part Number: 8536SFO1V03H30
  • Series: 8536
  • Type: Type S NEMA Motor Starter
  • Amperage Rating: 135A
  • Coil Voltage: 240VAC at 60 Hz / 220VAC at 50 Hz
  • Phase: 3 Phase
  • Poles: 3
  • Enclosure Type: Open
  • Maximum Voltage: 600VAC
  • Overload Relay: Motor Logic Solid-State
  • Horsepower Rating: 40 HP at 208V, 50 HP at 240V, 100 HP at 480V/575V
  • NEMA Size: 4
  • Action Type: Non-Reversing
  • Mounting Type: Panel Mount
  • Interrupt Rating: Up to 100 kA SCCR
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: 8536SFO1V03H30
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Motor Control
  • Item Subcategory : Motor Starter
  • Family : Class 8536
  • Type : SFO
  • Voltage : 6
  • Amperage : 135
  • Phase : 3
  • Horse Power : HP @ 3 Phase - 208V 40 hp HP @ 3 Phase - 240V 50 hp HP @ 3 Phase - 480V 100 hp
  • Configuration : Nonreversing
  • Aux Contacts : 1NO
  • Coil Voltage Maximum : 240 VAC
  • Coil Voltage Minimum : 220
  • Nema Starter Size : 4

Product Data

  • UPC : 785901811459
  • GTIN : 00785901811459
  • Country of Origin : Mexico
  • Dimensions : 12.88 in (327.15 mm) x 6.00 in (152.40 mm) x 6.50 in (165.10 mm) (Height x Width x Depth)
  • Weight : 27.21
  • Certification : CSA, UL Listed
