8536SFO1V03 - Square D 135A 600VAC 3 Pole NEMA 4 Motor Starter Non-Reversing Type S

8536SFO1V03

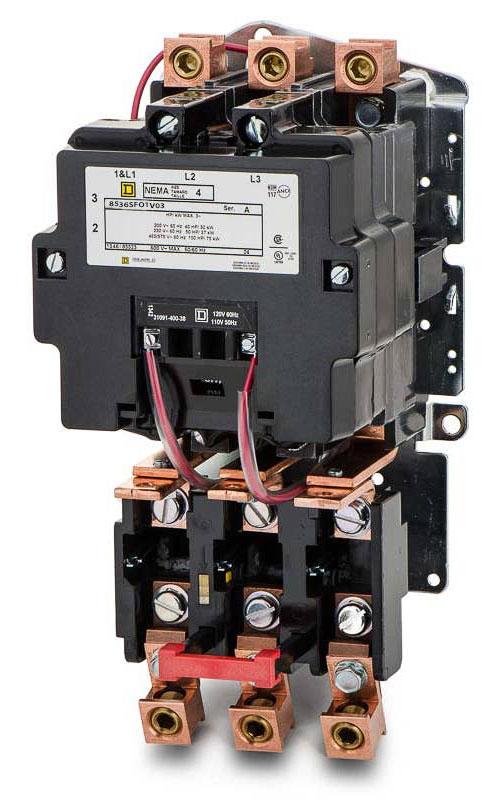

8536SFO1V03 is a Square D non-reversing motor starter rated for 135 amps and 600 VAC with a 3 pole configuration.This Type S NEMA Size 4 motor starter supports 3 phase operation with a coil voltage of 220/240 VAC at 50/60 Hz. It features a thermal melting alloy overload relay, screw clamp terminals, and an open NEMA 4 enclosure suitable for surface mounting. The starter is rated for 10kA interrupt capacity and supports motor horsepower ratings up to 100 HP at 460 VAC.

Key Specifications
• Amperage Rating: 135 A
• Voltage Rating: 600 VAC
• Coil Voltage: 220/240 VAC, 50/60 Hz
• Number of Poles: 3
• Phase: 3
• Mounting Type: Surface
• Enclosure Type: NEMA 4 Open
• Interrupt Rating: 10,000 A
• Series/Frame: 8536 Size 4
• Overload Relay: Thermal Melting Alloy
• Trip Unit: Thermal
• Connection Type: Screw Clamp Terminal
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: 8536SFO1V03
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 8536
• Type : SFO
• Voltage : 600
• Amperage : 135
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 40 hp HP @ 3 Phase - 240V 50 hp HP @ 3 Phase - 480V 100 hp
• Configuration : Nonreversing
• Aux Contacts : No Auxiliary Contacts
• Coil Voltage Maximum : 240 VAC
• Coil Voltage Minimum : 220
• Nema Rating : 4
• Nema Starter Size : 4



Product Data

• UPC : 785901832508
• GTIN : 00785901832508
• Country of Origin : Mexico
• Dimensions : 12.88 in (327.15 mm) x 6.00 in (152.40 mm) x 6.50 in (165.10 mm) (Height x Width x Depth)
• Weight : 21.1
• Certification : CSA, UL Listed
