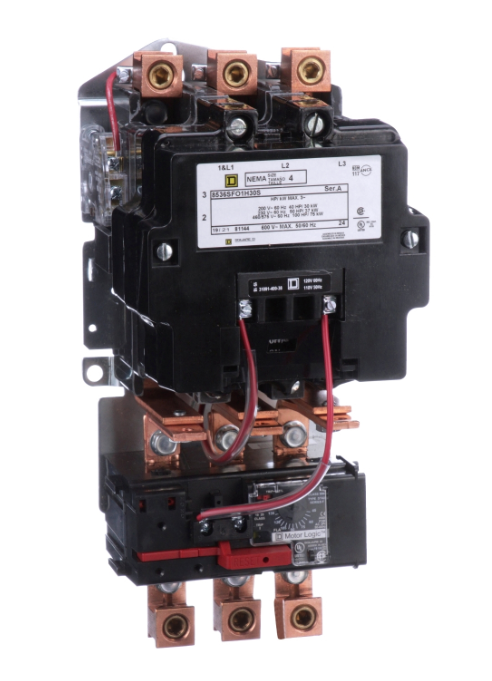

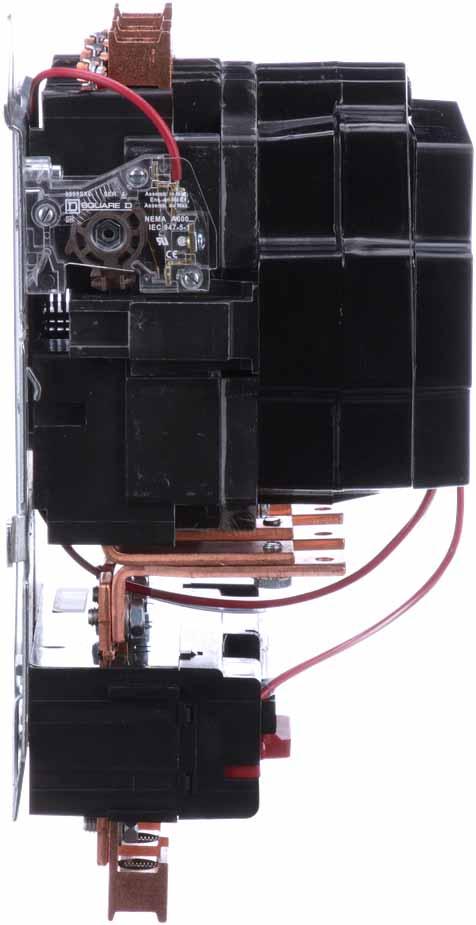

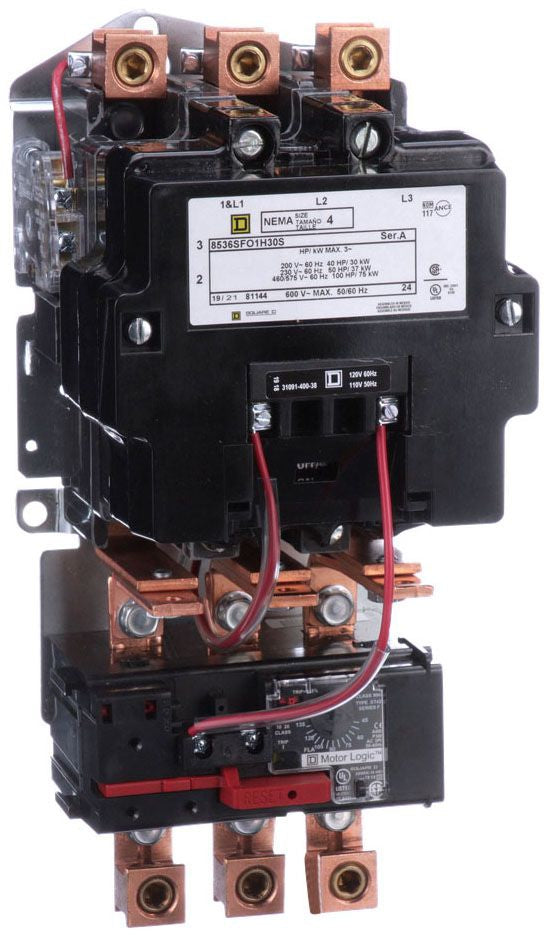

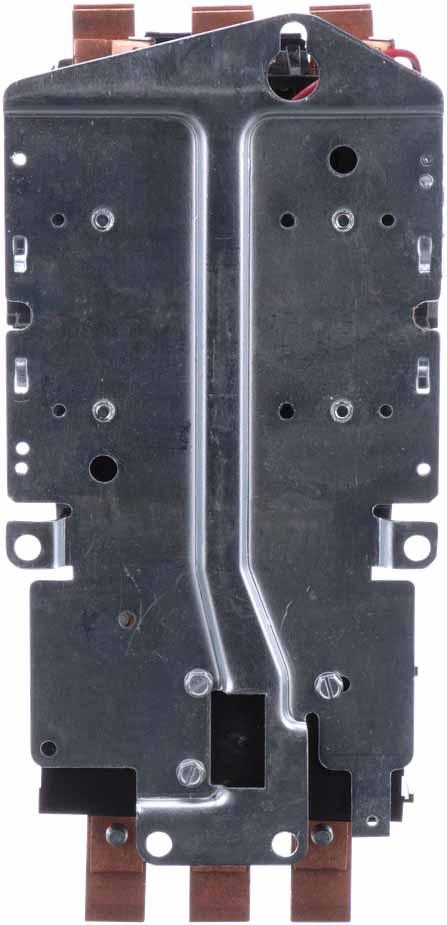

8536SFO1V02H30S - Square D 135A 600V 3-Pole NEMA Size 4 Non-Reversing Motor Starter with 120V Coil

8536SFO1V02H30S

8536SFO1V02H30S is a Square D NEMA Size 4 non-reversing motor starter rated for 135 amperes and 600 volts AC with a 120V coil.This 3-pole motor starter is designed for full voltage starting and stopping of 3-phase AC squirrel cage motors. It supports motor ratings up to 100 HP at 460 VAC and features a reliable thermal melting alloy overload relay. The open type enclosure and surface mounting provide flexible installation options. It is part of the 8536 Type S series, known for long mechanical life, easy maintenance, and customizable configurations.

Key Specifications
• Amperage: 135 A
• Voltage: 600 VAC
• Poles: 3
• Coil Voltage: 120 VAC (60 Hz) / 110 VAC (50 Hz)
• NEMA Size: 4
• Type: Non-Reversing
• Frame: 8536 Type S
• Overload Relay: Thermal Melting Alloy
• Motor HP Ratings: 40 HP at 200 VAC, 50 HP at 230 VAC, 100 HP at 460 VAC
• Mounting: Surface
• Enclosure: Open
• Phase: 3

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8536SFO1V02H30S
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 8536
• Type : SFO
• Voltage : 600
• Amperage : 135
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 40 hp HP @ 3 Phase - 240V 50 hp HP @ 3 Phase - 480V 100 hp
• Configuration : Nonreversing
• Aux Contacts : 1NO
• Coil Voltage Maximum : 120 VAC
• Coil Voltage Minimum : 110
• Nema Rating : 4
• Nema Starter Size : 4

Product Data

• UPC : 785901811442
• GTIN : 00785901811442
• Country of Origin : Mexico
• Dimensions : 12.88 in (327.15 mm) x 6.00 in (152.40 mm) x 6.50 in (165.10 mm) (Height x Width x Depth)
• Weight : 23.83
• Certification : CSA, UL Listed
