Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Starter
Description
8536SFG1V03

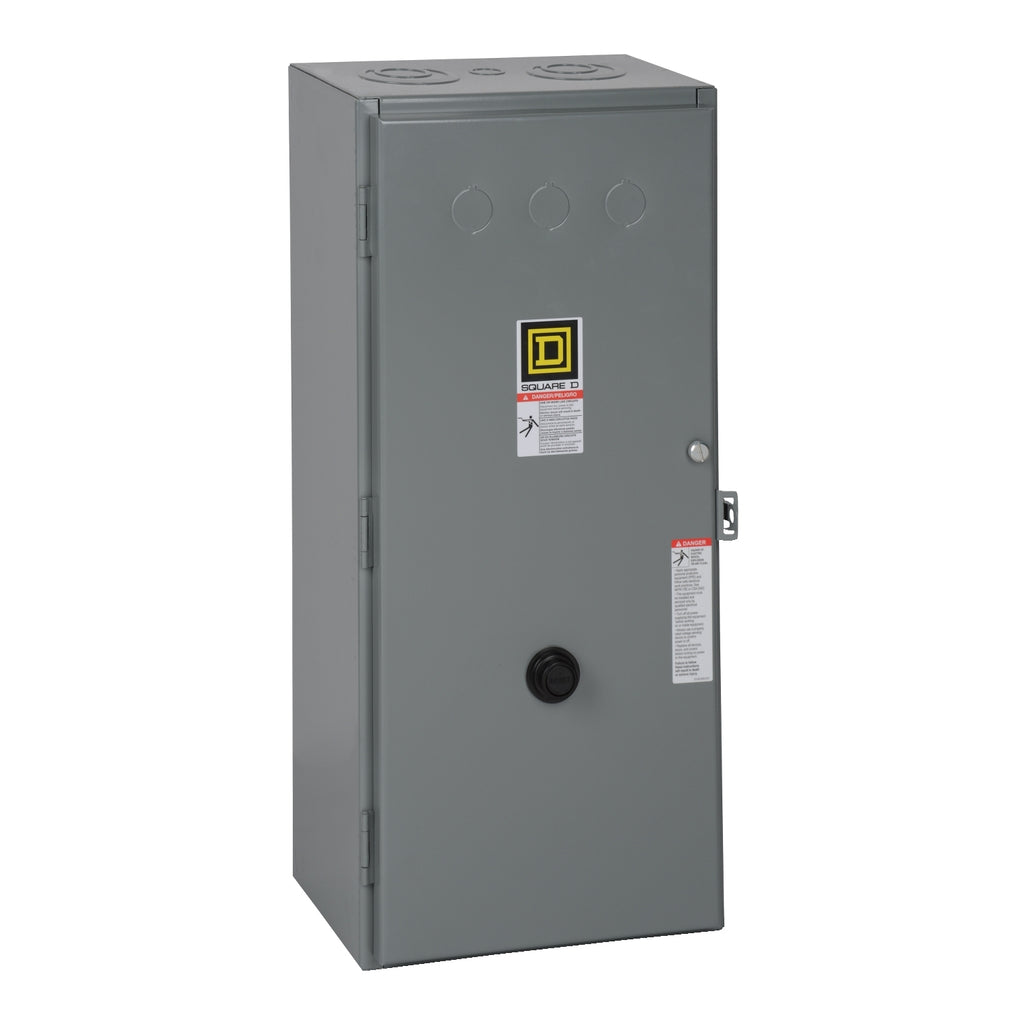

8536SFG1V03 is a Square D Class 8536 motor starter designed for reliable 3 phase motor control applications. This non-reversing starter features a 135A rated current, 3 pole configuration, and a 220V coil for efficient operation. Engineered for industrial environments, the 8536SFG1V03 offers robust performance with a NEMA 1 enclosure and a 10 kA SCCR (Short Circuit Current Rating). It is suitable for full voltage starting and is compatible with a wide range of motor loads.
- Part Number: 8536SFG1V03
- Manufacturer: Square D
- Series/Frame: Class 8536
- Rated Current: 135A
- Number of Poles: 3
- Number of Phases: 3 Phase
- Maximum Voltage Rating: 600V AC
- Mounting Type: NEMA 1 Enclosure
- Interrupt Rating: 10 kA SCCR
- Starter Type: Non-reversing
- Coil Voltage: 220V
- Certifications: UL Listed
Specifications
- Part Number: 8536SFG1V03
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Class 8536
- Type : SFG
- Voltage : 6
- Amperage : 135
- Phase : 3
- Poles : 3
- Configuration : Nonreversing
- Coil Voltage Maximum : 240
- Coil Voltage Minimum : 220
Product Data
- UPC : 785901832218
- GTIN : 00785901832218
- Dimensions : 25.16 in (639.06 mm) x 11.25 in (285.75 mm) x 9.00 in (228.60 mm) (Height x Width x Depth)
- Weight : 44.13
