Product Info
- Manufacturer:Square D
- Sub-Category:Motor Starter
Description

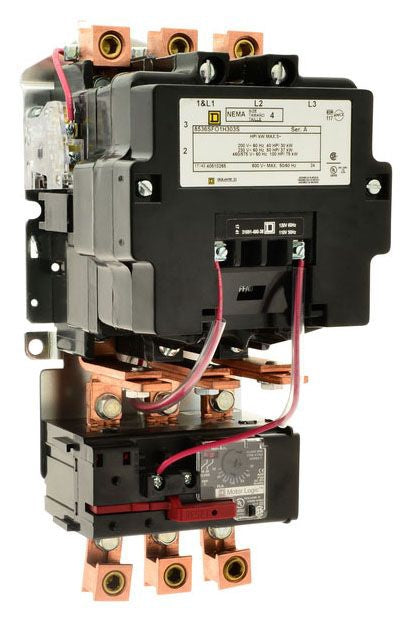

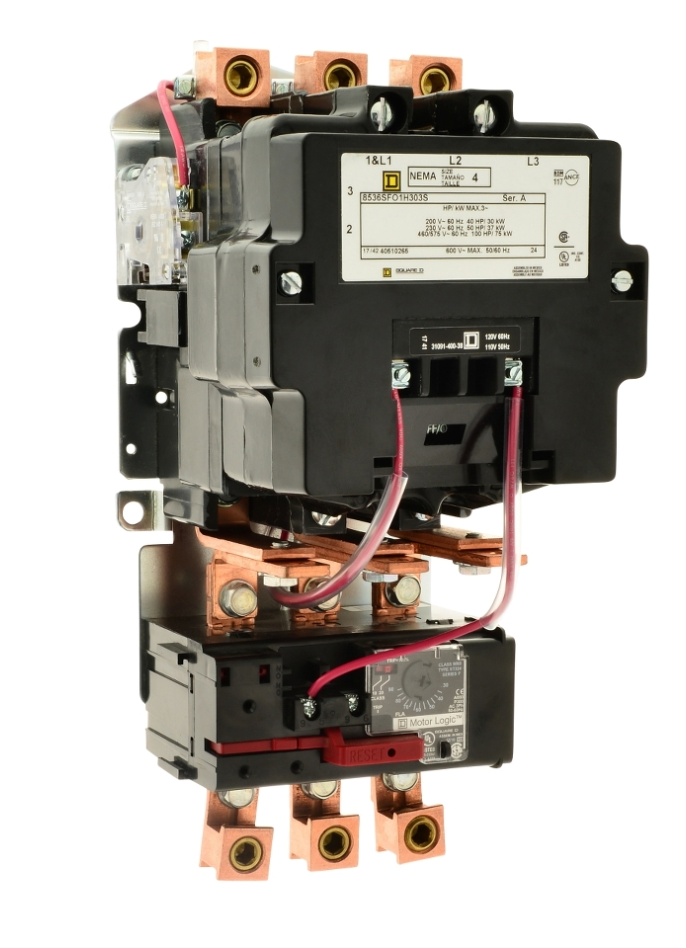

8536SFG1V02S
8536SFG1V02S is a Class 8536 NEMA Motor Starter by Schneider Electric (Square D), designed for reliable control and lighting applications. This catalog number uses Square D suffix conventions for coil voltage, enclosure features, and lighting contactor style. See the decoded suffix summary below.
- Family: Class 8536 NEMA Motor Starter
- Application: Industrial control, motor starting, or lighting loads
- Mounting: Panel/enclosure as configured
- Manufacturer: Schneider Electric (Square D)
- V02: 120 V 60 Hz coil
- S: Factory assembled/enclosed unit (per catalog build)
Specifications
- Part Number: 8536SFG1V02S
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Class 8536
- Type : SFG
- Voltage : 600
- Amperage : 135
- Phase : 3
- Poles : 3
- Horse Power : HP @ 3 Phase - 208V 40 hp HP @ 3 Phase - 240V 50 hp HP @ 3 Phase - 480V 100 hp
- Configuration : Nonreversing
- Aux Contacts : No Auxiliary Contacts
- Coil Voltage Maximum : 120 VAC
- Coil Voltage Minimum : 110
- Nema Rating : 4
- Nema Starter Size : 4
- Enclosure : 1
Product Data
- UPC : 78590183223
- GTIN : 00785901832232
- Country of Origin : Mexico
- Dimensions : 25.16 in (639.06 mm) x 11.25 in (285.75 mm) x 9.00 in (228.60 mm) (Height x Width x Depth)
- Weight : 43.31
- Certification : CSA, UL Listed
