8536SEO1V06 - Square D 90A 600V 3 Pole NEMA Size 3 Open Magnetic Motor Starter, 480V Coil, Non-Reversing, Surface Mount

8536SEO1V06

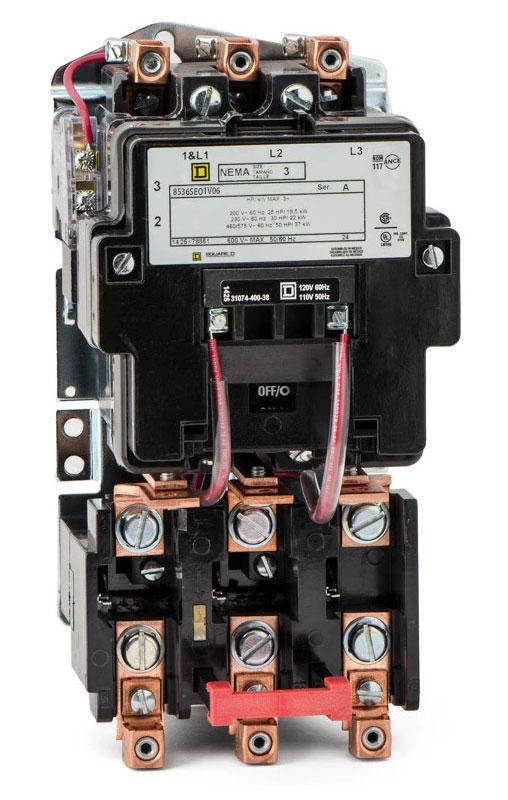

8536SEO1V06 is a Square D NEMA Size 3 open magnetic motor starter designed for reliable three-phase motor control.

This non-reversing, full-voltage starter features a 480VAC coil, screw clamp connections, and is rated for 90A at 600VAC. It is engineered for surface mounting and is compatible with standard overload relays for protecting AC squirrel cage motors. Ideal for industrial applications requiring robust motor starting and stopping with overload protection.

Key Specifications
• Part Number: 8536SEO1V06
• Manufacturer: Square D
• Amperage: 90A
• Voltage: 600VAC
• Poles: 3
• Mounting Type: Surface
• Series/Frame: 8536, NEMA Size 3
• Coil Voltage: 480VAC
• Phase: 3
• Enclosure: Open
• Type: Magnetic, Non-Reversing (FVNR)
• Motor HP Ratings: 25HP @ 200V, 30HP @ 230V, 50HP @ 460/575V
• Connection: Screw Clamp

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8536SEO1V06
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 8536
• Type : SEO
• Voltage : 600
• Amperage : 90
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 25 hp HP @ 3 Phase - 240V 30 hp HP @ 3 Phase - 480V 50 hp
• Configuration : Nonreversing
• Aux Contacts : No Auxiliary Contacts
• Coil Voltage Maximum : 480 VAC
• Coil Voltage Minimum : 440
• Nema Rating : 3
• Nema Starter Size : 3

Product Data

• UPC : 078590178850
• GTIN : 00785901788508
• Country of Origin : Mexico
• Dimensions : 11.09 in (281.69 mm) x 5.47 in (138.94 mm) x 6.50 in (165.10 mm) (Height x Width x Depth)
• Weight : 15.781
• Certification : CSA, UL Listed
