Product Info
- Manufacturer:Square D
- Sub-Category:Motor Starter
Description
8536SEO1V03

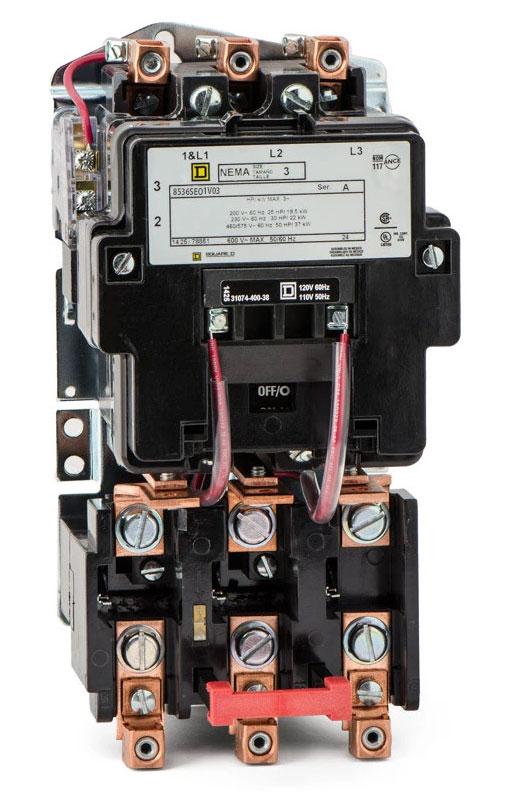

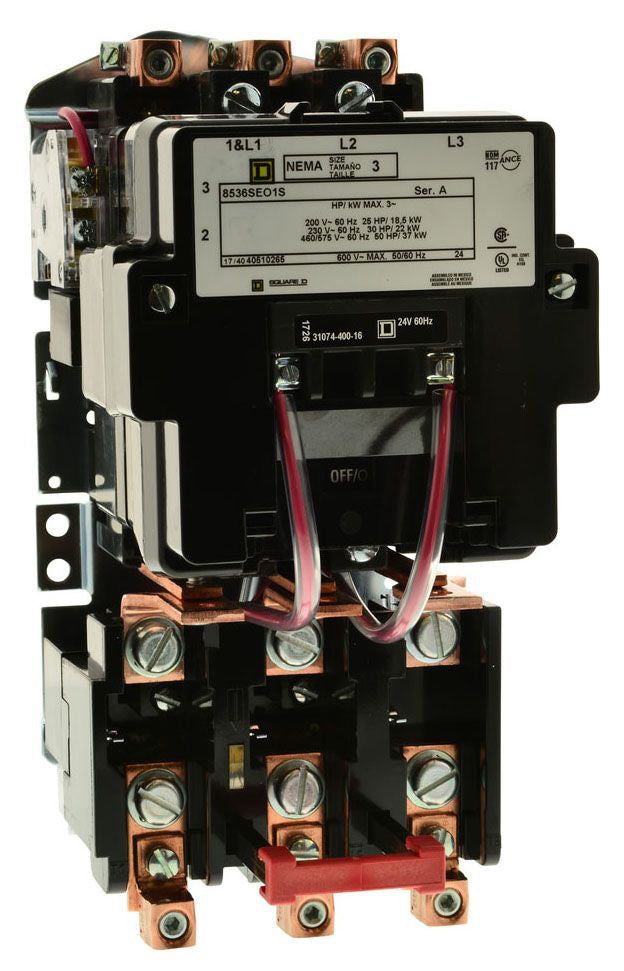

8536SEO1V03 is a Square D 3 pole motor starter rated for 90 amps and 600 volts AC, designed for surface mounting.This NEMA Size 3 motor starter features a 240 VAC coil voltage, supports 3-phase power, and is suitable for non-reversing motor control applications. It has a melting alloy trip unit and a 5kA interrupt rating, providing reliable overload protection. The starter is open type and designed for easy installation and maintenance.
- Manufacturer: Square D
- Part Number: 8536SEO1V03
- Amperage: 90 Amps
- Voltage: 600 VAC
- Coil Voltage: 240 VAC (60 Hz), 220 VAC (50 Hz)
- Poles: 3
- Phase: 3
- Mounting Type: Surface mount
- NEMA Size: 3
- Interrupt Rating: 5 kA at 600 V AC
- Trip Unit: Melting alloy
- Enclosure: Open type
Specifications
- Part Number: 8536SEO1V03
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Class 8536
- Type : SEO
- Voltage : 600
- Amperage : 90
- Phase : 3
- Poles : 3
- Horse Power : HP @ 3 Phase - 208V 25 hp HP @ 3 Phase - 240V 30 hp HP @ 3 Phase - 480V 50 hp
- Configuration : Nonreversing
- Aux Contacts : No Auxiliary Contacts
- Coil Voltage Maximum : 240 VAC
- Coil Voltage Minimum : 220
- Nema Rating : 3
- Nema Starter Size : 3
Product Data
- UPC : 785901788430
- GTIN : 00785901788430
- Country of Origin : Mexico
- Dimensions : 11.09 in (281.69 mm) x 5.47 in (138.94 mm) x 6.50 in (165.10 mm) (Height x Width x Depth)
- Weight : 15.73
- Certification : CSA, UL Listed
