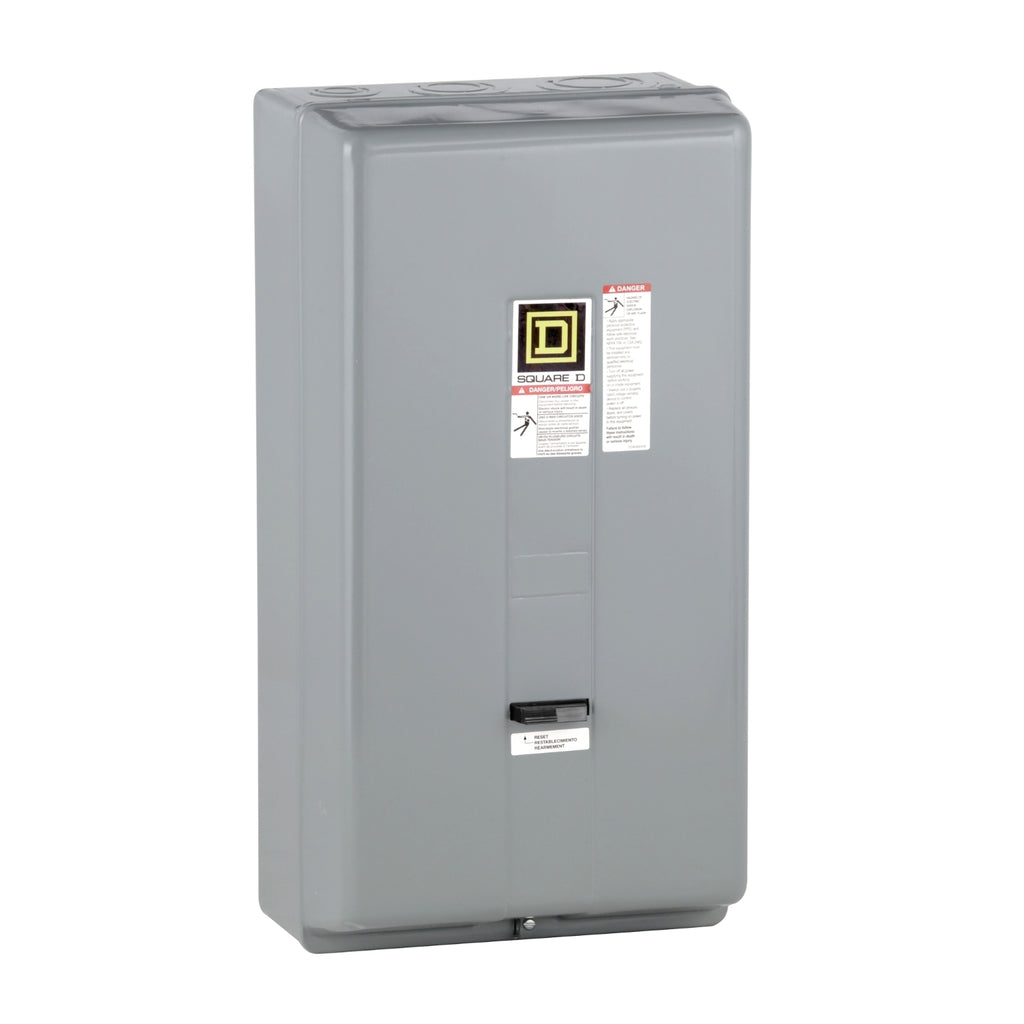

8536SEG1V06 - Square D Type S Full Voltage Starter Size 3 90A 440V/480V 50/60Hz 3-Pole Non-Reversing NEMA 1

8536SEG1V06

8536SEG1V06 is a Square D Type S Full Voltage Starter designed for reliable motor control in industrial applications. This NEMA Size 3 starter features a 90A current rating, 3-pole configuration, and is rated for 440V AC 50 Hz and 480V AC 60 Hz. It is non-reversing and comes in a NEMA 1 enclosure for general-purpose use. The starter is built for 3-phase systems and features screw clamp terminals for secure electrical connections. This motor starter is ideal for applications requiring robust motor protection and control. It is designed for surface mounting and offers a 5 kA short-circuit current rating (SCCR). The Type S series is known for its durability and compatibility with a wide range of industrial motors.

• Part Number: 8536SEG1V06
• Manufacturer: Square D
• Series/Frame: Type S, Size 3
• Amperage: 90A
• Voltage: 440V AC 50 Hz / 480V AC 60 Hz
• Poles: 3
• Mounting Type: Surface
• Interrupt Rating: 5 kA SCCR
• Enclosure: NEMA 1
• Motor Starter Type: Non-Reversing
• Electrical Connection: Screw Clamp Terminals
• Phase: 3-Phase

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8536SEG1V06
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 8536
• Amperage : 90
• Coil Voltage Maximum : 480 VAC
• Coil Voltage Minimum : 440
• Nema Starter Size : 3

Product Data

• UPC : 785901788232
• GTIN : 00785901788232
• Country of Origin : Mexico
• Dimensions : 21.81 in (553.97 mm) x 11.44 in (290.58 mm) x 8.38 in (212.85 mm) (Height x Width x Depth)
• Weight : 36.39
