Product Info
- Manufacturer:Square D
- Sub-Category:Motor Starter
Description
8536SEG1V02S

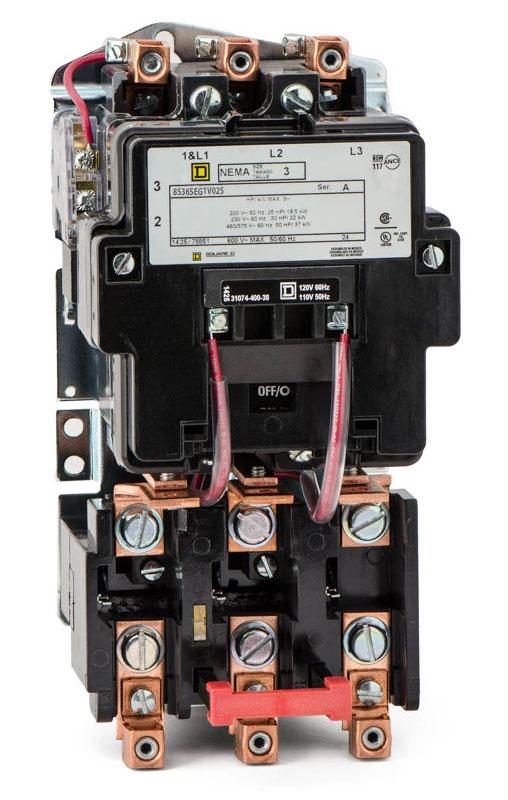

8536SEG1V02S is a Square D 3-pole motor starter rated for 90 amps and 600VAC, designed for full voltage starting and stopping of AC squirrel cage motors.This NEMA Type S, Size 3 motor starter features a 120VAC coil, 3-phase operation, and a 5kA interrupt rating. It has a surface mounting type and a NEMA 1 enclosure, suitable for industrial motor control applications. The starter uses a melting alloy overload relay and is non-reversing.
- Manufacturer: Square D
- Part Number: 8536SEG1V02S
- Amperage: 90 Amps
- Voltage Rating: 600VAC
- Coil Voltage: 120VAC
- Poles: 3
- Phase: 3
- Mounting Type: Surface
- Interrupt Rating: 5kA SCCR
- Series/Frame: 8536, Size 3
- Trip Unit: Melting Alloy Overload
- Enclosure: NEMA 1
- Non-Reversing
Specifications
- Part Number: 8536SEG1V02S
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Class 8536
- Type : SEG
- Voltage : 600
- Amperage : 90
- Phase : 3
- Poles : 3
- Horse Power : HP @ 3 Phase - 208V 25 hp HP @ 3 Phase - 240V 30 hp HP @ 3 Phase - 480V 50 hp
- Configuration : Nonreversing
- Aux Contacts : No Auxiliary Contacts
- Coil Voltage Maximum : 120 VAC
- Coil Voltage Minimum : 110
- Nema Rating : 3
- Nema Starter Size : 3
- Enclosure : 1
Product Data
- UPC : 785901788317
- GTIN : 00785901788317
- Country of Origin : Mexico
- Dimensions : 21.81 in (553.97 mm) x 11.44 in (290.58 mm) x 8.38 in (212.85 mm) (Height x Width x Depth)
- Weight : 36.401
- Certification : CSA, UL Listed
