Product Info
- Manufacturer:Square D
- Sub-Category:Motor Starter
Description
8536SDO1V06

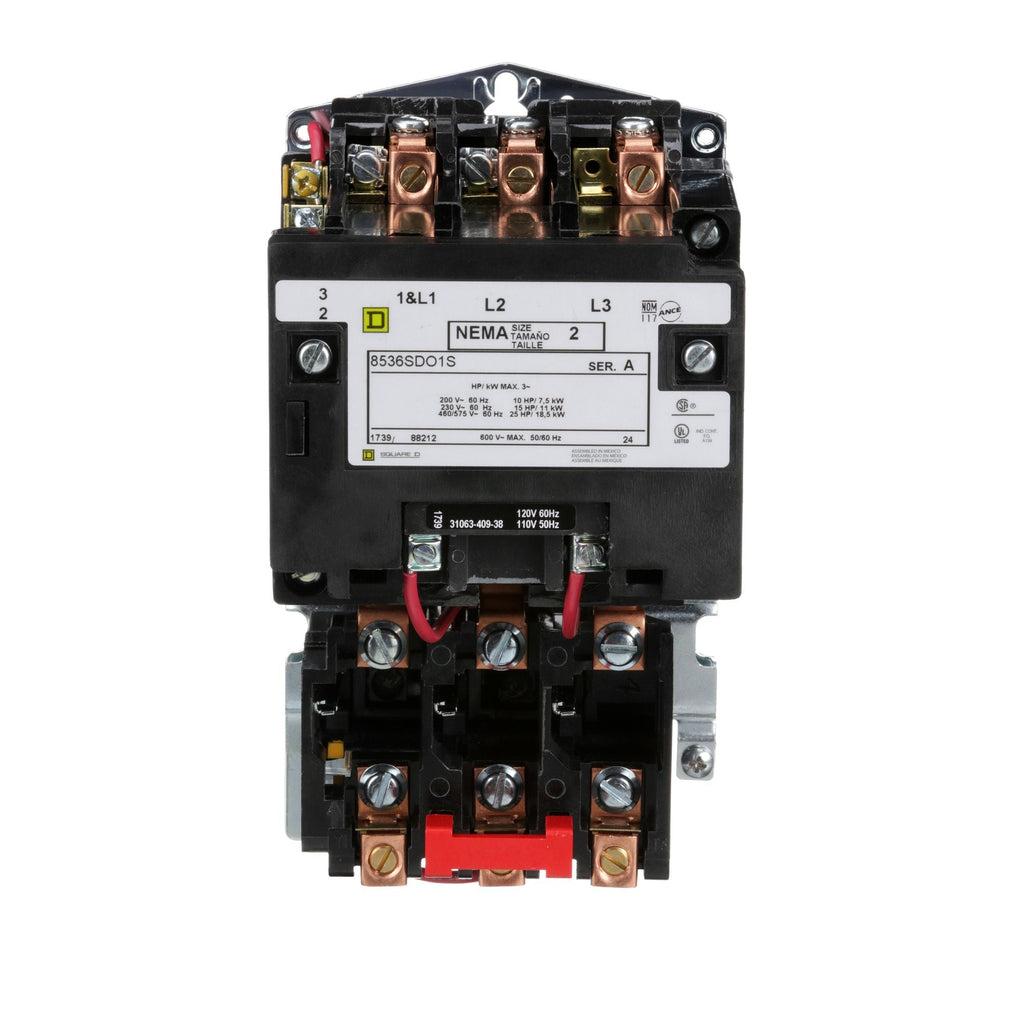

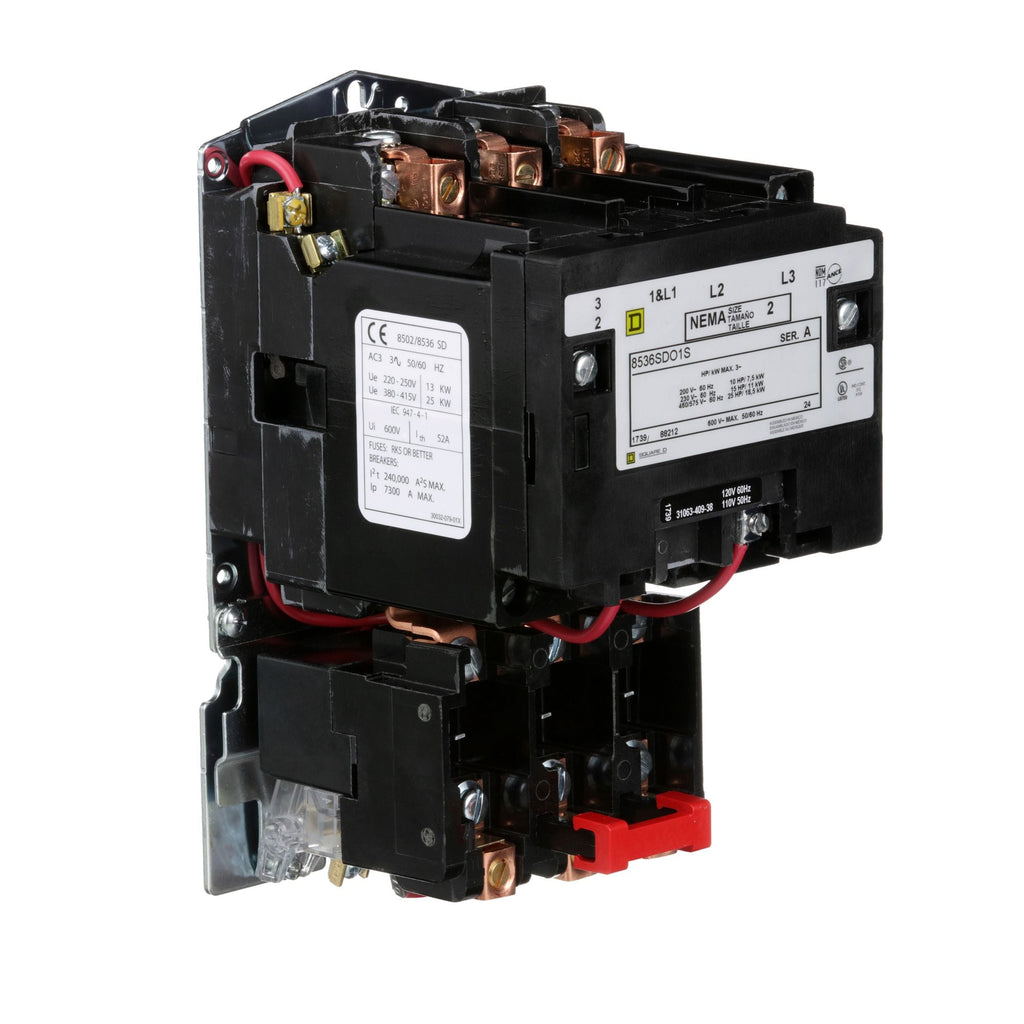

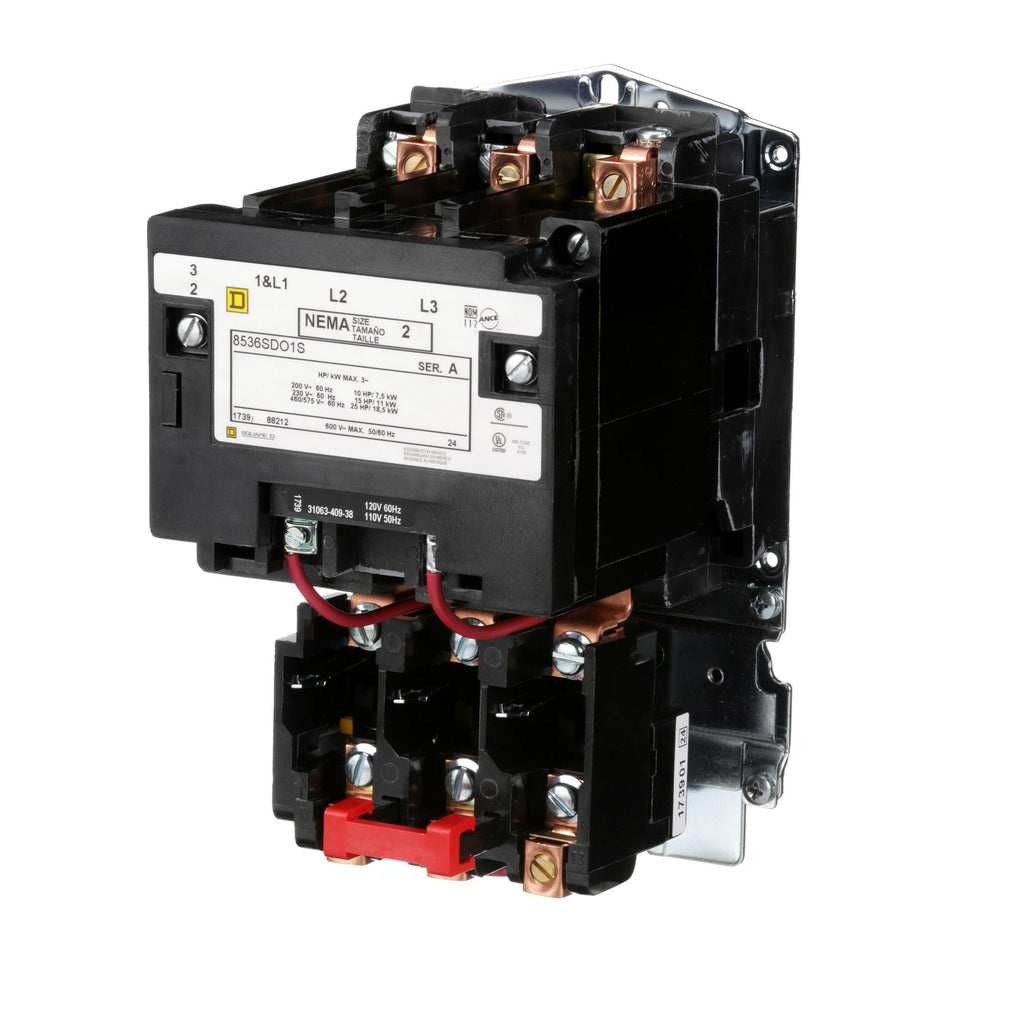

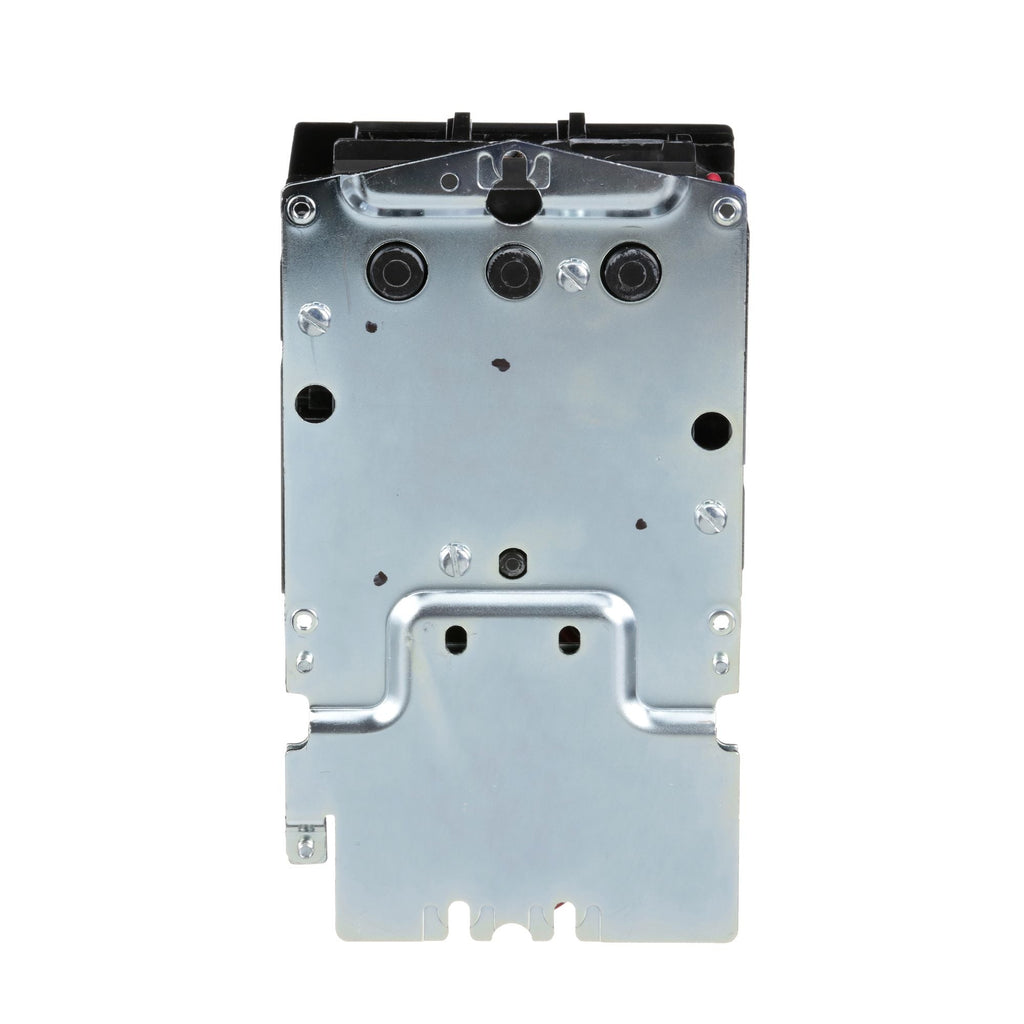

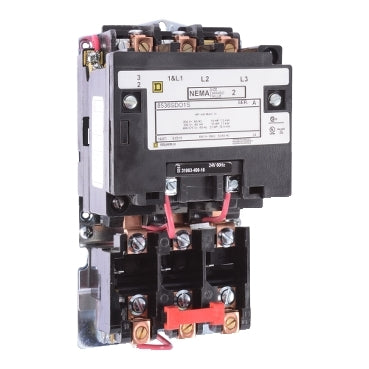

8536SDO1V06 is a Square D 45 Amp, 600VAC, 3 Pole motor starter designed for surface mounting in industrial motor control applications.This NEMA Size 2 motor starter features a magnetic contactor for full voltage starting and stopping of 3-phase AC squirrel cage motors. It supports a coil voltage of 440V at 50Hz and 480V at 60Hz, with a 5 kiloamp interrupt rating (SCCR). The starter is non-reversing and built to NEMA standards for open enclosure use.
- Manufacturer: Square D
- Part Number: 8536SDO1V06
- Amperage: 45 Amps
- Voltage: 600 VAC
- Poles: 3
- Phase: 3
- Mounting Type: Surface
- Coil Voltage: 440V 50Hz / 480V 60Hz
- Interrupt Rating: 5 kA
- Series/Frame: 8536, NEMA Size 2
- Type: Non-Reversing Motor Starter
- Enclosure: Open Type
Specifications
- Part Number: 8536SDO1V06
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Class 8536
- Type : SDO
- Voltage : 600
- Amperage : 45
- Phase : 3
- Poles : 3
- Horse Power : HP @ 3 Phase - 208V 10 hp HP @ 3 Phase - 240V 15 hp HP @ 3 Phase - 480V 25 hp
- Configuration : Nonreversing
- Aux Contacts : No Auxiliary Contacts
- Coil Voltage Maximum : 480 VAC
- Coil Voltage Minimum : 440
- Nema Rating : 2
- Nema Starter Size : 2
Product Data
- UPC : 785901882039
- GTIN : 00785901882039
- Country of Origin : Mexico

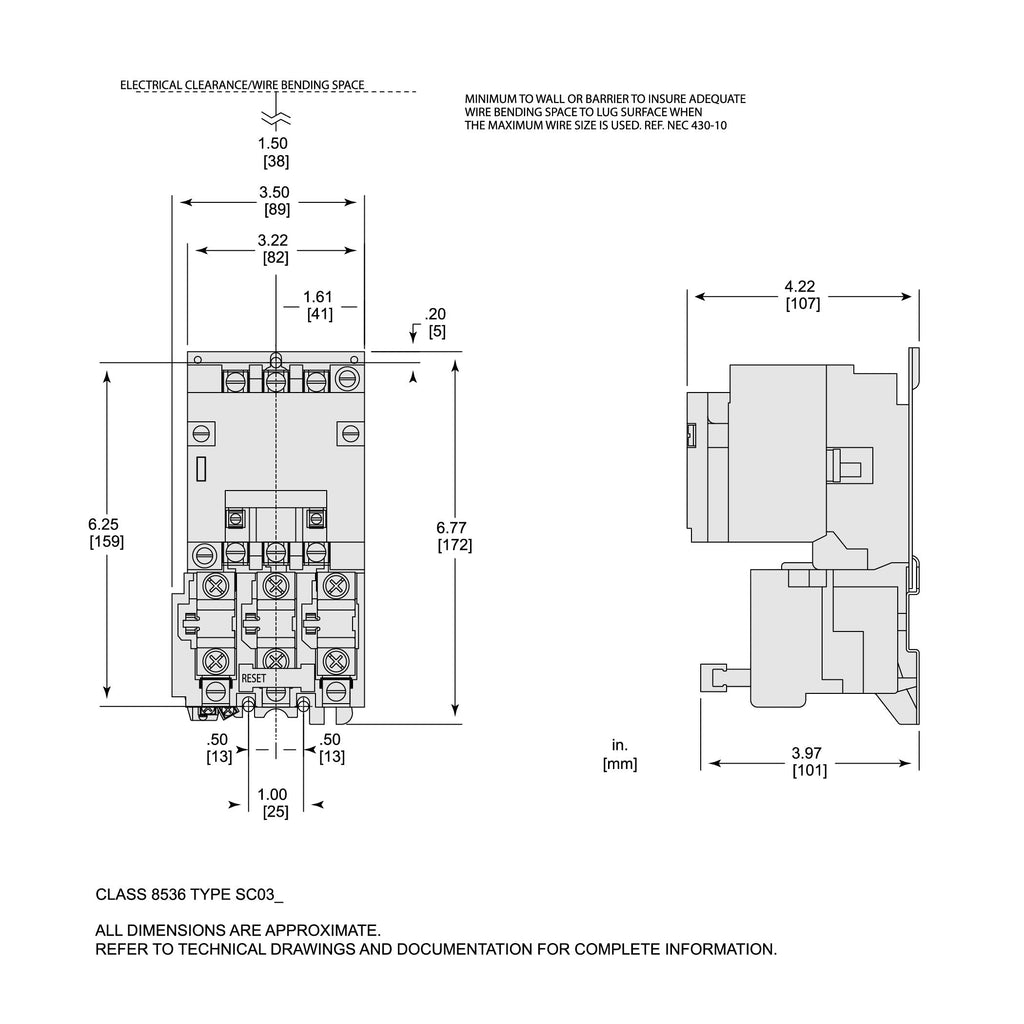

- Dimensions : 7.81 in (198.37 mm) x 4.31 in (109.47 mm) x 4.94 in (125.48 mm) (Height x Width x Depth)
- Weight : 6.74
- Certification : CSA, UL Listed
