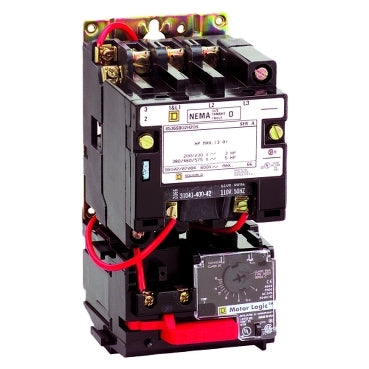

8536SDO1V03BS - Schneider Electric 45A 600V 3-Pole Non-Reversing NEMA Type S Motor Starter

8536SDO1V03BS

8536SDO1V03BS is a Schneider Electric non-reversing motor starter designed for reliable motor control applications.8536SDO1V03BS features a Size 2 NEMA Type S frame with a 45 ampere rating and 3 poles, suitable for 3-phase systems up to 600 volts AC. It supports motor horsepower ratings up to 25 HP at 460 VAC and includes an ambient compensated bimetallic overload relay. The starter has a 240 VAC coil voltage and an open chassis mounting type, providing flexibility for industrial and construction environments. It offers a 5 kA short circuit current rating (SCCR) and melting alloy trip unit for dependable protection.

Key Specifications
• Amperage: 45 A
• Voltage: 600 V AC maximum
• Poles: 3
• Phase: 3-phase
• Horsepower Ratings: 10 HP at 200 V AC, 15 HP at 230 V AC, 25 HP at 460 V AC and 575 V AC
• Mounting Type: Open chassis
• Frame/Series: NEMA Type S, Size 2
• Trip Unit: Melting alloy, ambient compensated bimetallic overload
• Coil Voltage: 240 V AC
• Interrupt Rating: 5 kA SCCR

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8536SDO1V03BS
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter

Product Data

• Country of Origin : Mexico
• Weight : 7.749
