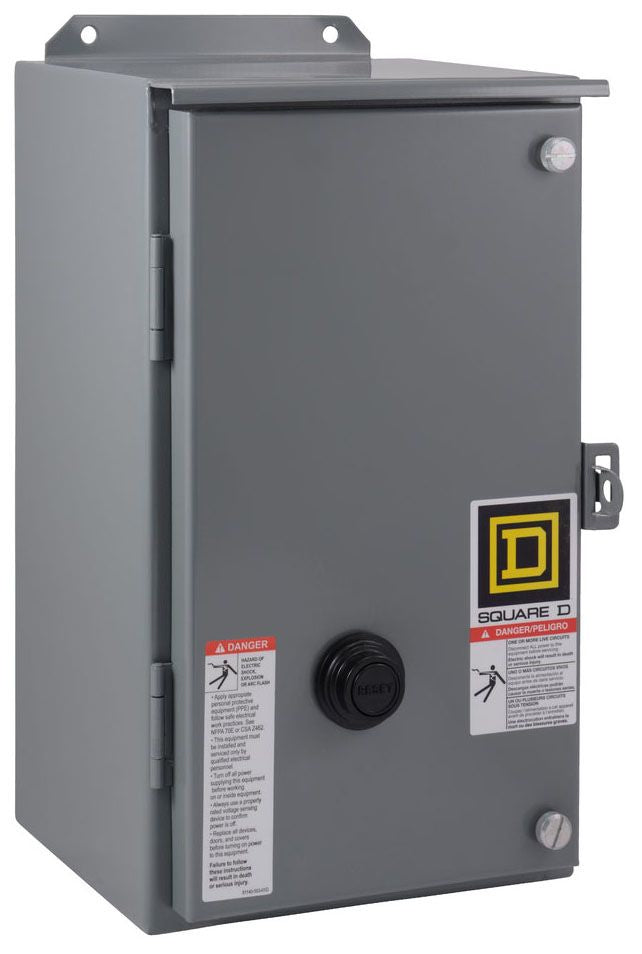

8536SDA1V06 - Square D 45A 3-Pole NEMA 12 Motor Starter 440/480V Coil Type S Full Voltage

8536SDA1V06

8536SDA1V06 is a Square D Type S full voltage motor starter with a 45 amp rating and 3 poles, designed for reliable motor control applications.This NEMA Size 2 motor starter features a 440V AC 50 Hz / 480V AC 60 Hz coil voltage, supports 3-phase motors up to 25 HP at 460/575 VAC, and includes a NEMA 12 enclosure for industrial use. It is non-reversing with screw clamp terminals and thermal melting alloy overload protection.

• Amperage Rating: 45 A
• Voltage: 600 VAC max, Coil Voltage 440V AC 50 Hz / 480V AC 60 Hz
• Poles: 3
• Motor HP Ratings: 10 HP at 200 VAC, 15 HP at 230 VAC, 25 HP at 460/575 VAC
• Mounting Type: NEMA 12 Enclosure
• Interrupt Rating: 5 kA SCCR
• Series/Frame: 8536, Size 2
• Trip Unit: Thermal Melting Alloy Overload Relay
• Connection Type: Screw Clamp Terminals
• Frequency: 50/60 Hz
• Non-Reversing Starter
• Certifications: Industrial Grade, NEMA 12

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8536SDA1V06
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Voltage : 600
• Amperage : 45 Amp
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Coil Voltage Maximum : 480 VAC
• Coil Voltage Minimum : 440
• Nema Rating : 2
• Nema Starter Size : 2
• Protection : Solid State

Product Data

• UPC : 785901890812
• GTIN : 785901853220
• Country of Origin : Mexico
• Dimensions : 16.00 in (406.40 mm) x 8.13 in (206.50 mm) x 9.28 in (235.71 mm) (Height x Width x Depth)
• Weight : 21.66
• Certification : CSA, UL Listed
