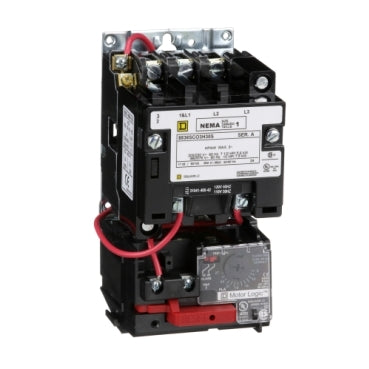

8536SCO3V08H30 - Square D 27A 208V 3-Pole NEMA Size 1 Motor Starter Open Enclosure

8536SCO3V08H30

8536SCO3V08H30 is a Square D NEMA Size 1 motor starter designed for 3-phase AC squirrel cage motors with a 27 ampere rating and 3 poles.

This non-reversing magnetic motor starter features a 208 VAC coil voltage and an open enclosure. It supports motor horsepower ratings of 7.5 HP at 200-240 VAC and 10 HP at 460-575 VAC. The starter includes a solid state overload relay adjustable from 9 to 27 amps and meets CSA and UL certifications. It has a high interrupt rating with a short circuit current rating (SCCR) up to 100 kA, suitable for industrial motor control applications.

Key Specifications
• Amperage: 27 A
• Voltage: 208 VAC coil, motor rated 200-240 VAC (7.5 HP), 460-575 VAC (10 HP)
• Poles: 3
• Mounting Type: Open enclosure
• Interrupt Rating: Up to 100 kA SCCR
• Series/Frame: NEMA Size 1
• Trip Unit: Solid state overload relay, 9-27 A adjustable
• Standards: CSA, UL Listed
• Phase: 3-phase
• Action Type: Non-reversing
• Weight: Approx. 1.8 kg

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8536SCO3V08H30
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 8536
• Type : SCG
• Voltage : 600
• Amperage : 27
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 7 1/2 hp HP @ 3 Phase - 240V 7 1/2 hp HP @ 3 Phase - 480V 10 hp
• Aux Contacts : 1NO
• Coil Voltage Maximum : 208 VAC
• Nema Starter Size : 1

Product Data

• UPC : 78590114257
• GTIN : 00785901142577
• Country of Origin : Mexico
• Dimensions : 6.81 in (172.96 mm) x 3.50 in (88.90 mm) x 4.22 in (107.19 mm) (Height x Width x Depth)
• Weight : 3.999
• Certification : CSA, UL Listed
