8536SCO3V08 - Square D 27 Amp 600VAC 3 Pole NEMA 1 Motor Starter with 208VAC Coil

8536SCO3V08

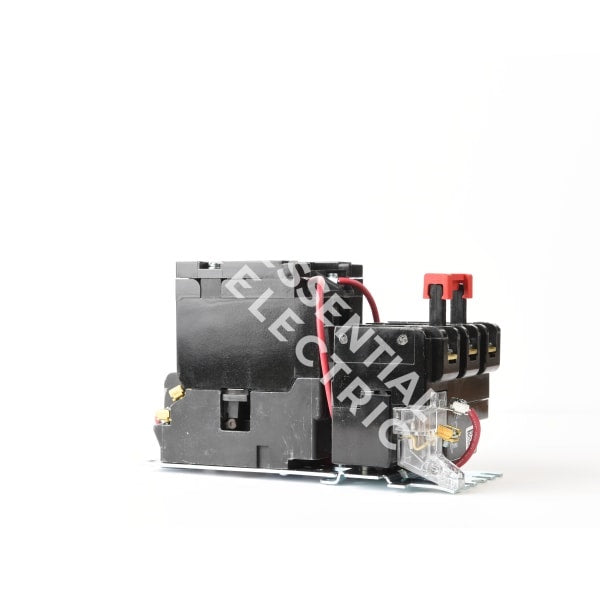

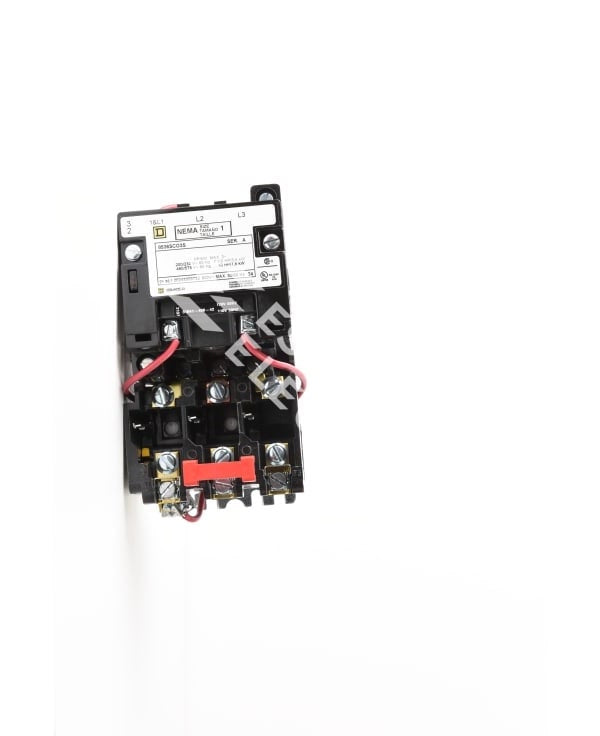

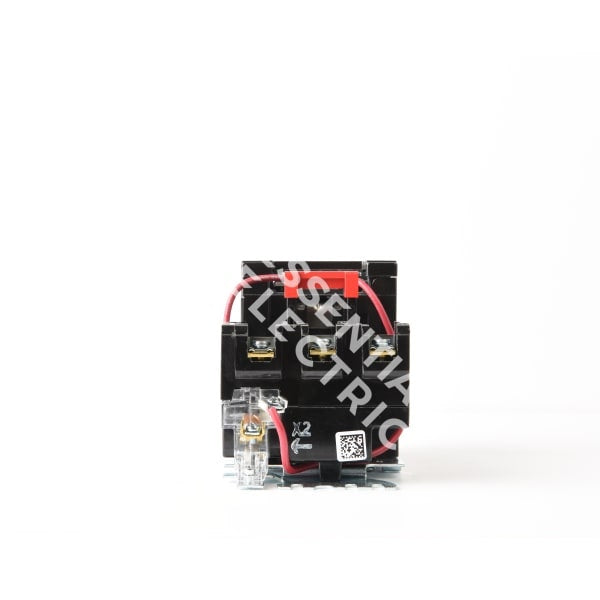

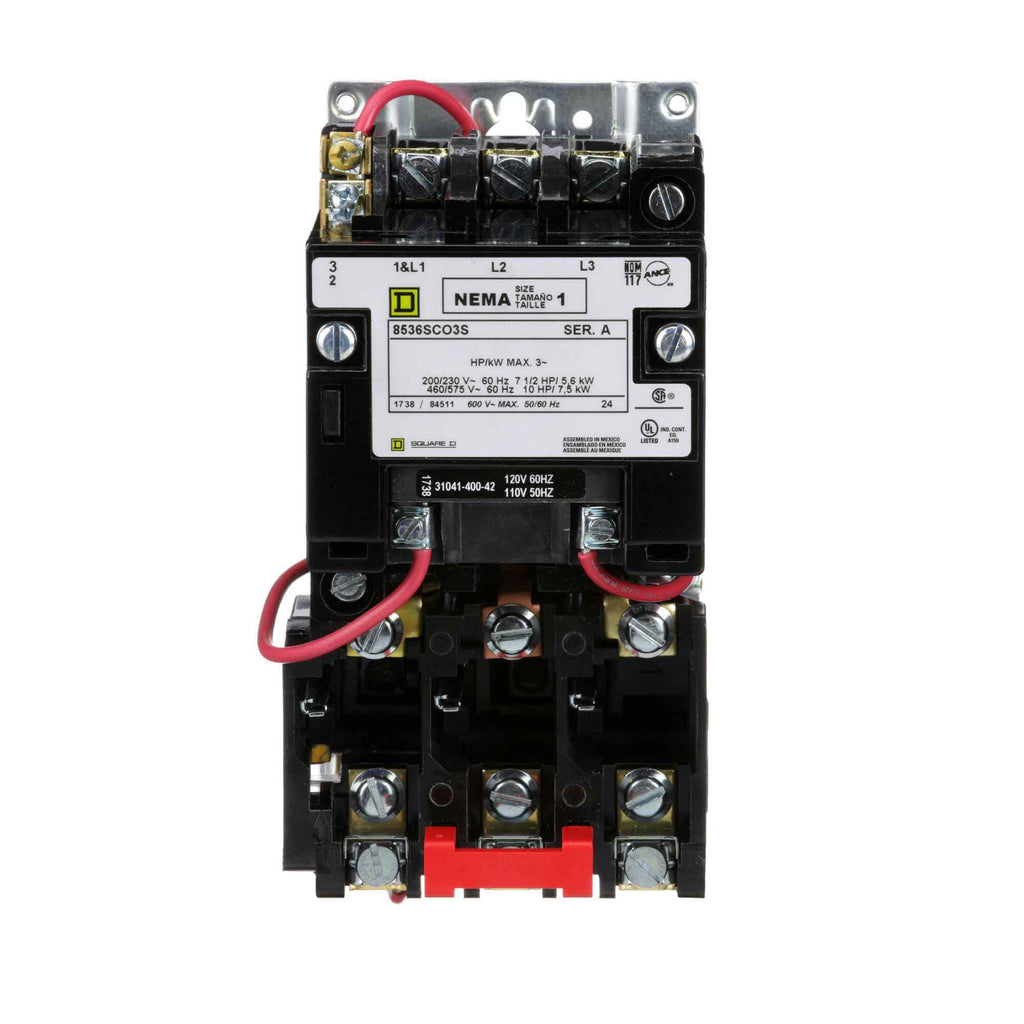

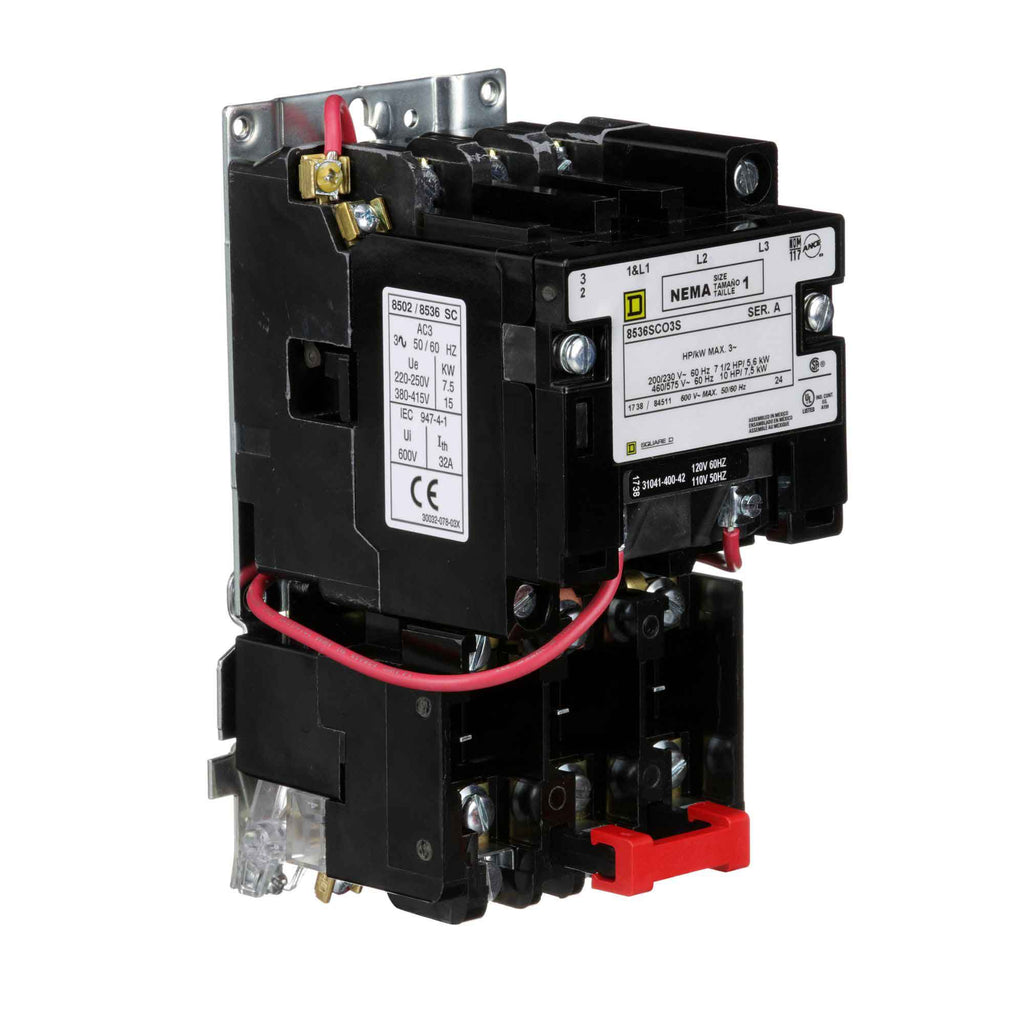

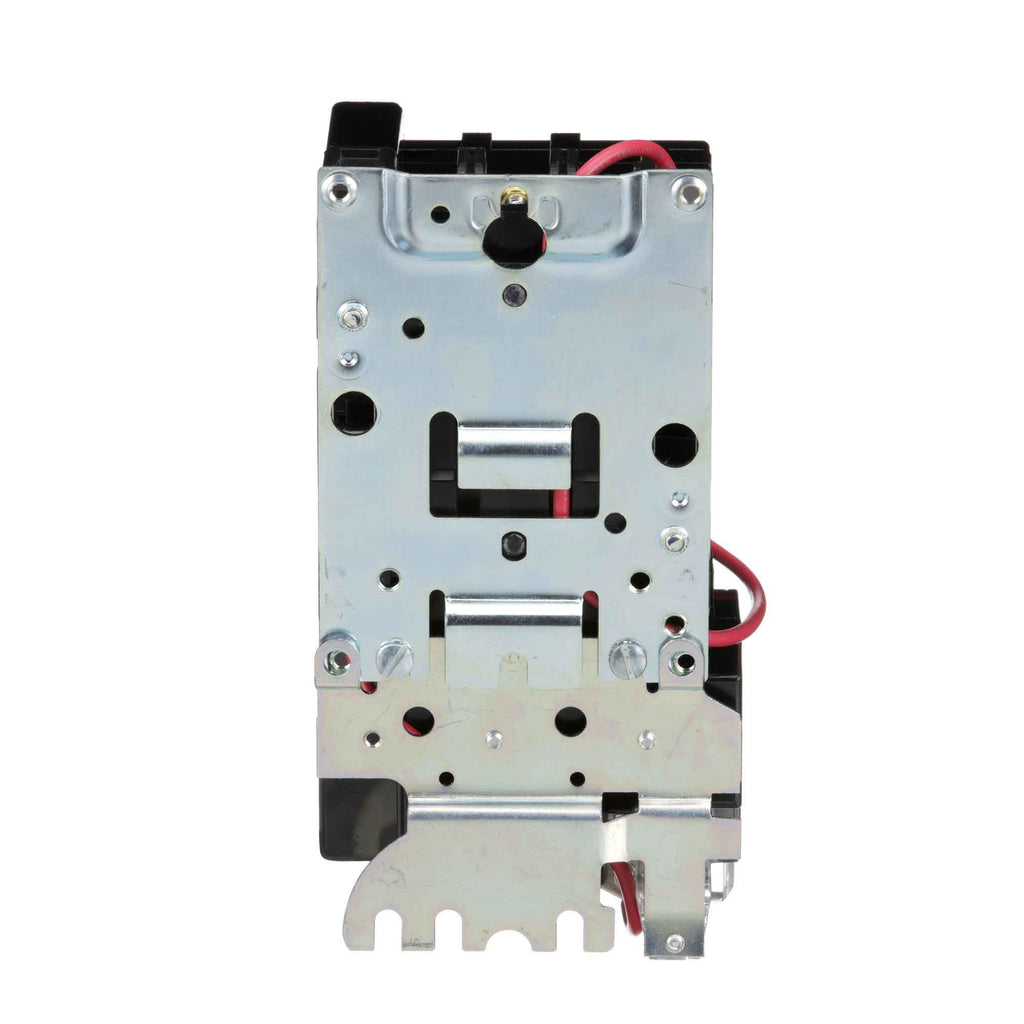

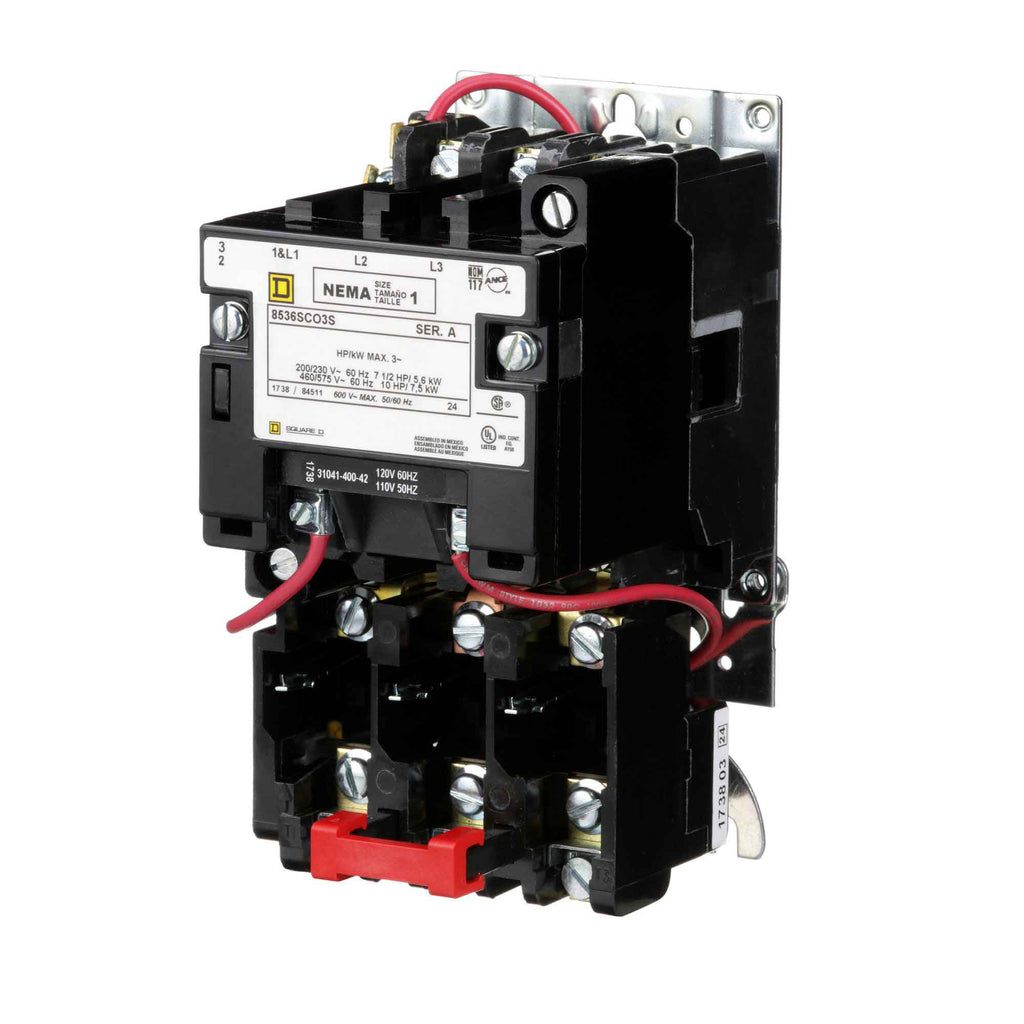

8536SCO3V08 is a Square D 3 pole motor starter rated for 27 amps and 600VAC with a 208VAC coil voltage.This NEMA Size 1 motor starter features a full voltage, non-reversing design in an open NEMA 1 enclosure. It supports 3-phase motors up to 10 HP at 460-575 VAC and 7.5 HP at 240 VAC. The starter is UL listed, CSA certified, and RoHS compliant, ensuring reliable and safe motor control. It mounts via surface installation and has a 5 kiloamp interrupt rating.

Key Specifications
• Amperage: 27 Amps
• Voltage: 600 VAC system voltage
• Coil Voltage: 208 VAC @ 60 Hz
• Poles: 3
• NEMA Size: 1
• Enclosure Type: Open (NEMA 1)
• Mounting Type: Surface
• Interrupt Rating: 5 kA
• Motor HP: 10 HP @ 460-575 VAC, 7.5 HP @ 240 VAC
• Certifications: UL Listed, CSA Certified, RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8536SCO3V08
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 8536
• Type : SCG
• Voltage : 600
• Amperage : 27
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 7 1/2 hp HP @ 3 Phase - 240V 7 1/2 hp HP @ 3 Phase - 480V 10 hp
• Configuration : Nonreversing
• Aux Contacts : No Auxiliary Contacts
• Coil Voltage Maximum : 208 VAC
• Nema Rating : 1
• Nema Starter Size : 1

Product Data

• UPC : 785901767916
• GTIN : 00785901767916
• Country of Origin : Mexico
• Dimensions : 6.81 in (172.96 mm) x 3.50 in (88.90 mm) x 4.22 in (107.19 mm) (Height x Width x Depth)
• Weight : 4.01
• Certification : CSA, UL Listed
