8536SCO3V03S - Square D 27A 600V 3 Pole 3 Phase NEMA 1 Motor Starter with 240V Coil

8536SCO3V03S

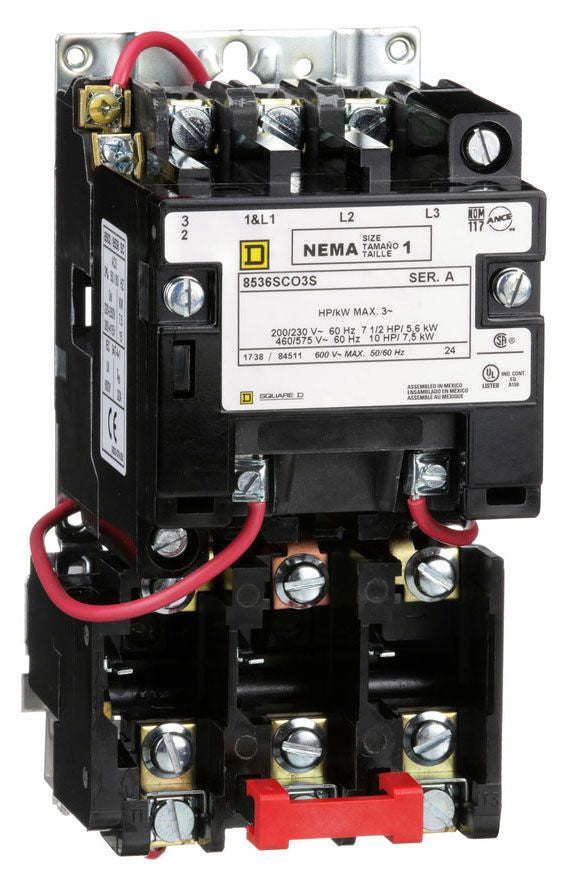

8536SCO3V03S is a Square D NEMA Type S motor starter designed for 3 phase motor control applications. It features a 27 amp rating and supports up to 10 HP at 460VAC with a 240V coil.This motor starter is a non-reversing, 3 pole, Size 1 unit with an open enclosure and a 5kA short circuit current rating (SCCR). It uses melting alloy overload relays and is UL Listed and CSA Certified for reliable performance in industrial environments.

• Amperage: 27A
• Voltage: 600V system, 240VAC coil
• Poles: 3
• Phase: 3
• Mounting Type: Surface
• NEMA Rating: NEMA 1
• Size: 1
• Horsepower: 7.5HP @ 200/230VAC, 10HP @ 460/575VAC
• Interrupt Rating: 5kA SCCR
• Trip Unit: Melting alloy overload
• Enclosure: Open
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8536SCO3V03S
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Voltage : 600
• Amperage : 27
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LSIGA - Long-Time, Short-Time, Instantaneous and Ground Fault Alarm
• Coil Voltage Maximum : 240
• Coil Voltage Minimum : 220
• Nema Rating : 1
• Protection : Solid State

Product Data

• UPC : 785901340959
• GTIN : 785901340959
• Dimensions : 6.81 in (172.96 mm) x 3.50 in (88.90 mm) x 4.22 in (107.19 mm) (Height x Width x Depth)
• Weight : 5 lb
