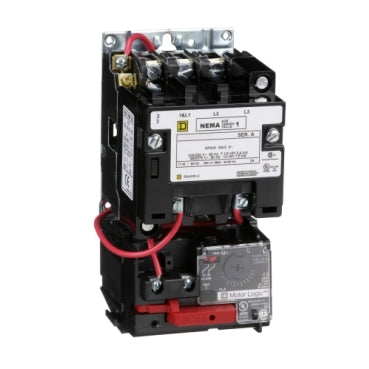

8536SCO3V03H30S - Square D NEMA Size 1 Motor Starter 27A 240VAC Coil 3 Poles Non-Reversing Open Enclosure

8536SCO3V03H30S

8536SCO3V03H30S is a Square D NEMA Size 1 motor starter designed for reliable motor control with a 240 VAC coil and three poles in an open enclosure.This non-reversing motor starter features a 27 ampere rating and supports motor horsepower ratings of 7.5 HP at 208-240 VAC and 10 HP at 460-575 VAC for three-phase motors. It includes a thermal overload alloy for motor protection and is built for long mechanical life and electrical endurance. The starter is customizable with multiple overload relay options and designed to streamline installation, wiring, and maintenance.

• Manufacturer: Square D (Schneider Electric)
• Type: NEMA Motor Starter, Type S Non-Reversing
• Poles: 3 Pole
• Amperage: 27 Amps
• Coil Voltage: 240 VAC
• Horsepower Ratings: 7.5 HP @ 208-240 VAC, 10 HP @ 460-575 VAC (3 Phase)
• Enclosure Type: Open
• NEMA Size: 1
• Overload Type: Thermal Overload Alloy
• Short Circuit Current Rating: Up to 100 kA at 480 VAC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8536SCO3V03H30S
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 8536
• Type : SCG
• Voltage : 600
• Amperage : 27
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 240 VAC
• Coil Voltage Minimum : 220
• Nema Starter Size : 1

Product Data

• UPC : 78590113382
• GTIN : 00785901133827
• Country of Origin : Mexico
• Dimensions : 6.81 in (172.96 mm) x 3.50 in (88.90 mm) x 4.22 in (107.19 mm) (Height x Width x Depth)
• Weight : 5
