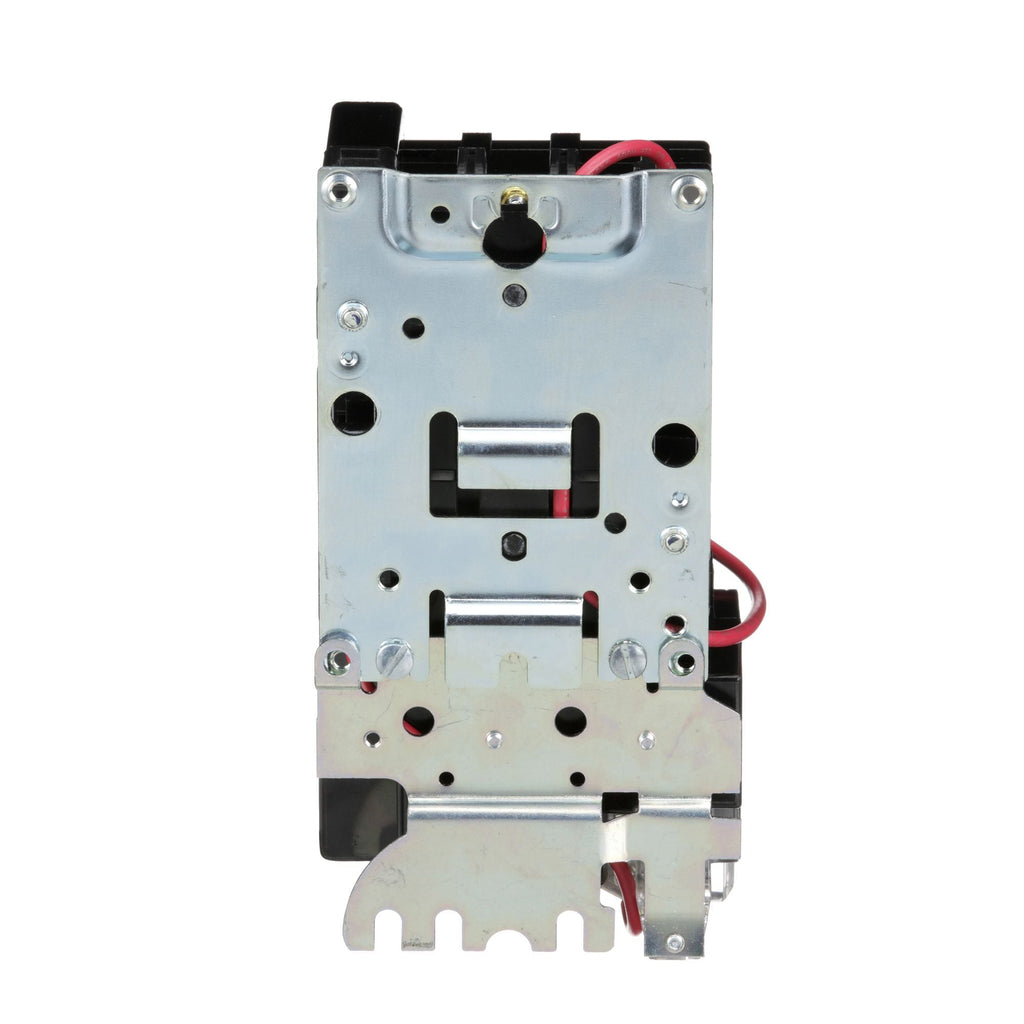

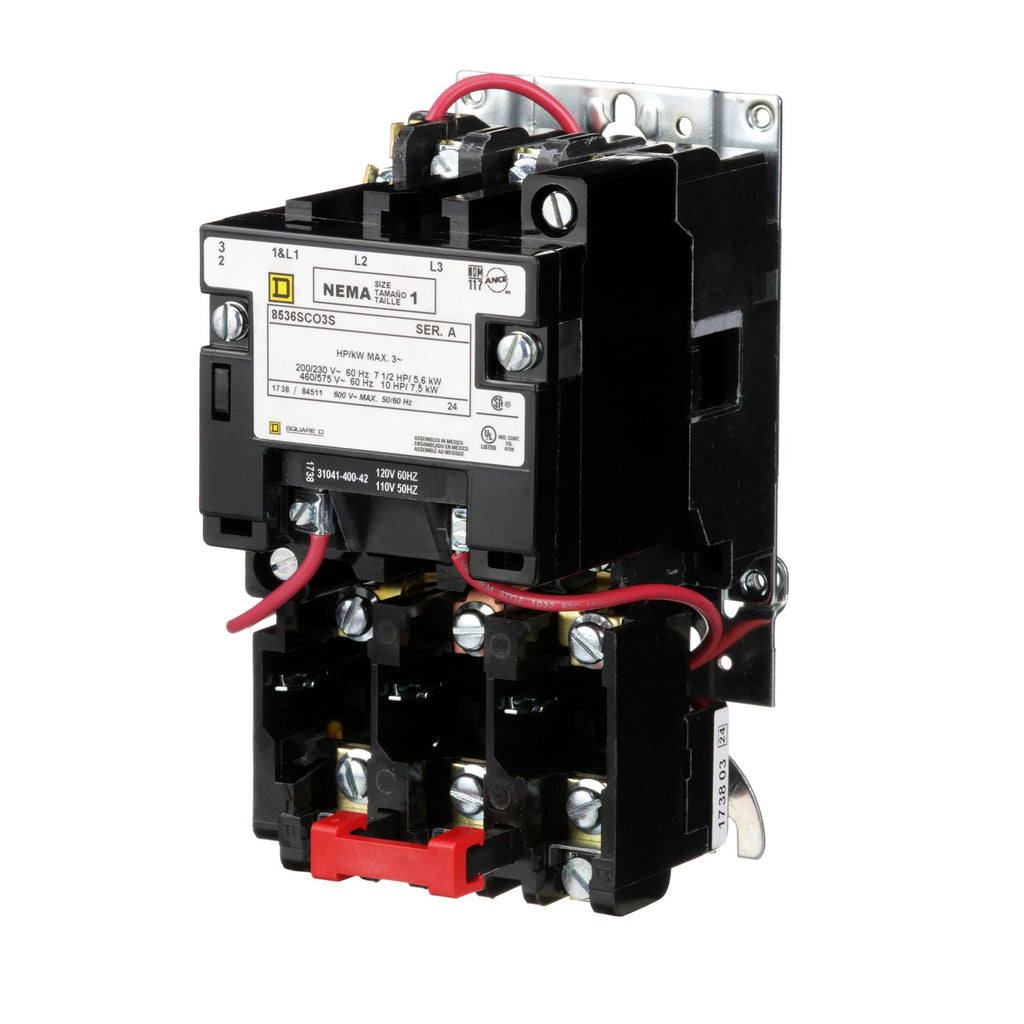

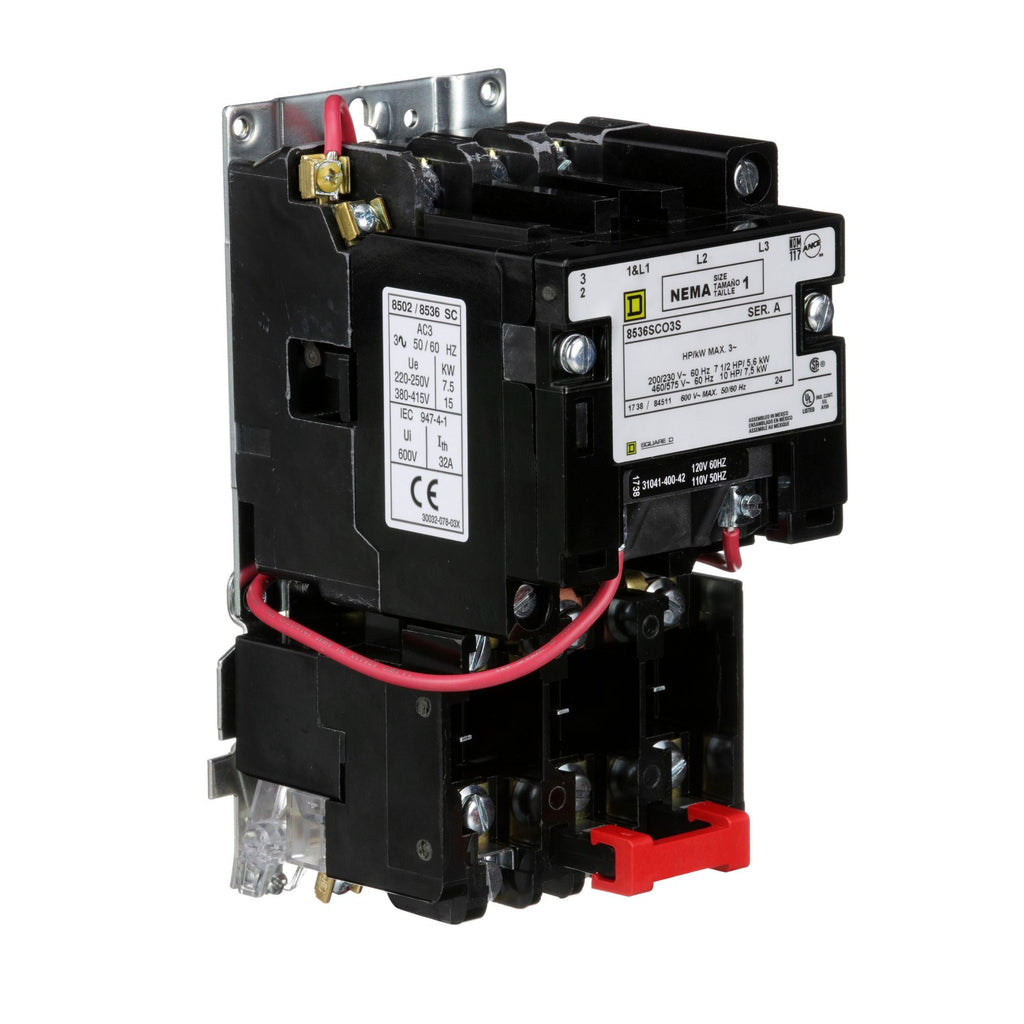

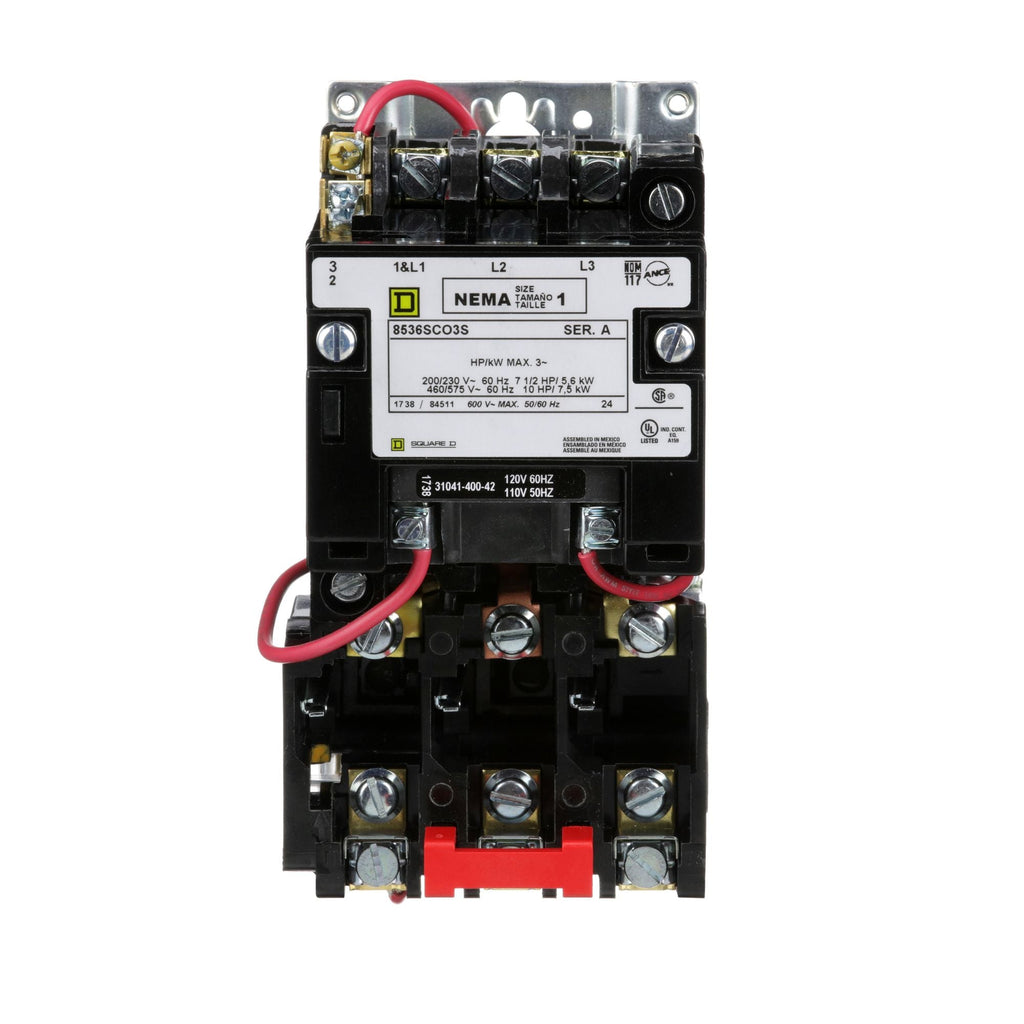

8536SCO3V03 - Square D 27A 240VAC 3-Pole NEMA 1 Non-Reversing Magnetic Starter Open Enclosure

8536SCO3V03

8536SCO3V03 is a Square D Type S 3-pole non-reversing magnetic motor starter designed for full-voltage starting and stopping of AC squirrel cage motors. This NEMA 1 size starter features a 240VAC coil, 27A current rating, and is suitable for 3-phase applications. It comes with a thermal melting alloy overload relay and is UL Listed and CSA Certified for reliable indoor use. This starter is built for durability and easy installation, offering flexible overload relay options and a robust design for long mechanical and electrical life. The open enclosure allows for quick access and maintenance, making it ideal for a wide range of industrial and commercial motor control applications.

• Part Number: 8536SCO3V03
• Manufacturer: Square D
• Series: Type S
• Amperage: 27A
• Coil Voltage: 240VAC (220/240VAC 50/60Hz)
• Poles: 3
• Mounting Type: Surface
• Interrupt Rating: 5 kA
• Frame/Size: NEMA 1
• Overload Relay: Thermal Melting Alloy
• Enclosure: Open
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8536SCO3V03
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 8536
• Type : SCG
• Voltage : 600
• Amperage : 27
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 7 1/2 hp HP @ 3 Phase - 240V 7 1/2 hp HP @ 3 Phase - 480V 10 hp
• Configuration : Nonreversing
• Aux Contacts : No Auxiliary Contacts
• Coil Voltage Maximum : 240 VAC
• Coil Voltage Minimum : 220
• Nema Rating : 1
• Nema Starter Size : 1

Product Data

• UPC : 785901872139
• GTIN : 00785901872139
• Country of Origin : Mexico
• Dimensions : 6.81 in (172.96 mm) x 3.50 in (88.90 mm) x 4.22 in (107.19 mm) (Height x Width x Depth)
• Weight : 4.041 lb
• Certification : CSA, UL Listed
