8536SCO3V02H308S - Square D 27A 3-Pole NEMA Size 1 Non-Reversing Motor Starter 600VAC Coil 110/120V AC

8536SCO3V02H308S

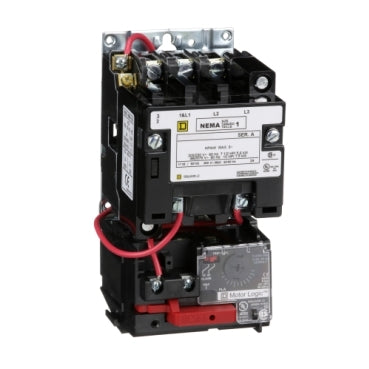

8536SCO3V02H308S is a Square D 3-pole NEMA Size 1 non-reversing motor starter rated for 27 amperes and designed for full voltage starting and stopping of AC squirrel cage motors.This motor starter supports 3-phase motors with horsepower ratings of 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC. It features a Motor Logic solid state overload relay adjustable from 1.5A to 4.5A, screw clamp terminals, and a coil voltage of 110/120 V AC. The starter has a maximum short circuit current rating (SCCR) of 100 kA per UL508A when protected by appropriate circuit breakers or fuses.

Key Specifications
• Amperage Rating: 27 A
• Voltage Rating: 600 V AC maximum
• Poles: 3
• NEMA Size: 1
• Starter Type: Non-Reversing
• Coil Voltage: 110/120 V AC
• Horsepower Ratings: 7.5 HP at 200/230 V AC, 10 HP at 460/575 V AC
• Overload Relay: Motor Logic solid state, class 10/20, adjustable 1.5A to 4.5A
• Terminal Type: Screw clamp
• Short Circuit Current Rating: 100 kA (with proper protection)
• Phase: 3-phase
• Certifications: UL508A compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: 8536SCO3V02H308S
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Amperage : 27
• Configuration : Nonreversing
• Coil Voltage Maximum : 120 VAC
• Nema Starter Size : 1



Product Data

• UPC : 078590139921
• GTIN : 00785901399216
• Country of Origin : Mexico
• Dimensions : 6.81 in (172.96 mm) x 3.50 in (88.90 mm) x 4.22 in (107.19 mm) (Height x Width x Depth)
• Weight : 5
