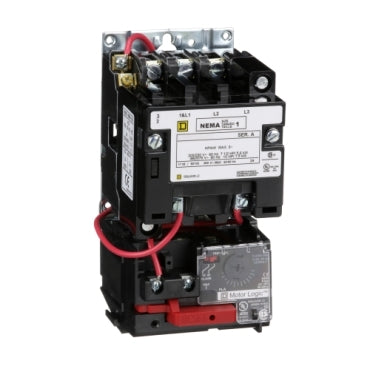

8536SCO3V01H30S - Square D 27A 600VAC 3 Pole NEMA Size 1 Motor Starter with 24V Coil

8536SCO3V01H30S

8536SCO3V01H30S is a Square D 3 pole motor starter designed for industrial motor control applications.This NEMA Size 1 motor starter features a 27 ampere rating and supports voltages up to 600VAC. It is a non-reversing starter equipped with a 24V coil and is suitable for 3-phase motors. The starter provides reliable motor protection and control with a high interrupt rating, making it ideal for demanding environments.

• Amperage: 27 Amps
• Voltage: 600 VAC
• Poles: 3
• Mounting Type: Open
• Coil Voltage: 24 V AC
• Size/Frame: NEMA Size 1
• Type: Non-Reversing Motor Starter
• Interrupt Rating: Up to 100 kA SCCR
• Phase: 3-Phase
• Horsepower Ratings: 7.5 HP at 200/230 VAC, 10 HP at 460 VAC
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8536SCO3V01H30S
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 8536
• Type : SCG
• Voltage : 6
• Amperage : 27
• Phase : 3
• Poles : 3
• Configuration : Nonreversing
• Coil Voltage Maximum : 24
• Coil Voltage Minimum : 24

Product Data

• Dimensions : 6.81 in (172.96 mm) x 3.50 in (88.90 mm) x 4.22 in (107.19 mm) (Height x Width x Depth)
• Weight : 3.999
