Product Info
- Manufacturer:Square D
- Sub-Category:Motor Starter
Description
8536SCG3V06

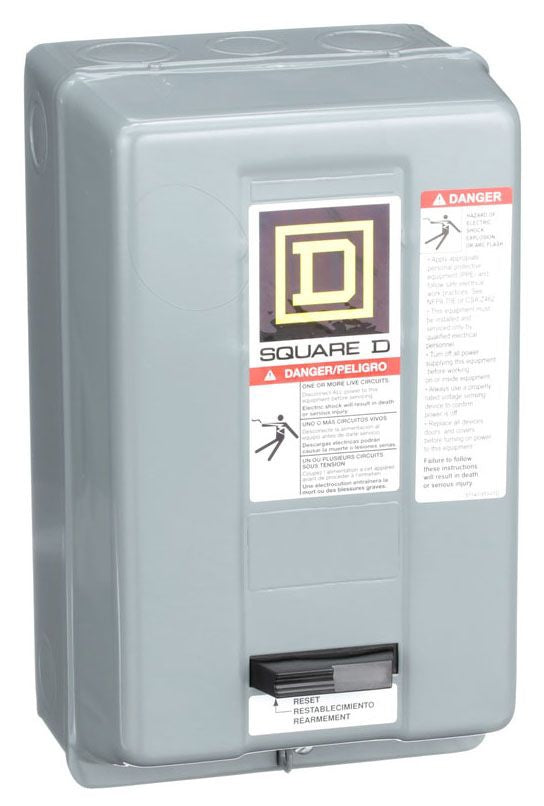

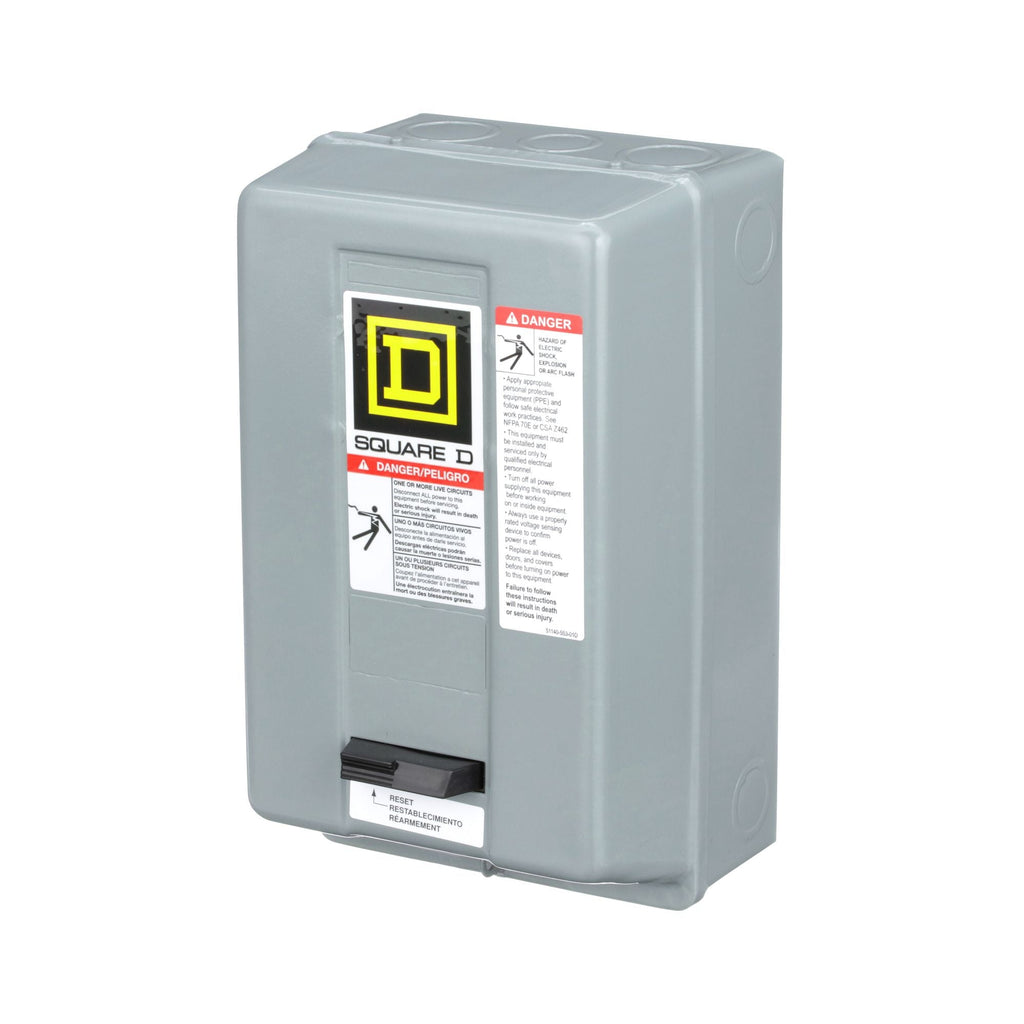

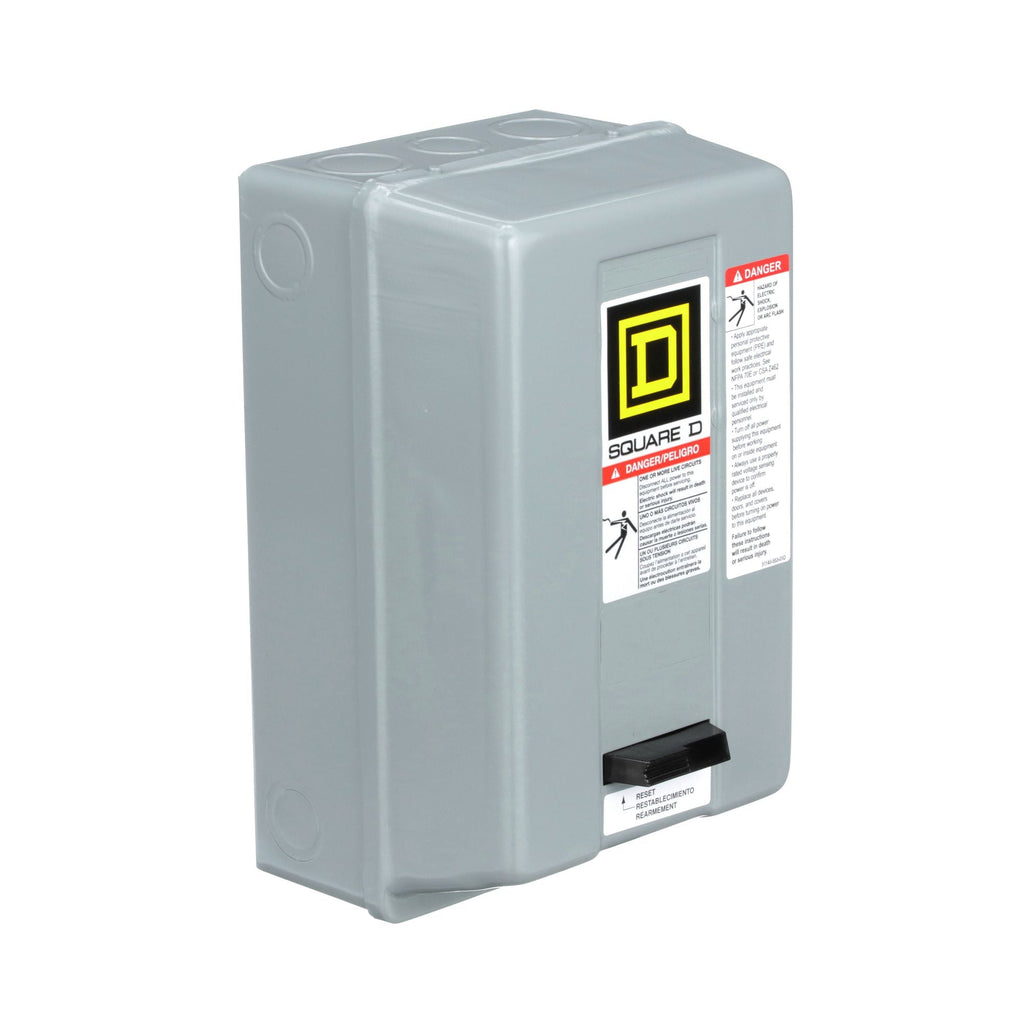

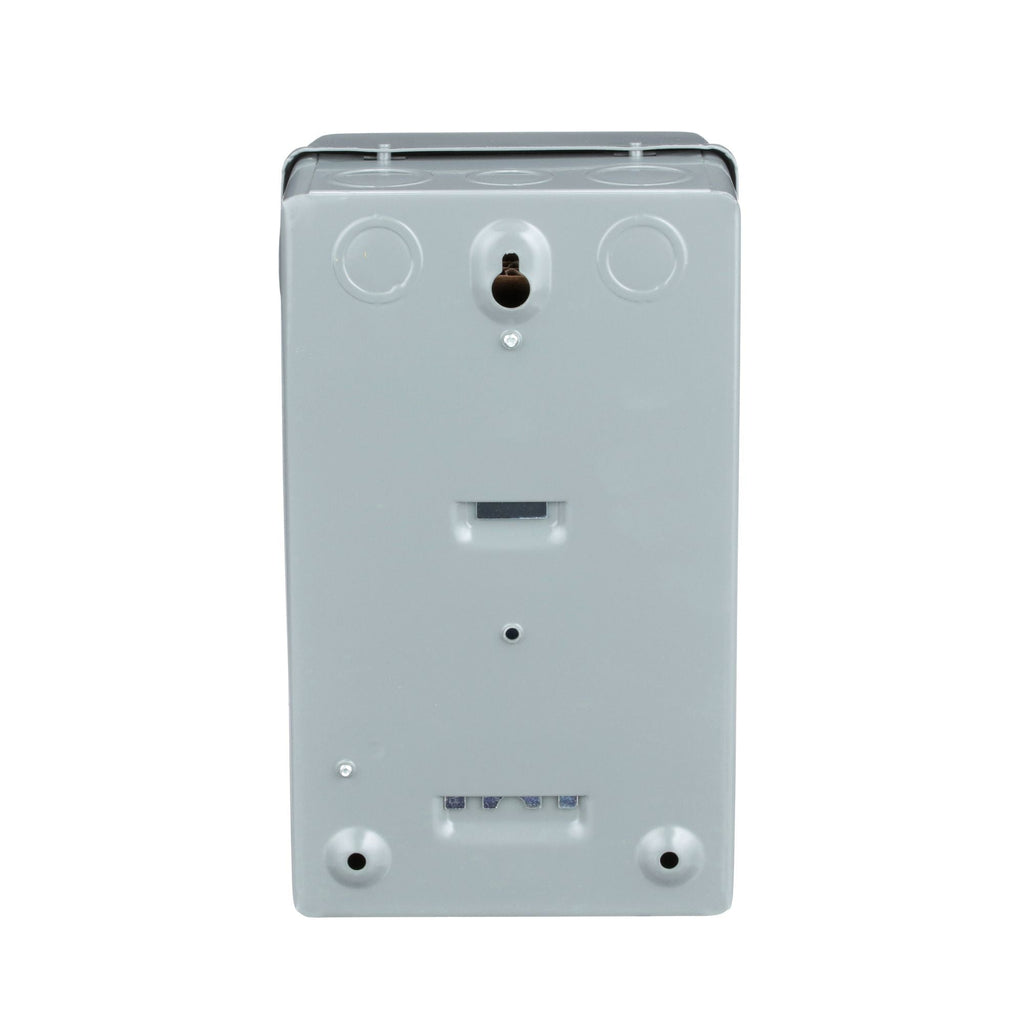

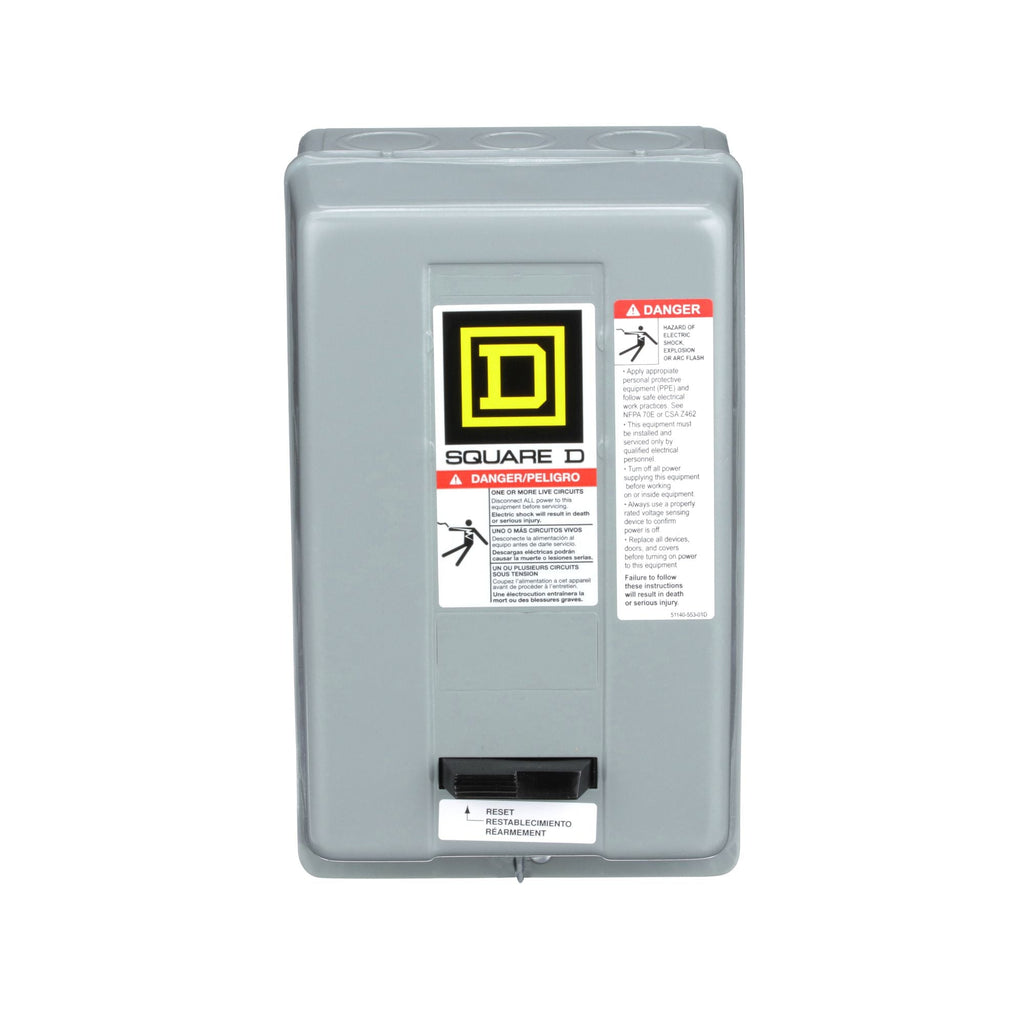

8536SCG3V06 is a Square D 3 pole motor starter rated for 27 amps and 480 volts with a NEMA 1 enclosure.This 8536 frame motor starter features a 3-phase, 3-pole design with a 440V AC coil at 50Hz and 480V AC coil at 60Hz, suitable for industrial motor control applications.
- Amperage: 27 Amps
- Voltage: 480 VAC
- Poles: 3
- Phase: 3
- Coil Voltage: 440V AC (50Hz), 480V AC (60Hz)
- Frame/Series: 8536
- Mounting Type: Surface
- Enclosure: NEMA 1
- Interrupt Rating: 5 kA at 600 V AC
- Trip Unit: Melting Alloy
- Manufacturer: Square D
- Certifications: TAA Compliant
Specifications
- Part Number: 8536SCG3V06
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Class 8536
- Type : SCG
- Voltage : 600
- Amperage : 27
- Phase : 3
- Poles : 3
- Horse Power : HP @ 3 Phase - 208V 7 1/2 hp HP @ 3 Phase - 240V 7 1/2 hp HP @ 3 Phase - 480V 10 hp
- Configuration : Nonreversing
- Aux Contacts : No Auxiliary Contacts
- Coil Voltage Maximum : 480 VAC
- Coil Voltage Minimum : 440
- Nema Rating : 1
- Nema Starter Size : 1
- Enclosure : 1
Product Data
- UPC : 785901864714
- GTIN : 00785901864714
- Country of Origin : Mexico
- Dimensions : 10.00 in (254.00 mm) x 6.00 in (152.40 mm) x 5.56 in (141.22 mm) (Height x Width x Depth)
- Weight : 7.41
- Certification : CSA, UL Listed
