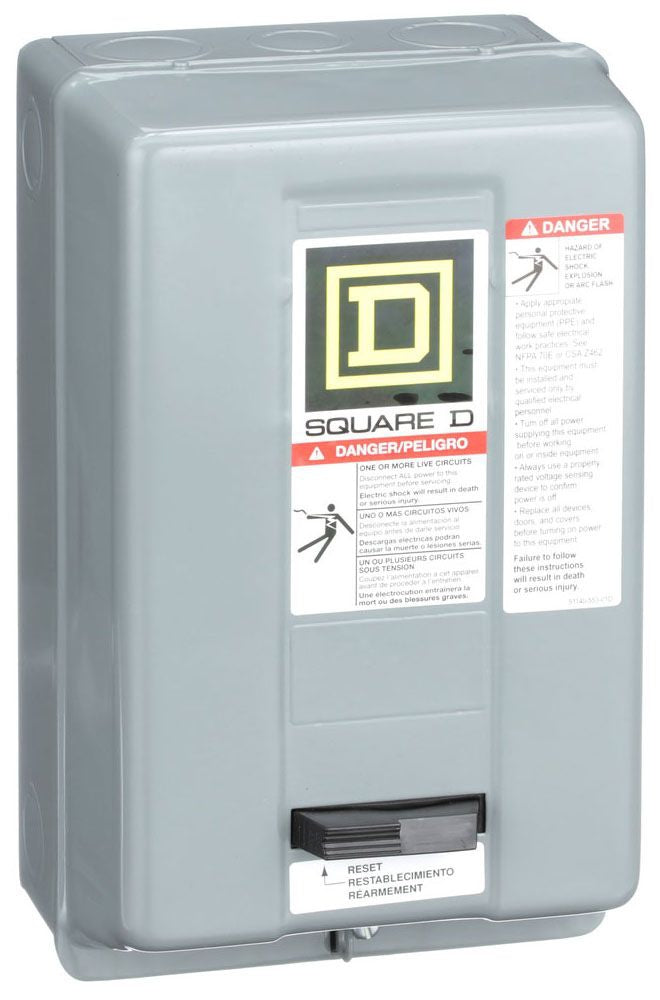

8536SCG1V02S - Square D 27A 2-Pole NEMA 1 Non-Reversing Motor Starter 120VAC Coil 5kA SCCR

8536SCG1V02S

8536SCG1V02S is a Square D non-reversing motor starter designed for full voltage starting and stopping of AC squirrel cage motors.This motor starter features a 27 amp rating with a 5 kiloamp interrupt rating (SCCR), 2 poles, and a NEMA 1 painted sheet steel enclosure. It operates with a 110/120 VAC coil voltage at 50/60 Hz and supports motor loads up to 2 HP at 115 VAC and 3 HP at 230 VAC. The starter is a Size 1, Type S model suitable for single-phase applications and includes a melting alloy trip unit.

Key Specifications
• Amperage: 27 A
• Voltage: 600 VAC max, Coil Voltage 110/120 VAC 50/60 Hz
• Poles: 2
• Mounting Type: NEMA 1 enclosure, painted sheet steel
• Interrupt Rating (SCCR): 5 kA
• Series/Frame: Size 1, Type S
• Trip Unit: Melting alloy
• Motor Ratings: 2 HP at 115 VAC, 3 HP at 230 VAC
• Phase: Single-phase
• Action: Non-reversing
• Certifications: NEMA construction standard
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: 8536SCG1V02S
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Voltage : 600
• Amperage : 27
• Phase : 1
• Poles : 2
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Coil Voltage Maximum : 120 VAC
• Nema Rating : 1
• Nema Starter Size : 1
• Protection : Solid State



Product Data

• UPC : 785901608592
• GTIN : 00785901608592
• Country of Origin : Mexico
• Dimensions : 10.00 in (254.00 mm) x 6.00 in (152.40 mm) x 5.56 in (141.22 mm) (Height x Width x Depth)
• Weight : 7.22 lb
• Certification : UL Listed; CSA; NEMA
