Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Starter
Description
8536SCA3V02H30S

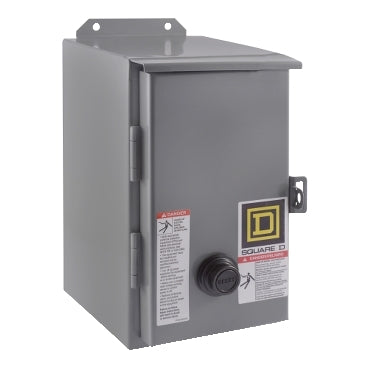

8536SCA3V02H30S is a Square D Class 8536 3 Pole 27A 600VAC motor starter designed for reliable motor control in industrial applications. This NEMA Size 1 nonreversing starter features a 110VAC coil and is suitable for 3-phase systems. Heater packs are required and sold separately. This motor starter is built for durability and safety, supporting up to 10 HP at 460 VAC and rated for up to 100 kA SCCR. It is ideal for use in motor control centers and industrial environments where dependable performance is critical.
- Part Number: 8536SCA3V02H30S
- Manufacturer: Square D
- Type: Motor Starter
- Series: Class 8536
- Poles: 3
- Amperage: 27A
- Voltage: 600VAC
- Mounting Type: NEMA Size 1
- Interrupt Rating: 100 kA SCCR
- Coil Voltage: 110VAC
- Phase: 3 Phase
- HP Rating: 10 HP at 460 VAC
Specifications
- Part Number: 8536SCA3V02H30S
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Class 8536
- Type : SCA
- Voltage : 600
- Amperage : 27
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 110
- Nema Rating : 1
- Enclosure : 12/3R
Product Data
- UPC : 785901279877
- GTIN : 00785901279877
- Country of Origin : Mexico
- Dimensions : 12.75 in (323.85 mm) x 6.38 in (162.05 mm) x 8.53 in (216.66 mm) (Height x Width x Depth)
- Weight : 16.239
- Certification : UL, CSA, NEMA
