- Manufacturer:Schneider Electric
- Sub-Category:Motor Starter
Description
8536SBO1V02S

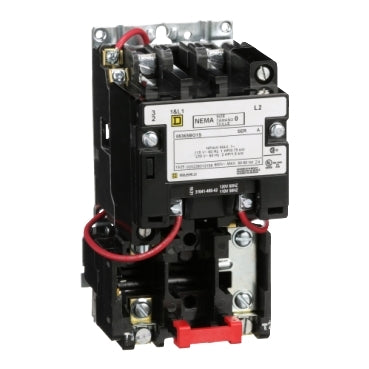

8536SBO1V02S is a Square D Class 8536 motor starter designed for 600V single-phase applications with an 18 Amp rating and 2 poles.8536SBO1V02S features a NEMA Size 0 frame, non-reversing full voltage operation, and a separate control circuit. It supports a coil voltage of 110/120 VAC and has a short circuit current rating (SCCR) of 5 kiloamps. This starter is suitable for controlling motors up to 1 HP at 115 VAC and 2 HP at 230 VAC. Heater packs are sold separately.
- Amperage: 18 Amps
- Voltage: 600 VAC (motor), 110/120 VAC coil
- Poles: 2
- Mounting Type: NEMA Size 0
- Interrupt Rating (SCCR): 5 kA
- Series/Frame: Class 8536, NEMA 0
- Trip Unit: Non-reversing, full voltage
- Phase: Single-phase
- Horsepower Ratings: 1 HP at 115 VAC, 2 HP at 230 VAC
- Control Circuit: Separate
- Enclosure: Open
Additional Information
Non-Reversing
Specifications
- Part Number: 8536SBO1V02S
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Class 8536
- Type : SBO
- Voltage : 600
- Amperage : 18
- Phase : 1
- Configuration : Nonreversing
- Aux Contacts : No Auxiliary Contacts
- Coil Voltage Maximum : 120 VAC
- Nema Starter Size : 0
Product Data
- UPC : 785901080343
- GTIN : 00785901080343
- Country of Origin : Mexico
- Dimensions : 6.81 in (172.96 mm) x 3.50 in (88.90 mm) x 4.22 in (107.19 mm) (Height x Width x Depth)
- Weight : 3.9
- Certification : UL Listed; CSA; NEMA
