Product Info
- Manufacturer:Square D
- Sub-Category:Motor Starter
Description
8536SBG2V03

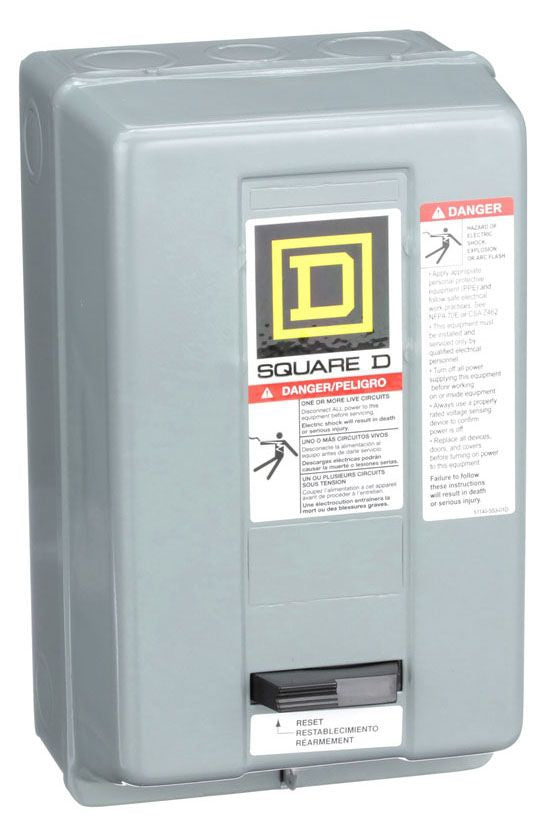

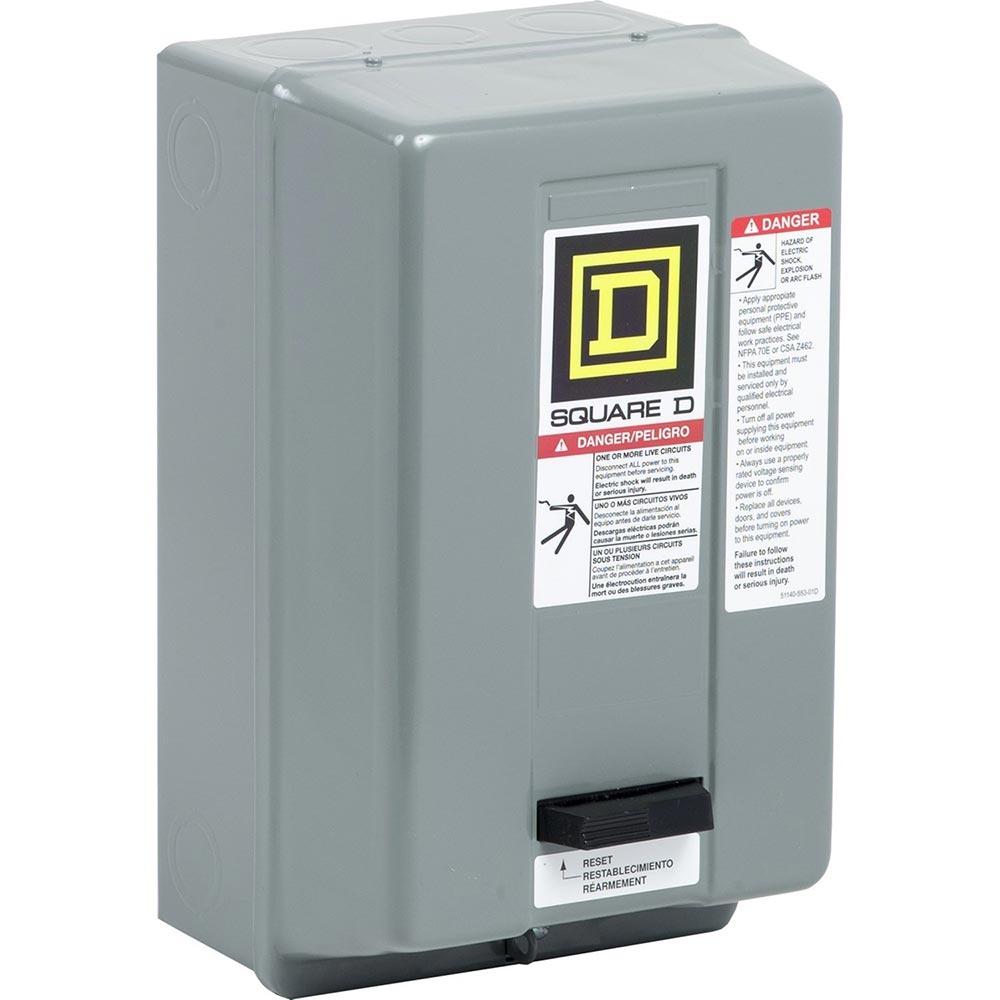

8536SBG2V03 is a Class 8536 NEMA Motor Starter by Schneider Electric (Square D), designed for reliable control and lighting applications. This catalog number uses Square D suffix conventions for coil voltage, enclosure features, and lighting contactor style. See the decoded suffix summary below.
- Family: Class 8536 NEMA Motor Starter
- Application: Industrial control, motor starting, or lighting loads
- Mounting: Panel/enclosure as configured
- Manufacturer: Schneider Electric (Square D)
- V03: 208 V 60 Hz coil
Additional Information
Non-Reversing
Specifications
- Part Number: 8536SBG2V03
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Class 8536
- Type : SBG
- Voltage : 600
- Amperage : 18
- Phase : 3
- Poles : 3
- Horse Power : HP @ 3 Phase - 208V 3 hp HP @ 3 Phase - 240V 3 hp HP @ 3 Phase - 480V 5 hp
- Aux Contacts : No Auxiliary Contacts
- Coil Voltage Maximum : 240 VAC
- Coil Voltage Minimum : 220
- Nema Rating : 0
- Nema Starter Size : 0
- Enclosure : 1
Product Data
- UPC : 785901869108
- GTIN : 00785901869108
- Country of Origin : Mexico
- Dimensions : 10.00 in (254.00 mm) x 6.00 in (152.40 mm) x 5.56 in (141.22 mm) (Height x Width x Depth)
- Weight : 7.41
- Certification : CSA, UL Listed
