8536SBG1V02S - Square D Type S Full Voltage Non-Reversing Motor Starter, NEMA Size 0, 18A, 120V/230V, 2-Pole, 1-Phase, NEMA 1 Enclosure, Melting Alloy Overload, UL/CSA Certified

8536SBG1V02S

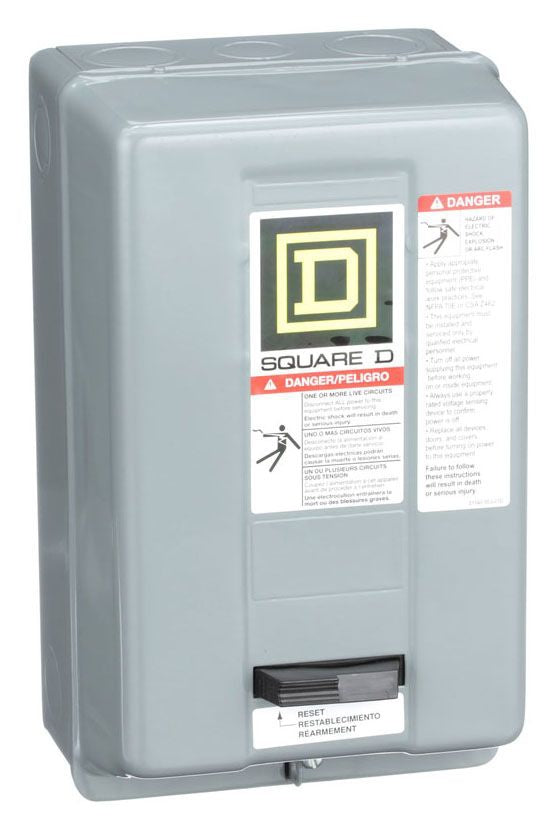

8536SBG1V02S is a Square D Type S full voltage, non-reversing motor starter designed for reliable single-phase motor control in industrial and commercial applications.

This NEMA Size 0 starter features a 2-pole contactor, melting alloy overload protection, and a NEMA 1 general-purpose enclosure. It is rated for 18A continuous current, with motor ratings of 1 HP at 115V AC and 2 HP at 230V AC. The unit operates with a 120V AC coil (50/60 Hz) and includes screw clamp terminals for easy installation. Built for durability and compliance, it carries UL and CSA certifications and is suitable for use in construction, industrial, and building automation markets.

Key Specifications
• Amperage: 18A line rated
• Voltage: 120V AC coil (50/60 Hz), 600V AC maximum
• Poles: 2
• Mounting Type: NEMA 1 painted sheet steel enclosure
• Interrupt Rating: 5 kA SCCR (circuit-breaker or fuse)
• Series/Frame: Type S, Size 0
• Trip Unit: Melting alloy overload relay
• Certifications: UL Listed, CSA, NEMA
• Phase: 1-phase
• Motor HP: 1 HP @ 115V AC, 2 HP @ 230V AC
• Control Circuit: Separate, no pilot light or auxiliary contacts
• Terminal Type: Screw clamp

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Non-Reversing

Specifications

• Part Number: 8536SBG1V02S
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Voltage : 600
• Amperage : 18
• Phase : 1
• Poles : 2
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Coil Voltage Maximum : 120 VAC
• Nema Starter Size : 0
• Protection : Solid State

Product Data

• UPC : 785901080312
• GTIN : 785901080312
• Country of Origin : Mexico
• Dimensions : 10.00 in (254.00 mm) x 6.00 in (152.40 mm) x 5.56 in (141.22 mm) (Height x Width x Depth)
• Weight : 7.23 lb
• Certification : CSA, UL Listed
