Product Info
- Manufacturer:Square D
- Sub-Category:Motor Starter
Description

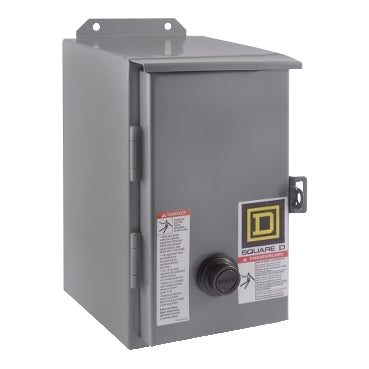

8536SBA2V02S
8536SBA2V02S is a Class 8536 NEMA Motor Starter by Schneider Electric (Square D), designed for reliable control and lighting applications. This catalog number uses Square D suffix conventions for coil voltage, enclosure features, and lighting contactor style. See the decoded suffix summary below.
- Family: Class 8536 NEMA Motor Starter
- Application: Industrial control, motor starting, or lighting loads
- Mounting: Panel/enclosure as configured
- Manufacturer: Schneider Electric (Square D)
- V02: 120 V 60 Hz coil
- S: Factory assembled/enclosed unit (per catalog build)
Additional Information
Non-Reversing
Specifications
- Part Number: 8536SBA2V02S
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Class 8536
- Type : SBA
- Voltage : 600
- Amperage : 18 Amp
- Phase : 3
- Poles : 3
- Horse Power : HP @ 3 Phase - 208V 3 hp HP @ 3 Phase - 240V 3 hp HP @ 3 Phase - 480V 5 hp
- Aux Contacts : No Auxiliary Contacts
- Coil Voltage Maximum : 120 VAC
- Coil Voltage Minimum : 110
- Nema Rating : 0
- Nema Starter Size : 0
- Enclosure : 12/3R
Product Data
- UPC : 785901877233
- GTIN : 00785901877233
- Country of Origin : Mexico
- Dimensions : 12.75 in (323.85 mm) x 6.38 in (162.05 mm) x 8.53 in (216.66 mm) (Height x Width x Depth)
- Weight : 12.45
- Certification : CSA, UL Listed
