Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Starter
Description
8536SAO12V03H30

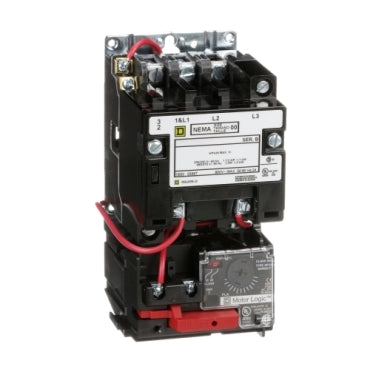

8536SAO12V03H30 is a Square D 3-pole motor starter designed for motor control applications with a 9 amp rating and 600VAC voltage capacity.
This motor starter features a Size 00 NEMA frame, suitable for 3-phase motors, with a coil voltage of 240V AC. It supports motor ratings of 1.5 HP at 220-240V and 2 HP at 460-575V. The starter is non-reversing and designed for open enclosure mounting. It is ideal for reliable motor starting and protection in industrial settings.
- Key Specifications
- Manufacturer: Square D
- Part Number: 8536SAO12V03H30
- Amperage: 9 Amps
- Voltage: 600 VAC
- Coil Voltage: 240 VAC
- Poles: 3
- Frame Size: 00 (NEMA)
- Motor HP Rating: 1.5 HP @ 220-240V, 2 HP @ 460-575V
- Type: Non-Reversing Motor Starter
- Mounting: Open Enclosure
- Part Number: 8536SAO12V03H30
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Class 8536
- Type : SAO
- Voltage : 6
- Amperage : 9
- Phase : 3
- Poles : 3
- Configuration : Nonreversing
- Coil Voltage Maximum : 240
- Coil Voltage Minimum : 220
- Country of Origin : Mexico
- Dimensions : 6.81 in (172.96 mm) x 3.50 in (88.90 mm) x 4.22 in (107.19 mm) (Height x Width x Depth)
- Weight : 5
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
