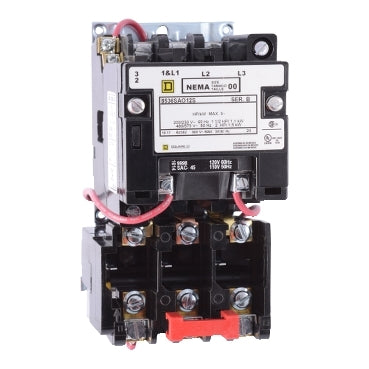

8536SAO12V03 - Square D NEMA 00 Motor Starter 9 Amp 3 Pole 240V Coil Open Enclosure

8536SAO12V03

8536SAO12V03 is a Square D NEMA 00 motor starter designed for reliable motor control applications.This motor starter features a 9 Amp rated current with a 3-pole configuration and an open NEMA 0 enclosure. It operates with a 240V AC coil voltage and supports three-phase motors with horsepower ratings of 1.5 HP at 220-230V AC and 2 HP at 460-575V AC. The starter is non-reversing and includes a melting alloy trip unit. It has a short circuit current rating (SCCR) of 5 kA at 600V AC, suitable for industrial and construction environments.

Key Specifications
• Amperage: 9 Amps
• Voltage: 240V AC coil voltage
• Poles: 3 Pole
• Enclosure Type: Open (NEMA 0)
• Size/Frame: NEMA 00
• Horsepower Ratings: 1.5 HP at 220-230V AC, 2 HP at 460-575V AC
• Trip Unit: Melting Alloy
• Short Circuit Current Rating (SCCR): 5 kA at 600V AC
• Phase: 3 Phase
• Non-Reversing Starter
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

Non-Reversing




Specifications

• Part Number: 8536SAO12V03
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 8536
• Type : SAO
• Voltage : 600
• Amperage : 9 Amp
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 1 1/2 hp HP @ 3 Phase - 240V 1 1/2 hp HP @ 3 Phase - 480V 2 hp
• Configuration : Nonreversing
• Aux Contacts : Not Applicable
• Coil Voltage Maximum : 240 VAC
• Coil Voltage Minimum : 220
• Nema Rating : 00
• Nema Starter Size : 0



Product Data

• UPC : 785901770718
• GTIN : 00785901770718
• Country of Origin : Mexico
• Dimensions : 6.81 in (172.96 mm) x 3.50 in (88.90 mm) x 4.22 in (107.19 mm) (Height x Width x Depth)
• Weight : 4.041
• Certification : CSA, UL Listed
