8536SAG12V02H30S - Square D 9A 3-Pole 120V Coil NEMA 00 Motor Starter Type S Non-Reversing

Save $4.03
SKU: 8536SAG12V02H30S-New
Condition: New
Price:
$507.97 $512.00
Stock:
3 in stock
Limited availability — we'll confirm stock immediately after your order.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

8536SAG12V02H30S - Essential Electric Supply
8536SAG12V02H30S - Square D 9A 3-Pole 120V Coil NEMA 00 Motor Starter Type S Non-Reversing - Essential Electric Supply
8536SAG12V02H30S - Square D 9A 3-Pole 120V Coil NEMA 00 Motor Starter Type S Non-Reversing - Essential Electric Supply
8536SAG12V02H30S - Square D 9A 3-Pole 120V Coil NEMA 00 Motor Starter Type S Non-Reversing - Essential Electric Supply
8536SAG12V02H30S - Square D 9A 3-Pole 120V Coil NEMA 00 Motor Starter Type S Non-Reversing - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
8536SAG12V02H30S - Essential Electric Supply
8536SAG12V02H30S - Square D 9A 3-Pole 120V Coil NEMA 00 Motor Starter Type S Non-Reversing - Essential Electric Supply
8536SAG12V02H30S - Square D 9A 3-Pole 120V Coil NEMA 00 Motor Starter Type S Non-Reversing - Essential Electric Supply
8536SAG12V02H30S - Square D 9A 3-Pole 120V Coil NEMA 00 Motor Starter Type S Non-Reversing - Essential Electric Supply
8536SAG12V02H30S - Square D 9A 3-Pole 120V Coil NEMA 00 Motor Starter Type S Non-Reversing - Essential Electric Supply

Description

8536SAG12V02H30S

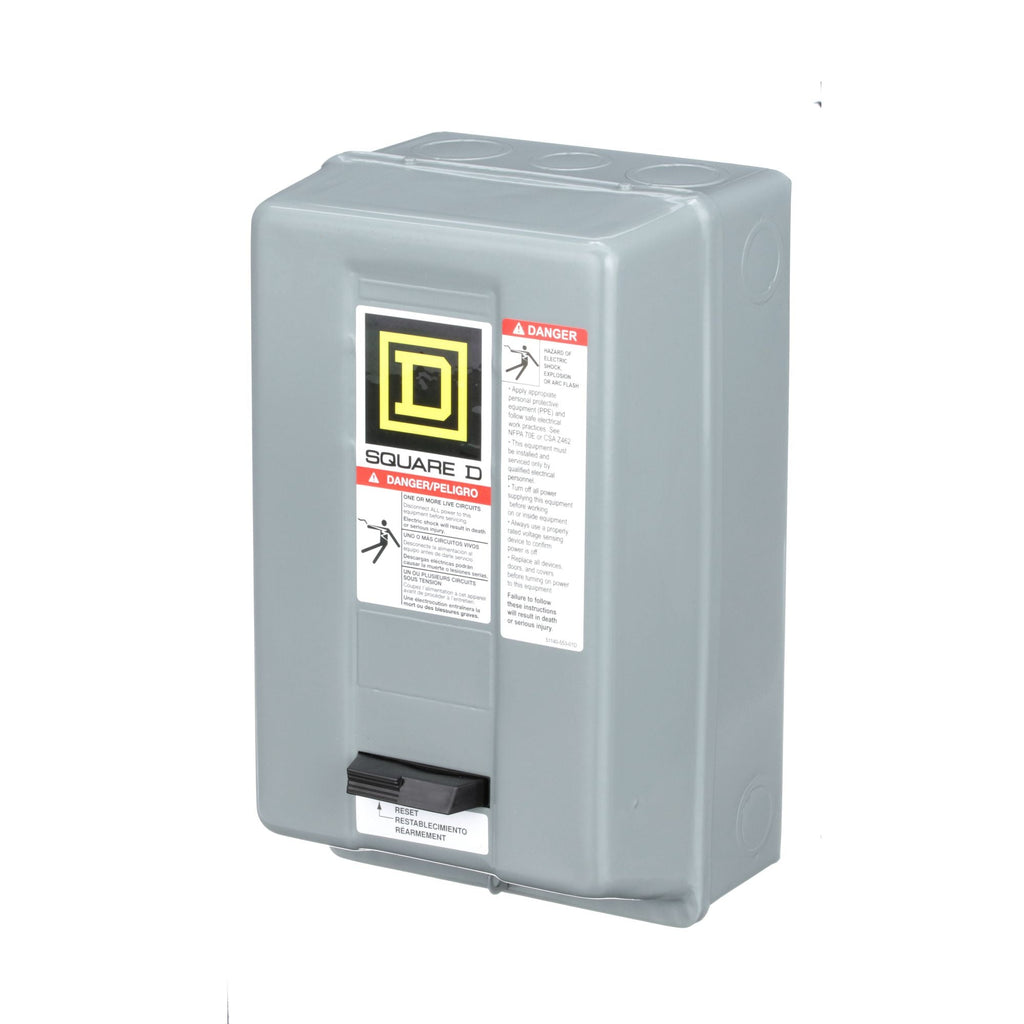

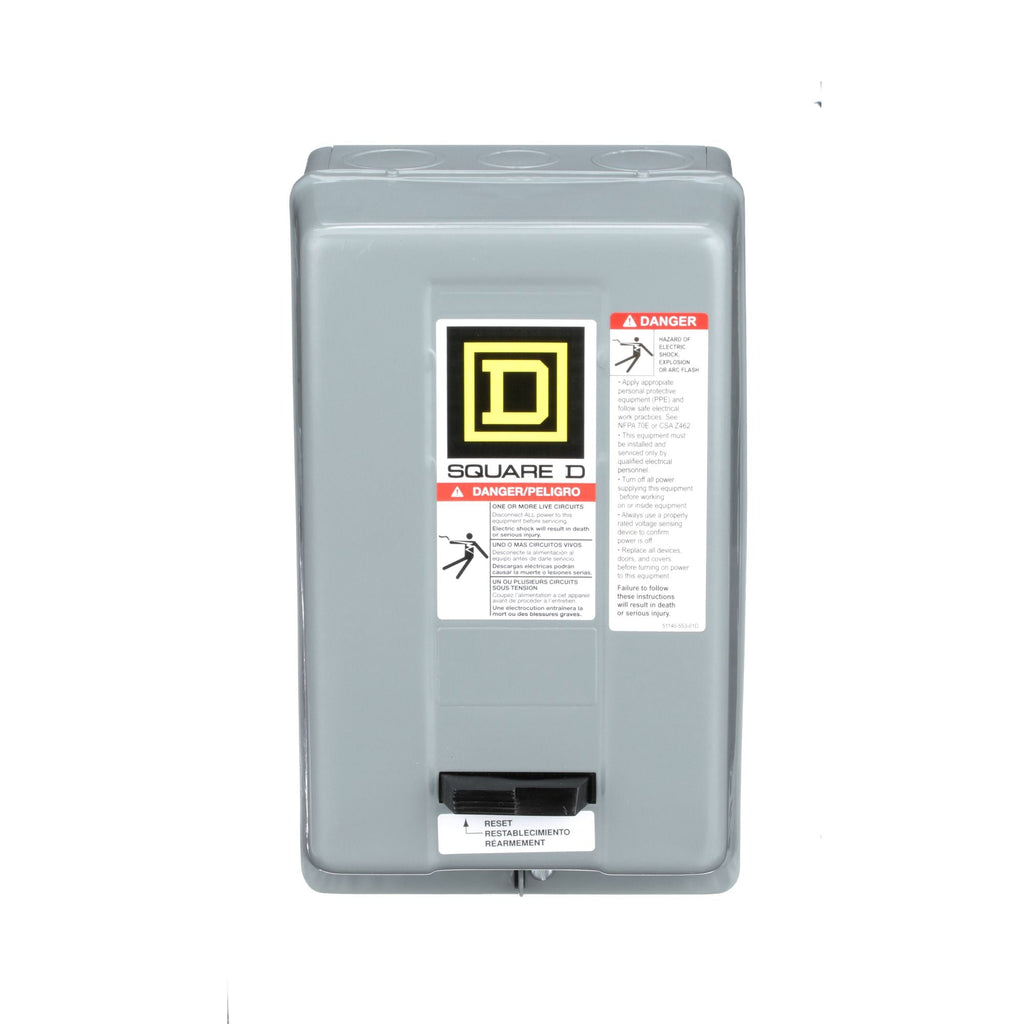

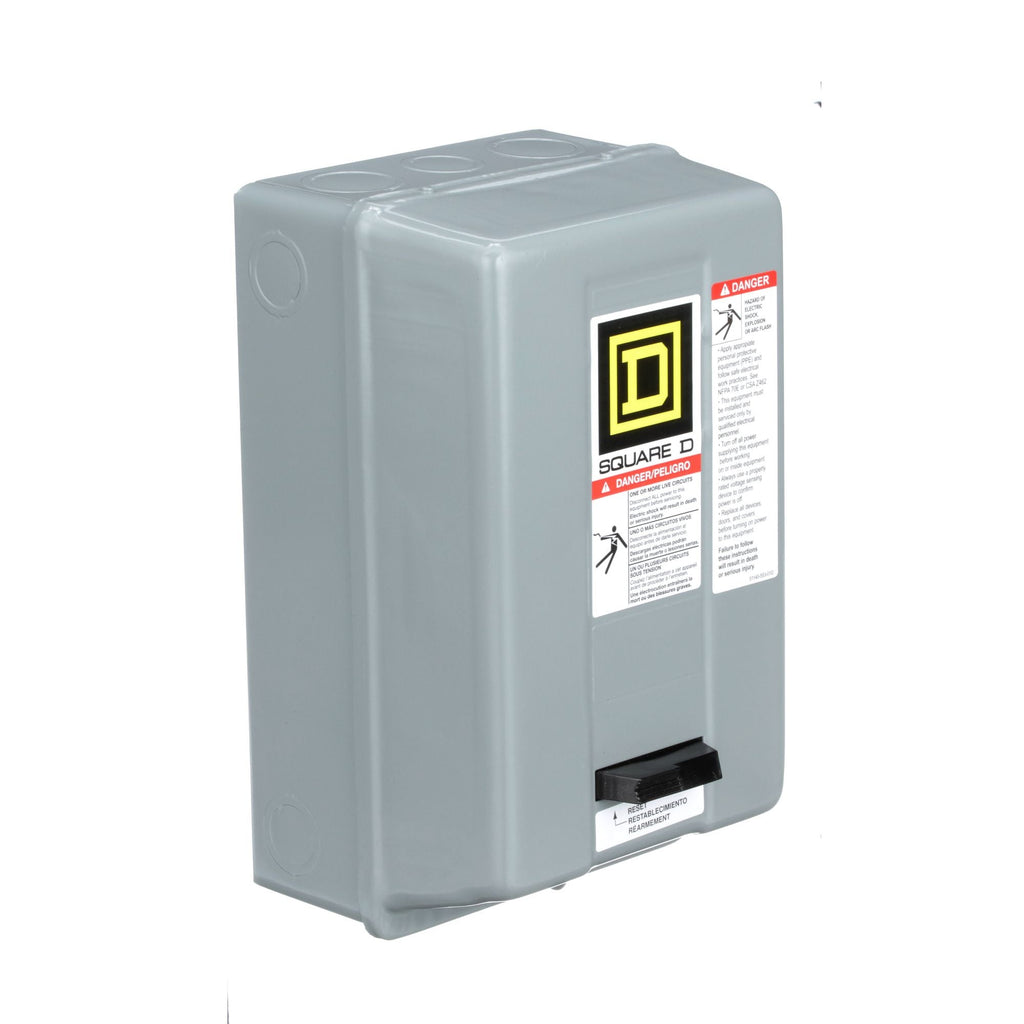

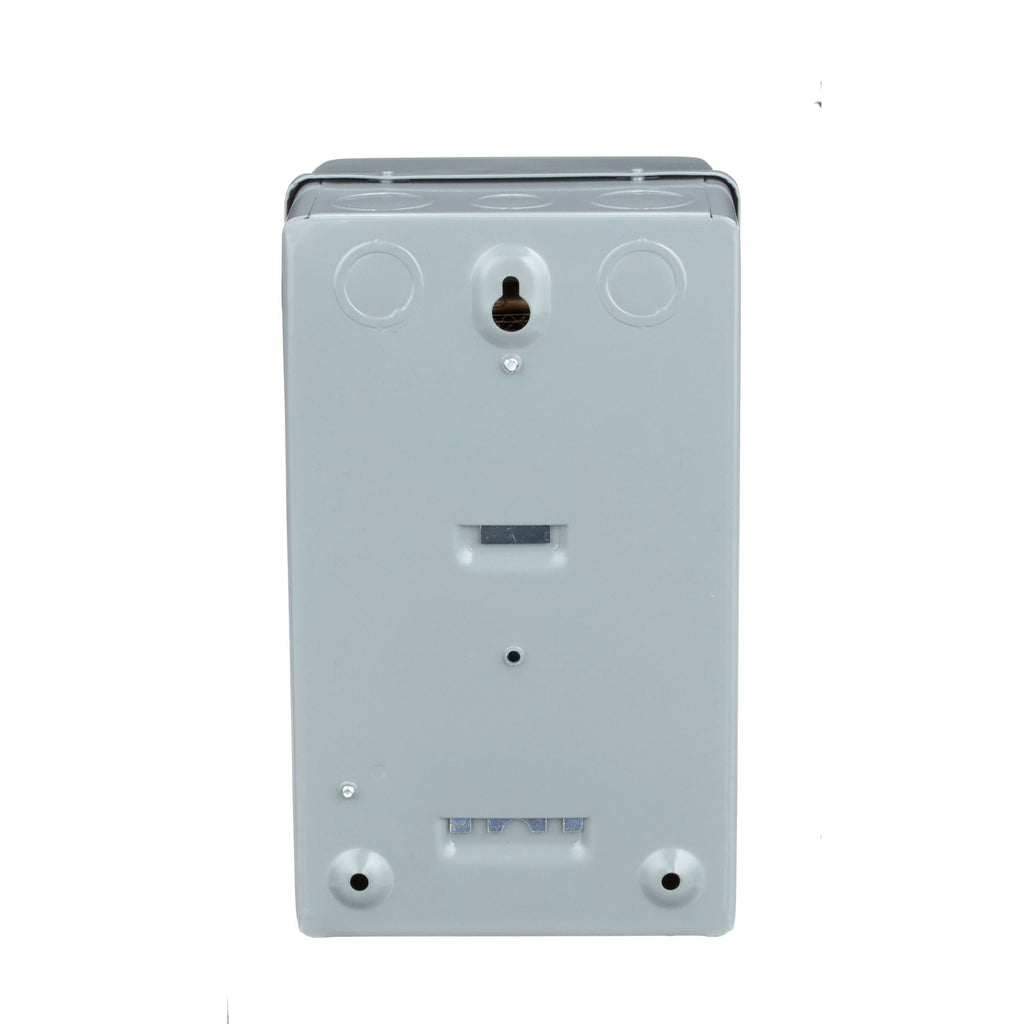

8536SAG12V02H30S is a Square D Type S motor starter designed for full voltage starting and stopping of AC squirrel cage motors.

This 3-pole, non-reversing motor starter features a 9 ampere rating with a 120 VAC coil voltage suitable for 50/60 Hz operation. It is built to NEMA Size 00 standards with a NEMA 1 general-purpose enclosure, supporting three-phase motors up to 2 HP at 460 VAC. The starter includes a separate control circuit and solid-state Motor Logic class 10/20 overload protection, providing reliable motor control and protection. It is surface mountable and rated for a maximum voltage of 600 VAC with a short-circuit current rating (SCCR) of 100 kA.

  • Manufacturer: Square D
  • Part Number: 8536SAG12V02H30S
  • Type: Type S Non-Reversing Motor Starter
  • Amperage: 9 Amps
  • Poles: 3
  • Coil Voltage: 110 VAC 50 Hz / 120 VAC 60 Hz
  • NEMA Size: 00
  • Enclosure: NEMA 1 General Purpose
  • Maximum Voltage Rating: 600 VAC
  • Phase: 3-Phase
  • Horsepower Ratings: 1.5 HP @ 220-230 VAC, 2 HP @ 460-575 VAC
  • Overload Type: Solid State Motor Logic Class 10/20
  • Short-Circuit Current Rating (SCCR): 100 kA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

Non-Reversing


Specifications

  • Part Number: 8536SAG12V02H30S
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Motor Control
  • Item Subcategory : Motor Starter
  • Family : Class 8536
  • Type : SAG
  • Voltage : 600
  • Amperage : 9 Amp
  • Phase : 3
  • Poles : 3
  • Horse Power : HP @ 3 Phase - 208V 1 1/2 hp HP @ 3 Phase - 240V 1 1/2 hp HP @ 3 Phase - 480V 2 hp
  • Configuration : Nonreversing
  • Aux Contacts : Not Applicable
  • Coil Voltage Maximum : 120 VAC
  • Coil Voltage Minimum : 110
  • Nema Starter Size : 0

Product Data

  • UPC : 785901752202
  • GTIN : 00785901752202
  • Country of Origin : Mexico
  • Dimensions : 10.00 in (254.00 mm) x 6.00 in (152.40 mm) x 5.56 in (141.22 mm) (Height x Width x Depth)
  • Weight : 7.35
  • Certification : CSA, UL Listed
