8536SAG11V02S - Square D 9A 2-Pole NEMA 00 Motor Starter 120V Coil 1 HP 230V AC Non-Reversing

8536SAG11V02S

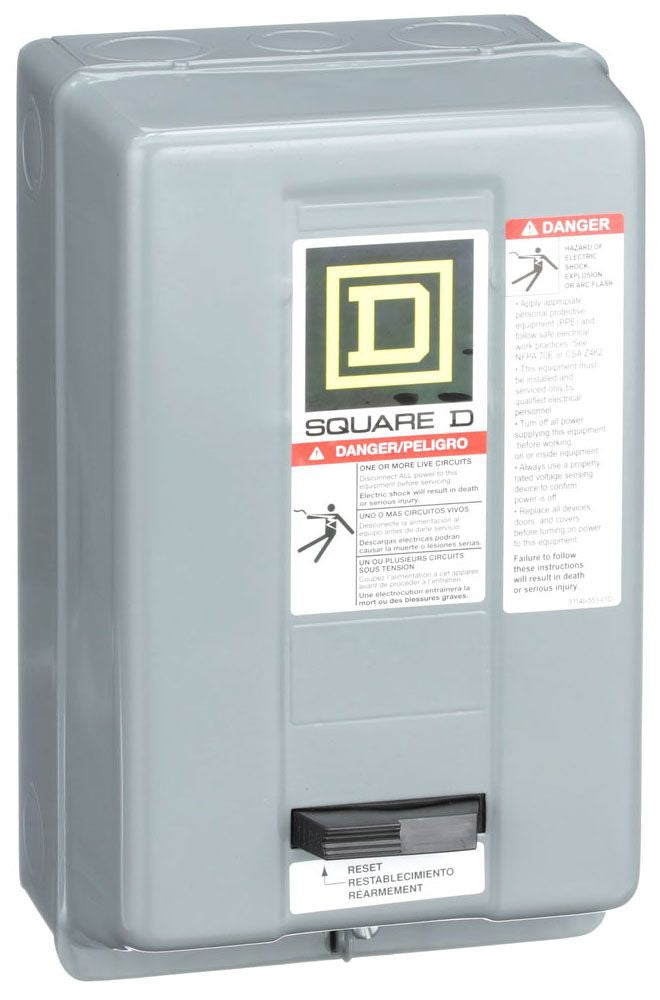

8536SAG11V02S is a Square D NEMA 00 size, 2-pole, non-reversing motor starter with a 9 ampere rating and 120V coil voltage.This motor starter is designed for full voltage starting and stopping of single-phase AC squirrel cage motors. It supports 0.33 HP at 115 VAC and 1 HP at 230 VAC, with a melting alloy overload and a 5 kA interrupt rating at 600 VAC. The enclosure type is NEMA 1, suitable for indoor use, and it is UL Listed and CSA Certified.

Key Specifications
• Amperage: 9 Amps
• Voltage: 120V coil, 600V max system voltage
• Poles: 2
• Mounting Type: NEMA 00 Size
• Interrupt Rating: 5 kA at 600 VAC
• Series/Frame: Type S, NEMA 00
• Trip Unit: Melting Alloy Overload
• Horsepower Ratings: 0.33 HP at 115 VAC, 1 HP at 230 VAC
• Enclosure: NEMA 1 (indoor)
• Certifications: UL Listed, CSA Certified
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

Non-Reversing




Specifications

• Part Number: 8536SAG11V02S
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Voltage : 600
• Amperage : 9 Amp
• Phase : 1
• Poles : 2
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LIT - Long-Time, Instantaneous and Targets
• Coil Voltage Maximum : 120 VAC
• Nema Rating : 00
• Nema Starter Size : 0
• Protection : Solid State



Product Data

• UPC : 785901018711
• GTIN : 00785901018711
• Country of Origin : Mexico
• Dimensions : 10.00 in (254.00 mm) x 6.00 in (152.40 mm) x 5.56 in (141.22 mm) (Height x Width x Depth)
• Weight : 7.12 lb
• Certification : UL Listed; CSA; NEMA
