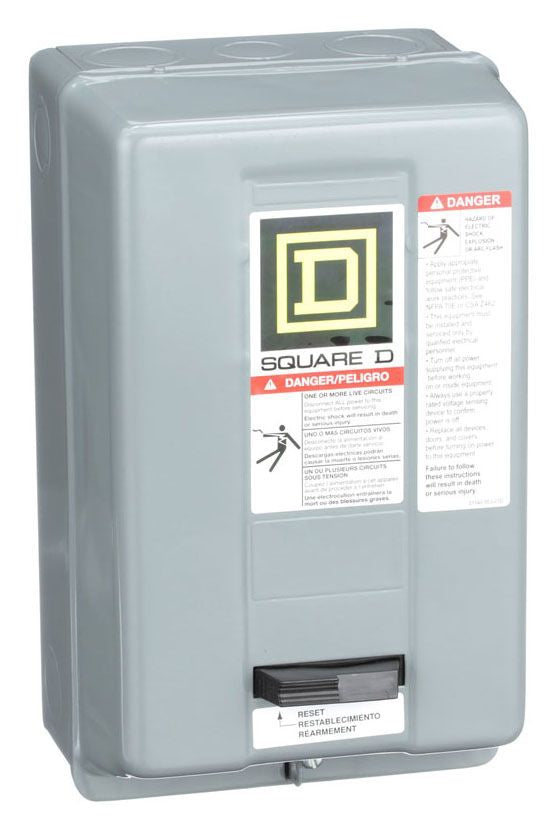

8536SAG11V02 - Square D 9 Amp 120V Coil 2-Pole NEMA Size 00 Motor Starter Non-Reversing NEMA 1 Enclosure

8536SAG11V02

8536SAG11V02 is a Square D NEMA Size 00 motor starter designed for full voltage starting and stopping of AC squirrel cage motors with a 120 VAC coil.This non-reversing Type S motor starter features a 9 ampere rating, 2 poles, and a NEMA 1 general-purpose enclosure. It supports single-phase motor ratings of 0.33 HP at 115 VAC and 1 HP at 230 VAC. The starter includes a melting alloy overload and is UL Listed and CSA Certified for reliable industrial and building automation applications.

• Type: NEMA, Full Voltage Non-Reversing (FVNR)
• Size: 00
• Poles: 2
• Amperage: 9 A
• Coil Voltage: 120 VAC
• Motor Ratings: 0.33 HP @ 115 VAC, 1 HP @ 230 VAC (single phase)
• Enclosure: NEMA 1
• Overload: Melting Alloy
• Certifications: UL Listed, CSA Certified
• Frame: Type S
• Interrupt Rating: 5 kA (typical for Size 00)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Non-Reversing

Specifications

• Part Number: 8536SAG11V02
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Voltage : 600
• Amperage : 9 Amp
• Phase : 1
• Poles : 2
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LIT - Long-Time, Instantaneous and Targets
• Coil Voltage Maximum : 120 VAC
• Nema Rating : 00
• Nema Starter Size : 0
• Protection : Solid State

Product Data

• UPC : 785901080374
• GTIN : 785901080374
• Country of Origin : Mexico
• Dimensions : 10.00 in (254.00 mm) x 6.00 in (152.40 mm) x 5.56 in (141.22 mm) (Height x Width x Depth)
• Weight : 7.059 lb
• Certification : CSA, UL Listed
