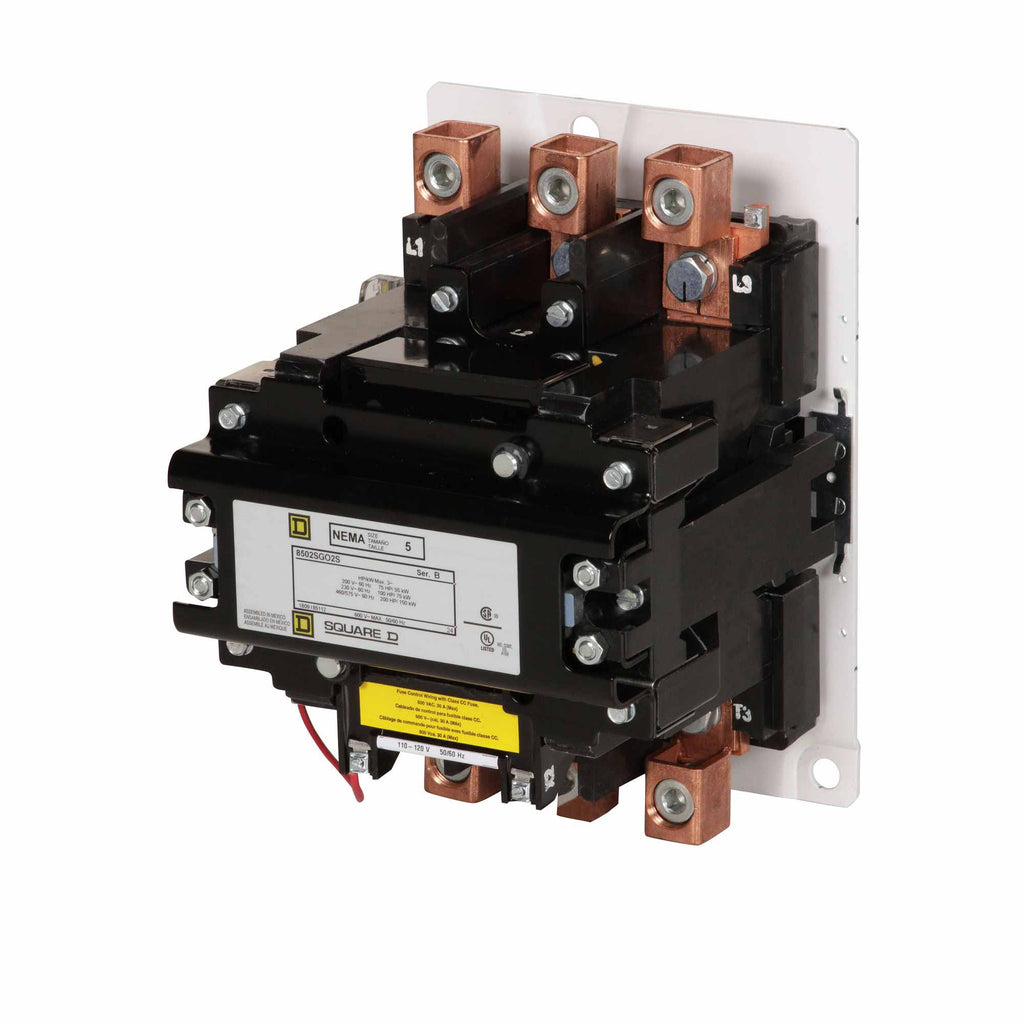

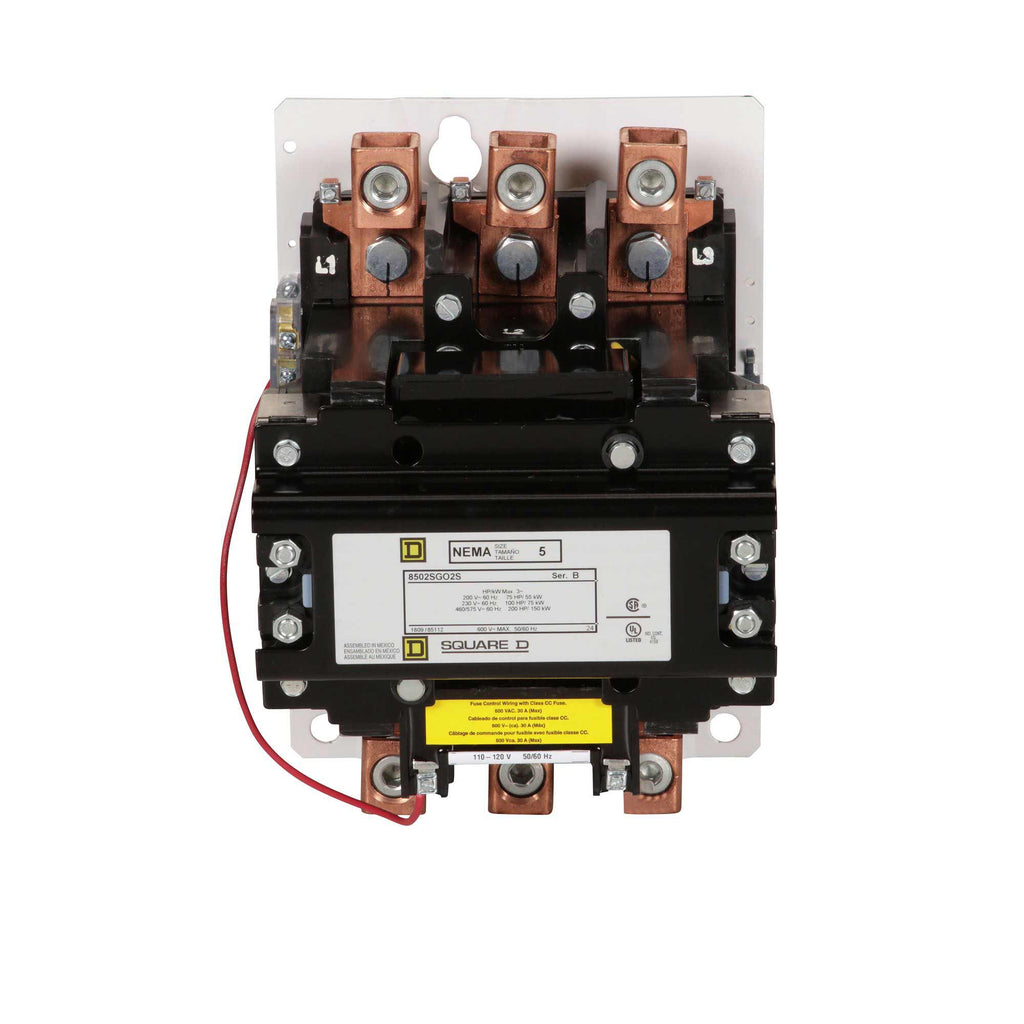

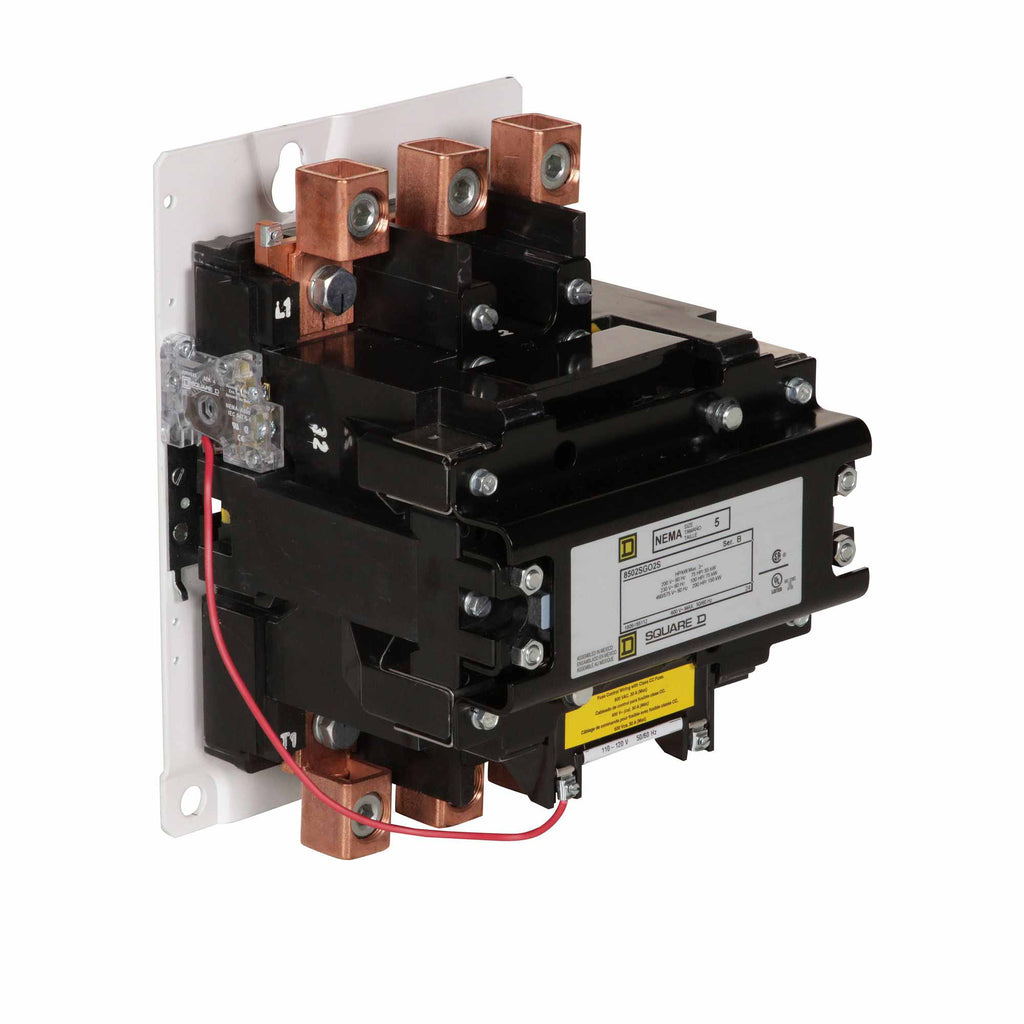

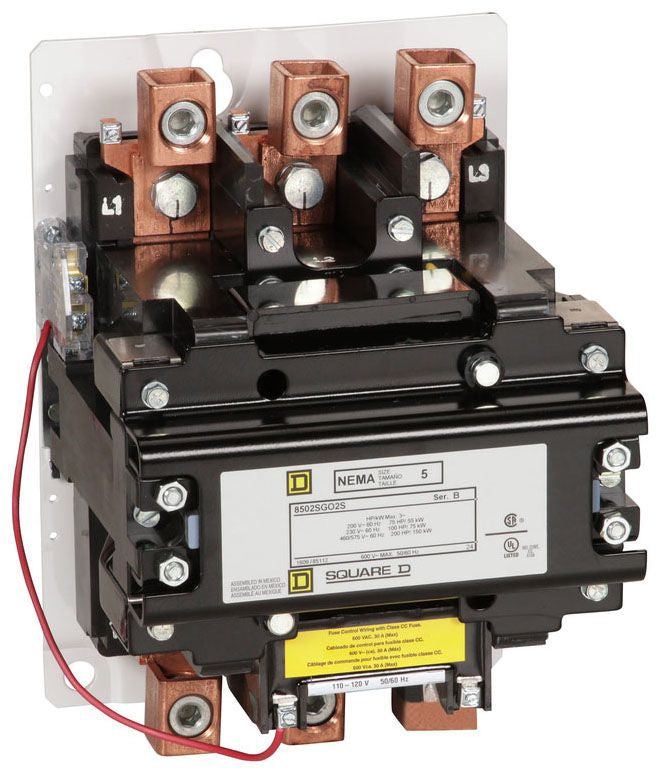

8502SGO2V02S - Square D 270A 120V 3-Pole NEMA 5 Non-Reversing Contactor

8502SGO2V02S

This NEMA Size 5 contactor features a full voltage, non-reversing design with a separate control circuit and an open enclosure. It supports surface mounting and has a 100 kiloamp interrupt rating. The coil voltage is rated at 110/120 VAC for 50/60 Hz operation. This contactor is UL, CSA, and CE approved, ensuring compliance with industry safety standards.

Key Specifications
• Amperage: 270 A
• Voltage: 110/120 VAC, 50/60 Hz coil
• Poles: 3
• Mounting Type: Surface Mount
• NEMA Size: 5
• Interrupt Rating: 100 kA SCCR
• Enclosure: Open
• Type: Non-Reversing
• Approvals: UL, CSA, CE
• Series/Frame: 8502

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Additional Information

This NEMA Type S Contactor includes a 110 VAC coil.




Specifications

• Part Number: 8502SGO2V02S
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8502
• Type : SGO
• Voltage : 600
• Amperage : 270
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 75 hp HP @ 3 Phase - 240V 100 hp HP @ 3 Phase - 480V 200 hp
• Configuration : Non-Reversing
• Aux Contacts : Auxiliary Contacts Not Included
• Coil Voltage Maximum : 120
• Full Load Amps : 270 A
• Coil Voltage Minimum : 110
• Nema Starter Size : 5
• Frequency : 50/60 Hz



Product Data

• UPC : 785901851127
• GTIN : 00785901851127
• Country of Origin : Mexico
• Dimensions : 12.31 in (312.67 mm) x 8.67 in (220.22 mm) x 8.75 in (222.25 mm) (Height x Width x Depth)
• Weight : 46.251
• Certification : CSA, UL E78351 CCN NLDX
