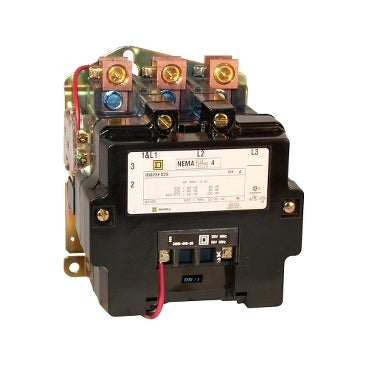

8502SFO2V08 - Square D 135A 208VAC 3-Pole NEMA Size 4 Non-Reversing Contactor Open Enclosure

8502SFO2V08

This contactor features a NEMA Size 4 frame, supports up to 600 VAC system voltage, and is rated for 135 amps continuous current. It is designed with an open enclosure and screw clamp terminals for surface mounting. The device is suitable for 3-phase power systems and is not equipped with auxiliary contacts. It meets industry standards for reliable motor control and switching.

Key Specifications
• Amperage: 135A continuous
• Coil Voltage: 208 VAC, 60 Hz
• Number of Poles: 3
• Mounting Type: Surface mount
• Enclosure Type: Open
• NEMA Size: 4
• System Voltage Rating: Up to 600 VAC
• Type: Non-reversing magnetic contactor
• Electrical Connection: Screw clamp terminals
• Phase: 3-phase
• Trip Unit: Not applicable (magnetic contactor)
• Certifications: Industry standard compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Additional Information

This NEMA Type S Contactor includes a 208 VAC coil.




Specifications

• Part Number: 8502SFO2V08
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8502
• Type : SFO
• Voltage : 600
• Amperage : 135
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 40 hp HP @ 3 Phase - 240V 50 hp HP @ 3 Phase - 480V 100 hp
• Configuration : Non-Reversing
• Aux Contacts : Auxiliary Contacts Not Included
• Coil Voltage Maximum : 208
• Full Load Amps : 135 A
• Nema Starter Size : 4
• Frequency : 60 Hz



Product Data

• UPC : 78590186188
• GTIN : 00785901861881
• Country of Origin : Mexico
• Dimensions : 8.19 in (208.03 mm) x 6.00 in (152.40 mm) x 6.50 in (165.10 mm) (Height x Width x Depth)
• Weight : 19.822
• Certification : CSA, UL E78351 CCN NLDX
