Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description
8502SEO2V06

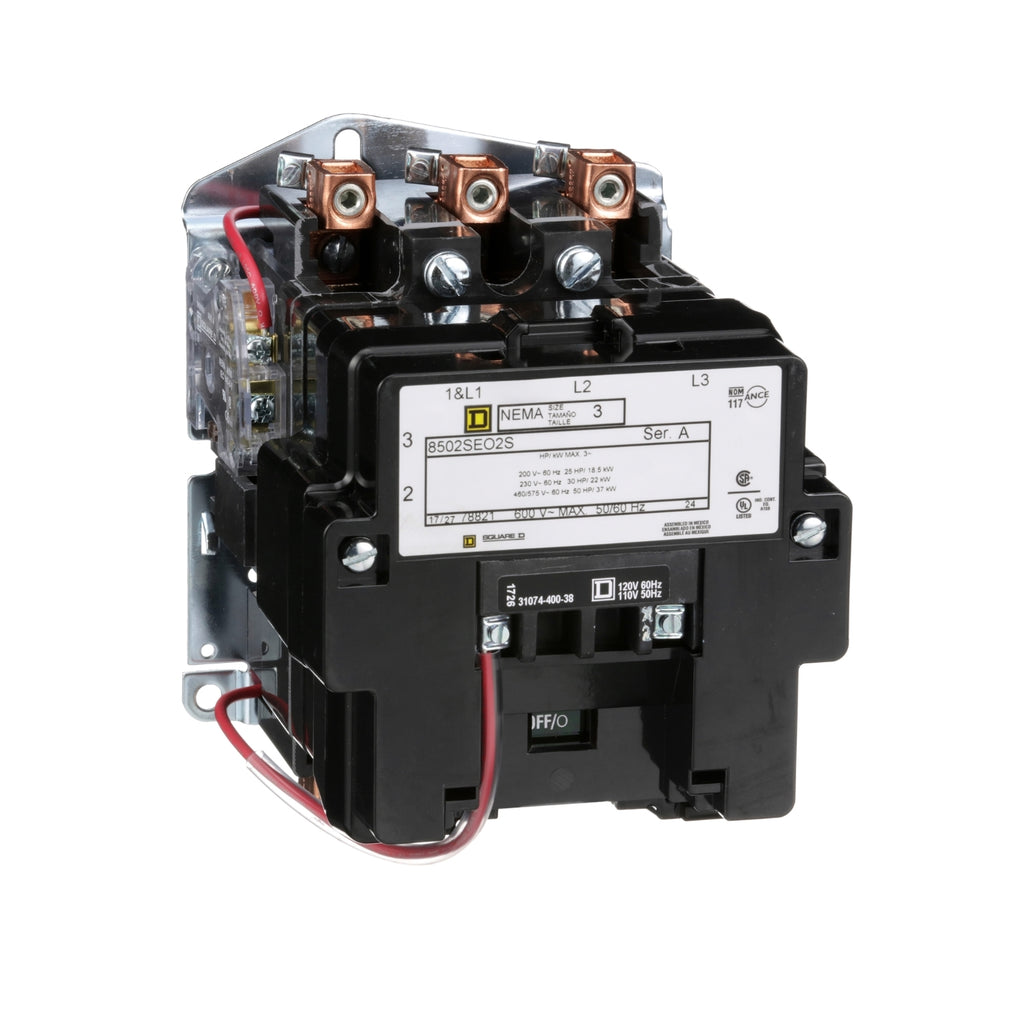

8502SEO2V06 is a Square D NEMA Size 3 non-reversing magnetic contactor designed for reliable switching of motors, transformers, capacitors, and heating loads in industrial and commercial applications.This contactor features a robust open-style enclosure, 3-pole configuration, and a 90 ampere current rating. It is suitable for use with 440 VAC at 50 Hz or 480 VAC at 60 Hz control circuits, making it ideal for a wide range of motor control needs where overload protection is provided separately.
- Manufacturer: Square D
- Series: 8502
- NEMA Size: 3
- Amperage: 90 A
- Poles: 3
- Coil Voltage: 440 VAC at 50 Hz / 480 VAC at 60 Hz
- Enclosure Type: Open
- Mounting Type: Screw Clamp
- Application: Motor, transformer, capacitor, and heating load switching
- Frequency: 50/60 Hz
- Operating Temperature: 0 to 40 deg C
- Wattage: 18.5 kW at 200 V / 22 kW at 230 V / 37 kW at 460/575 V
Specifications
- Part Number: 8502SEO2V06
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8502
- Voltage : 600
- Amperage : 90
- Phase : 3
- Coil Voltage Maximum : 480
- Coil Voltage Minimum : 440
Product Data
- UPC : 785901788201
- GTIN : 00785901788201
- Country of Origin : Mexico
- Dimensions : 7.09 in (180.09 mm) x 5.47 in (138.94 mm) x 6.50 in (165.10 mm) (Height x Width x Depth)
- Weight : 13.199
